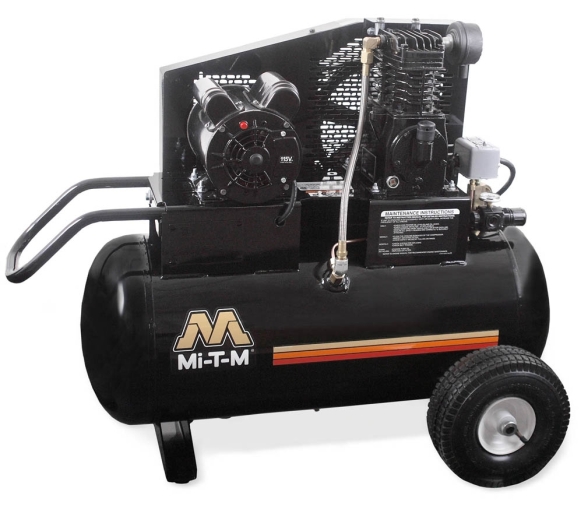

Mi-T-M 20 Gal Electric Two Stage Air Com



AM1-PE15-20M air compressor

Click image to enlarge


1 year motor warranty csa certified
2 year pump warranty nema 5-15p 15 amp plug



View Product Sheet

  • Compressor Pump: Quality cast iron single stage compressor, Splash lubricated cast iron crankcase to extend the hours of performance, Cast iron head for heat dissipation, Large canister intake filter, Stainless-steel braided discharge hose
  • Motor: Industrial UL-listed electric motor, Auto start/stop (continuous run optional), Thermal overload motor protection
  • Frame: Powder coated ASME coded 20-gallon receiver tank, 3/16-inch base plate to reduce vibration, 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts, Convenient lifting handle, Two pneumatic tires with tubes and steel hubs
  • Components: Regulator and two gauges for tank and outlet pressure, 10-inch fly wheel for extra cooling and longer life, Manual drain valves for proper maintenance, Belt tightening system pulls engine straight to ensure constant belt alignment, Industrial grade pressure switch
Specifications
Model AM1-PE15-20M
CFM @ 100 PSI 6.5
HP/Motor 1.5/120V, 13.2A Electric
Plug Type NEMA 5-15P
Net Weight 196 lbs.
Shipping Weight 265 lbs.
Length 40 in.
Width 24 in.
Height 32 in.

AM1-PE15-20M
Mfg. item #: AM1-PE15-20M
MTMAM1-PE15-20M
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$1,001.69
