Mi-T-M 8 Gal Gasoline Single Stage Air C

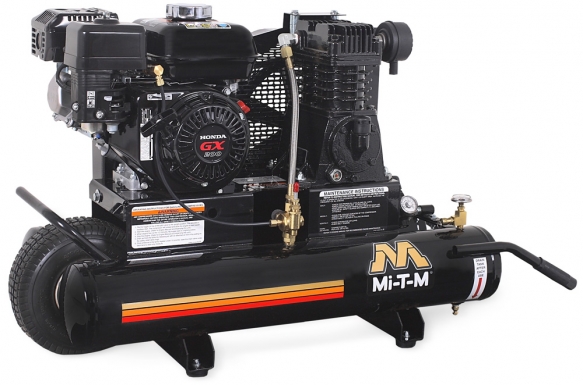

AM1-PH65-08M air compressor

Click image to enlarge







View Product Sheet

  • Compressor Pump: Quality cast iron single stage compressor, Splash lubricated cast iron crankcase to extend the hours of performance, Cast iron head for heat dissipation, Stainless-steel braided discharge hose, Large canister intake filter
  • Engine: Industrial Honda OHV engine, Pneumatic idle control to conserve fuel
  • Frame: Powder coated 8-gallon twin tank receivers, 3/16-inch base plate to reduce vibration, 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts, Convenient lifting handles, Pneumatic tire with tube and steel hub, Heavy-duty axle
  • Components: Regulator and two gauges for tank and outlet pressure, Manual drain valves for proper maintenance, Belt tightening system pulls engine straight to ensure constant belt alignment, 12-inch fly wheel for extra cooling and longer life, Quality pilot valve unloader
Specifications
Model AM1-PH65-08M
CFM @ 100 PSI 13.1
Displacement/Engine 196cc Honda OHV
Net Weight 175 lbs.
Shipping Weight 200 lbs.
Length 44.5 in.
Width 18.5 in.
Height 27 in.

AM1-PH65-08M
AIR COMPRESSOR
Mfg. item #: AM1-PH65-08M
MTMAM1-PH65-08M
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,209.17
