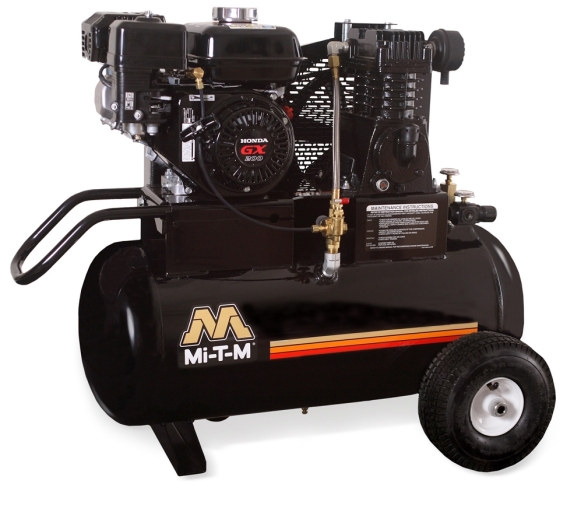

Mi-T-M 20 Gal Gasoline Single Stage Air


AM1-PH65-20M air compressor

Click image to enlarge

2 year pump warranty
3 engine warranty


View Product Sheet

  • Compressor Pump: Quality cast iron single stage compressor, Splash lubricated cast iron crankcase to extend the hours of performance, Cast iron head for heat dissipation, Large canister intake filter, Stainless-steel braided discharge hose
  • Engine: Industrial Honda OHV engine, Pneumatic idle control to conserve fuel
  • Frame: Powder coated ASME coded 20-gallon receiver tank, 3/16-inch base plate to reduce vibration, 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts, Convenient lifting handle, Two pneumatic tires with tubes and steel hubs
  • Components: Regulator and two gauges for tank and outlet pressure, 12-inch fly wheel for extra cooling and longer life, Manual drain valves for proper maintenance, Belt tightening system pulls engine straight to ensure constant belt alignment, Quality pilot valve unloader
Model AM1-PH65-20M
CFM @ 100 PSI 13.1
Displacement/Engine 196cc Honda OHV
Net Weight 212 lbs.
Shipping Weight 272 lbs.
Length 37 in.
Width 23.5 in.
Height 33 in.

Mfg. item #: AM1-PH65-20M
Call for freight quote on this item or we will confirm freight charges before shipping.1
