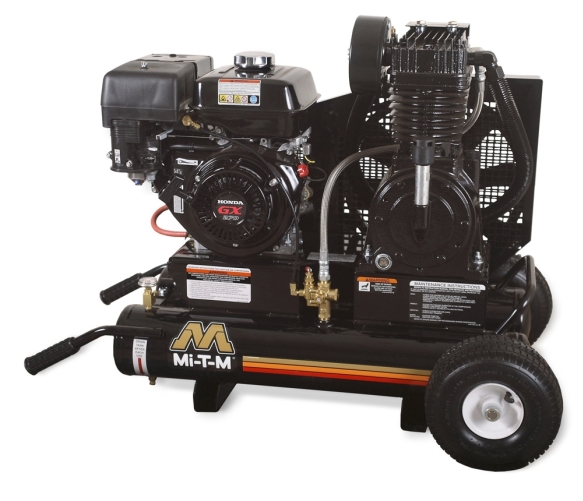

Mi-T-M 8 Gal Gasoline Two Stage Air Comp


AM2-PH09-08M air compressor

Click image to enlarge

2 year pump exhchange warranty
3 year engine warranty


View Product Sheet

  • Compressor Pump: Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure, Stainless-steel braided discharge hose, Splash lubricated cast iron crankcase to extend the hours of performance, Cast iron head and cylinder for extended durability, Large canister intake filter
  • Engine: Industrial Honda OHV engine, Pneumatic idle control to conserve fuel, Engine oil drain
  • Frame: Powder coated 8-gallon twin tank receivers, 3/16-inch base plate to reduce vibration, 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts, Convenient lifting handles, Two pneumatic tires with tubes and steel hubs
  • Components: Regulator and two gauges for tank and outlet pressure, Manual drain valves for proper maintenance, 16.5-inch flywheel for extra cooling and longer life, Quality pilot valve unloader, Belt tightening system pulls engine straight to ensure constant belt alignment
Model AM2-PH09-08M
CFM @ 100 PSI 17.2
Displacement/Engine 270cc Honda OHV
Net Weight 260 lbs.
Shipping Weight 330 lbs.
Length 44 in.
Width 26 in.
Height 31 in.

Mfg. item #: AM2-PH09-08M
Call for freight quote on this item or we will confirm freight charges before shipping.1
