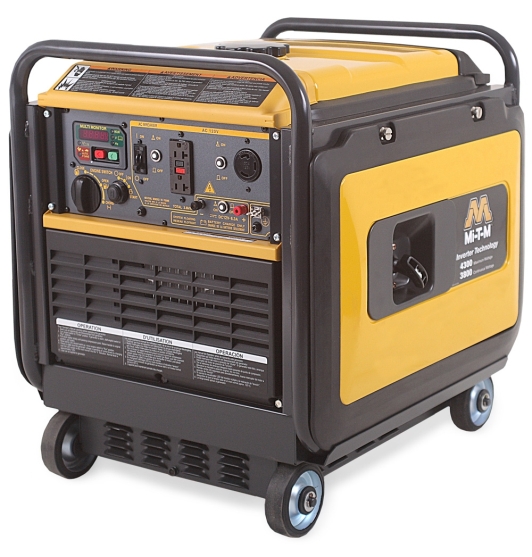

Mi-T-M Inverter Generator 4300 watts



Click image to enlarge


View Product Sheet

  • Inverter Technology: Reduces size, weight, noise and fuel consumption, Produces commercial quality AC power for sensitive electronic equipment
  • Engine: Subaru OHC low-oil shutdown engine with electric start (battery not included), Idle control
  • Alternator: Brushless 120V alternator, Total harmonic distortion (THD) less than 3 percent
  • Frame: Double-wall acoustical housing dampening panel and resin panel reduces both high and low frequency noise
  • Components: Special vibration control and low-tone mufflers further reduce noise, Battery charging, Fuel shutoff valve, Sound reducing materials are highly fire-resistant, Voltmeter/hour meter
  • Miscellaneous: USDA/USFS-approved spark arrestors, Circuit breaker protected
  • RV Application Advantage: Will run an air conditioner unit (15,000-BTU), refrigerator and microwave plus interior lights (Based on tests conducted on a 2005 5th-wheel camper. Test results are available. Individual test results could vary depending on condition and efficiency of appliance.)
  • Inverter generator ratings represent no-load sound levels. Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.
  • *Models are compliant in 49 states. Cannot be sold in California.

Specifications
Model GEN-4300-IMS0
Max. AC Output 4300 watts
Rated AC Output 3800 watts
Displacement/Engine 265cc Subaru OHC
Max. Amps (120V) 35.8
Frequency/Voltage 60Hz/120V
Cont. Amps (120V) 31.7
Receptacles 120V, 20A GFCI duplex - 120V, 30A twist lock
Main Circuit Breaker Electronic circuit protection
Rated Speed 3600 RPM
Decibel Rating 62.0
Fuel Capacity 4.2 gallon
Run Time (at full load) 5.6 hours
Net Weight 162 lbs.
Shipping Weight 174 lbs.
Length 21 in.
Width 18.9 in.
Height 22.9 in.
Accessories
s-h alt 32-0915 RV Generator Adapter



GEN-4300-{01
IMS0}GENERATORS - 4300 WATT MAX, 9
Mfg. item #: GEN-4300-{01
MTMGEN-4300-{01
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

117
32-0915
ADAPTER-RV GENERATOR 125V
Mfg. item #: 32-0915
MTM32-0915
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$126.29
