Technical Sales 1–800–458–3687

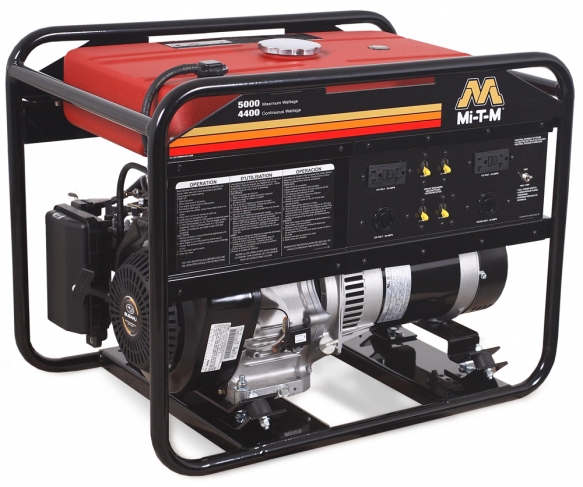

Mi-T-M Gasoline Generator 5000 watts



Click image to enlarge


View Product Sheet

  • Engine: Subaru OHC low-oil shutdown engine
  • Alternator: Brushless 120V/240V alternator, Total harmonic distortion (THD) less than 5 percent, 100 percent copper windings
  • Frame: Low profile, compact design, Angled isolator design features four neoprene isolators, Heavy-duty wraparound frame with 1-inch powder coated steel tubing
  • Components: Easy-to-read fuel gauge, Fuel shutoff valve, Full power switch, Fuel tanks are powder coated outside, zinc-plated inside to prevent rusting, Heavy-duty industrial air cleaners hold up under extreme conditions, Large low-tone mufflers to reduce noise to lowest level possible, Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles
  • Miscellaneous: USDA/USFS-approved spark arrestors, Circuit breaker protected
  • Noise level tested at seven meters (75 percent load). Rating represents minimum noise level rating.
Specifications
Model GEN-5000-0MS0
Max. AC Output 5000 watts
Rated AC Output 4400 watts
Displacement/Engine 265cc Subaru OHC
Frequency/Voltage 60Hz/120V/240V
Max. Amps (120V/240V) 41.7/20.8
Cont. Amps (120V/240V) 36.7/18.3
Receptacles (2) 120V, 20A GFCI duplex - 120V/240V, 20A twist lock - 120V, 30A twist lock
Main Circuit Breaker (2) 20A toggle circuit breaker, single pole - 20A toggle circuit breaker, double pole - 30A toggle circuit breaker, single pole
Rated Speed 3600 RPM
Decibel Rating 73.8
Fuel Capacity 5.7 gallon
Run Time (at full load) 6.8 hours
Net Weight 176 lbs.
Shipping Weight 198 lbs.
Length 29 in.
Width 19.75 in.
Height 22.5 in.
32-0915 RV generator adapter
AW-5090-0003 Lifting hook
AW-5740-0009 Wheel kit
GX-0004 Hour meter
TX-1002-W Puncture-proof tires
s-h alt Lifting Hooks
s-h alt RV Generator Adapter 32-0915
s-h alt Wheel Kits



GEN-5000-{00
0MS0}GENERATOR-5000 WATT MAX, 9.0 H
Mfg. item #: GEN-5000-{00
MTMGEN-5000-{00
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

117
32-0915
ADAPTER-RV GENERATOR 125V
Mfg. item #: 32-0915
MTM32-0915
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$126.29

102
AW-5090-0003
LIFTING HOOK - GEN MED
Mfg. item #: AW-5090-0003
MTMAW-5090-0003
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$84.90

102
AW-5740-0009
KIT - WHEEL GEN MED
Mfg. item #: AW-5740-0009
MTMAW-5740-0009
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$255.38

102
GX-0004
OPTION HOUR METER
Mfg. item #: GX-0004
MTMGX-0004
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$49.33

102
TX-1002-W
Mfg. item #: TX-1002-W
MTMTX-1002-W
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

117
