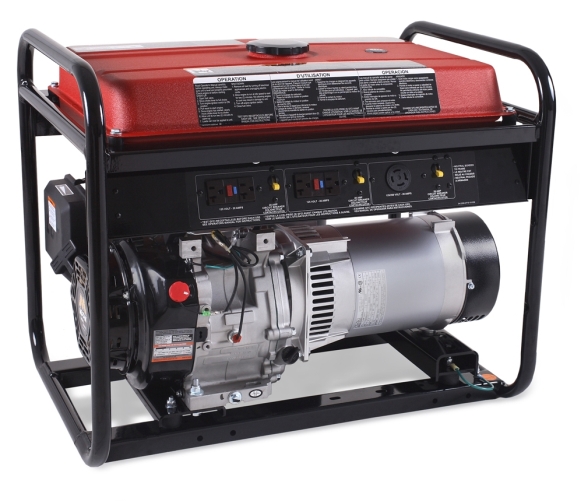

Mi-T-M ChoreMaster Generator 5500 Watts


Click image to enlarge

View Product Sheet

  • Engine: Mi-T-M OHV engine low-oil shutdown engine, Recoil starting system
  • Alternator: Brushless 120V/240V alternator, Total harmonic distortion (THD) less than 5 percent, 100 percent copper windings
  • Frame: Low profile, compact design, Heavy-duty wraparound frame with 1-inch powder coated steel tubing
  • Components: Fuel shutoff valve, Fuel gauge, Fuel tanks are powder coated outside, zinc-plated inside to prevent rusting, Heavy-duty industrial air cleaners hold up under extreme conditions, Large low-tone mufflers to reduce noise to lowest level possible, Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles
  • Miscellaneous: USDA/USFS-approved spark arrestors, Circuit breaker protected
  • *Compliant in 49 states. Cannot be sold in California.
Model GEN-5500-0MM0
Max. AC Output 5500 watts
Rated AC Output 4800 watts
Displacement/Engine 291cc Mi-T-M OHV
Frequency/Voltage 60Hz/120V/240V
Max. Amps (120V/240V) 45.8/22.9
Cont. Amps (120V/240V) 40.0/20.0
Receptacles (2) 120V, 20A GFC duplex - 120V/240V, 20A twist lock
Main Circuit Breaker (2) 20A toggle circuit breaker, single pole - 20A toggle circuit breaker, double pole
Rated Speed 3600 RPM
Fuel Capacity 5.7 gallons
Run Time (at full load) 6.8 hours
Net Weight 163 lbs.
Shipping Weight 186 lbs.
Length 27.5 in.
Width 19.75 in.
Height 22.5 in.
AW-5090-0001 Lifting hook
AW-5740-0012 Wheel kit

Mfg. item #: GEN-5500-{00
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

Call for price. MTMAW-5090-0001
Call for price. MTMAW-5740-0012
