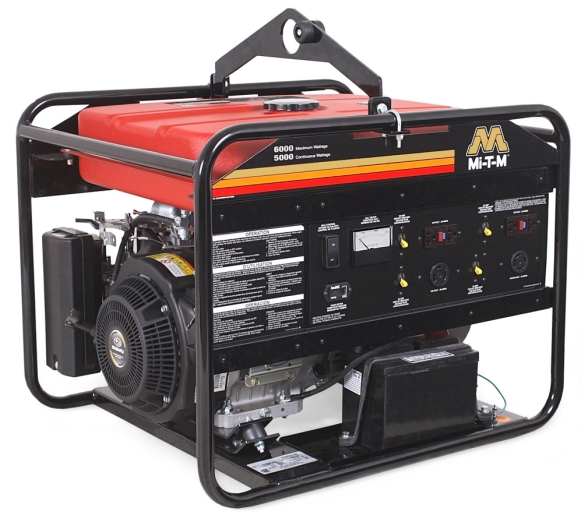

Mi-T-M Gasoline Generator 6000 watts



Click image to enlarge


View Product Sheet

  • Engine: Subaru OHC low-oil shutdown engine with electric start (battery included), Idle control
  • Alternator: Brushless 120V/240V alternator, Total harmonic distortion (THD) less than 5 percent, 100 percent copper windings
  • Frame: Low profile, compact design, Heavy-duty wraparound frame with 1-inch powder coated steel tubing, Angled isolator design features four neoprene isolators
  • Components: Easy-to-read fuel gauge, Fuel shutoff valve, Voltmeter/hour meter, Fuel tanks are powder coated outside, zinc-plated inside to prevent rusting, Heavy-duty industrial air cleaners hold up under extreme conditions, Large low-tone mufflers to reduce noise to lowest level possible, Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles
  • Miscellaneous: USDA/USFS-approved spark arrestors, Circuit breaker protected
  • Noise level tested at seven meters (75 percent load). Rating represents minimum noise level rating.
Specifications
Model GEN-6000-0MSE
Max. AC Output 6000 watts
Rated AC Output 5000 watts
Displacement/Engine 404cc Subaru OHC with electric start (battery included)
Frequency/Voltage 60Hz/120V/240V
Max. Amps (120V/240V) 50.0/25.0
Cont. Amps (120V/240V) 41.7/20.8
Receptacles (2) 120V, 20A GFCI duplex - 120V/240V, 20A twist lock - 120V, 30A twist lock
Main Circuit Breaker (2) 20A toggle circuit breaker, single pole - (2) 20A toggle circuit breaker, double pole - 30A toggle circuit breaker, single pole
Rated Speed 3600 RPM
Decibel Rating 77.4
Fuel Capacity 7.3 gallon
Run Time (at full load) 7.9 hours
Net Weight 210 lbs.
Shipping Weight 232 lbs.
Length 29 in.
Width 24.4 in.
Height 22.5 in.
32-0915 RV generator adapter
AW-5090-0004 Lifting hook
AW-5740-0010 Wheel kit
TX-1002-W Puncture-proof tires
s-h alt Lifting Hooks
s-h alt RV Generator Adapter 32-0915
s-h alt Wheel Kits



GEN-6000-{03
0MSE}GENERATOR-6000 WATT MAX, 13.5
Mfg. item #: GEN-6000-{03
MTMGEN-6000-{03
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

118
32-0915
ADAPTER-RV GENERATOR 125V
Mfg. item #: 32-0915
MTM32-0915
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$126.29

103
AW-5090-0004
LIFTING HOOK - GEN LRG
Mfg. item #: AW-5090-0004
MTMAW-5090-0004
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$86.52

103
AW-5740-0010
KIT - WHEEL GEN LG
Mfg. item #: AW-5740-0010
MTMAW-5740-0010
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$241.15

103
TX-1002-W
Mfg. item #: TX-1002-W
MTMTX-1002-W
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

118
