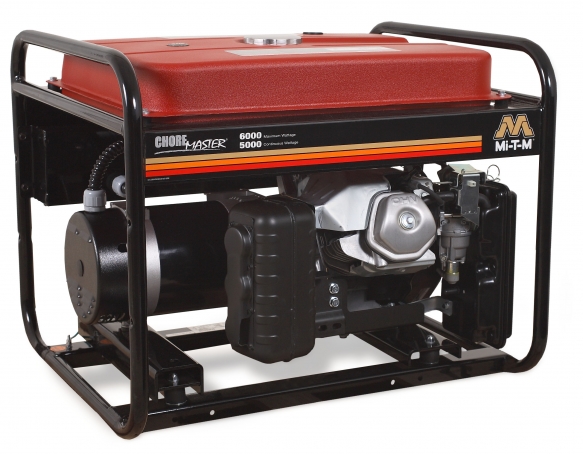

Mi-T-M ChoreMaster Generator 6000 Watts



Click image to enlarge





View Product Sheet

  • Engine: Honda OHV engine with low-oil shutdown, Recoil starting system
  • Alternator: Brushless 120V/240V alternator, Total harmonic distortion (THD) less than 5 percent, 100 percent copper windings
  • Frame: Low profile, compact design, Heavy-duty wraparound frame with 1-inch powder coated steel tubing
  • Components: Fuel shut-off valve, Fuel gauge, Fuel tanks are powder coated outside, zinc-plated inside to prevent rusting, Large low-tone muffler, Easy-access and protected control panel with magnetic circuit breakers and CFCI-protected receptacles, Heavy-duty industrial air cleaners hold up under extreme conditions
  • Miscellaneous: USDA/USFS-approved spark arrestors, Circuit breaker protected
Specifications
Model GEN-6000-SMHO
Max. AC Output 6000 watts
Rated AC Output 5500 watts
Displacement/Engine 337cc Honda OHV
Frequency/Voltage 60Hz/120V/240V
Max. Amps (120V/240V) 62.5/31.25
Cont. Amps (120V/240V) 54.2/27.1
Receptacles (2) 120V, 20 GFCI duplex 120V/240V, 20A twist lock
Main Circuit Breaker (2) 20A toggle circuit breaker, single pole 20A toggle circuit breaker, double pole
Rated Speed 3600 RPM
Fuel Capacity 7.3 gallons
Run Time (at full load) 6.9 hours
Net Weight 203 lbs.
Shipping Weight 228 lbs.
Length 28 in.
Width 24.5 in.
Height 22.25 in.
s-h alt Lifting Hooks
s-h alt Wheel Kits



Call for price. MTMGEN-6000-SMHO
