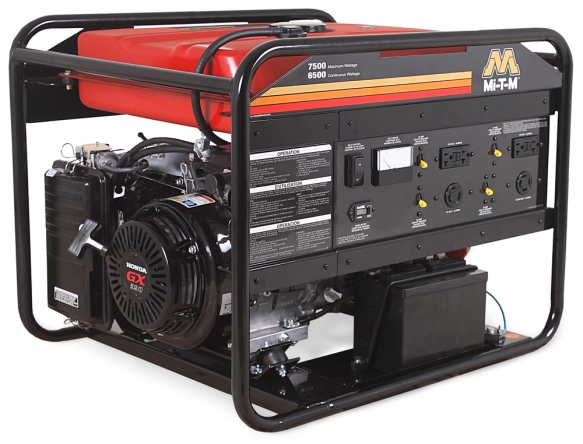

Mi-T-M Gasoline Generator 7500 watts
View Product Sheet
-
Engine: Honda OHV low-oil shutdown engine with electric start (battery included), Idle control
-
Alternator: Brushless 120V/240V alternator, Total harmonic distortion (THD) less than 5 percent, 100 percent copper windings
-
Frame: Low profile, compact design, Heavy-duty wraparound frame with 1-inch powder coated steel tubing, Angled isolator design features four neoprene
isolators
-
Components: Easy-to-read fuel gauge, Fuel shutoff valve, Voltmeter/hour meter, Fuel tanks are powder coated outside, zinc-plated inside to prevent rusting,
Heavy-duty industrial air cleaners hold up under extreme conditions, Large low-tone mufflers to reduce noise to lowest level possible, Easy-access and protected control panel with magnetic
circuit breakers and GFCI-protected receptacles
-
Miscellaneous: USDA/USFS-approved spark arrestors, Circuit breaker protected
-
Noise level tested at seven meters (75 percent load). Rating represents minimum noise level rating.
Specifications
|
Model
|
GEN-7500-0MHE
|
Max. AC Output
|
7500 watts
|
Rated AC Output
|
6500 watts
|
Displacement/Engine
|
389cc Honda OHV with electric start (battery included)
|
Frequency/Voltage
|
60Hz/120V/240V
|
Max. Amps (120V/240V)
|
62.5/31.25
|
Cont. Amps (120V/240V)
|
54.2/27.1
|
Receptacles
|
(2) 120V, 20A GFCI duplex - 120V, 30A twist lock - 120V/240V, 30A twist lock
|
Main Circuit Breaker
|
(2) 20A toggle circuit breaker, single pole - 30A toggle circuit breaker, single pole - 30A toggle circuit breaker, double pole
|
Rated Speed
|
3600 RPM
|
Decibel Rating
|
80.0
|
Fuel Capacity
|
7.3 gallon
|
Run Time (at full load)
|
6.9 hours
|
Net Weight
|
233 lbs.
|
Shipping Weight
|
255 lbs.
|
Length
|
29 in.
|
Width
|
24.4 in.
|
Height
|
22.5 in.
|
