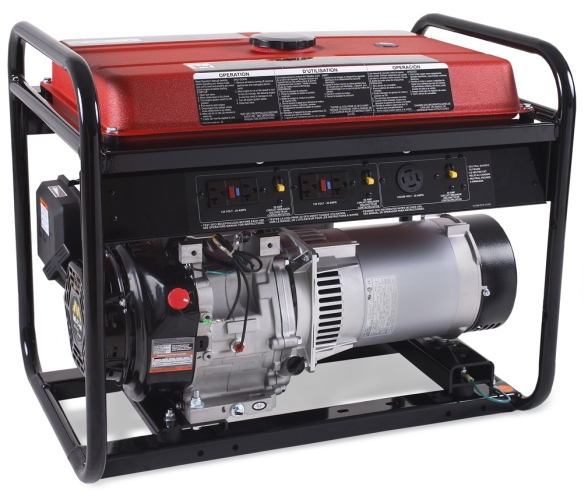

Mi-T-M ChoreMaster Generator 7500 Watts



Click image to enlarge


View Product Sheet

  • Engine: Mi-T-M OHV engine low-oil shutdown engine, Recoil starting system
  • Alternator: Brushless 120V/240V alternator, Total harmonic distortion (THD) less than 5 percent, 100 percent copper windings
  • Frame: Low profile, compact design, Heavy-duty wraparound frame with 1-inch powder coated steel tubing
  • Components: Fuel shutoff valve · Fuel gauge, Fuel tanks are powder coated outside, zinc-plated inside to prevent rusting, Heavy-duty industrial air cleaners hold up under extreme conditions, Large low-tone mufflers to reduce noise to lowest level possible, Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles
  • Miscellaneous: USDA/USFS-approved spark arrestors, Circuit breaker protected
  • *Compliant in 49 states. Cannot be sold in California.
Specifications
Model GEN-7500-0MM0
Max. AC Output 7500 watts
Rated AC Output 6500 watts
Displacement/Engine 414cc Mi-T-M OHV
Frequency/Voltage 60Hz/120V/240V
Max. Amps (120V/240V) 62.5/31.25
Cont. Amps (120V/240V) 54.2/27.1
Receptacles (2) 120V, 20A GFCI duplex - 120V/240V, 30A twist lock
Main Circuit Breaker (2) 20A toggle circuit breaker, single pole - 30A toggle circuit breaker, double pole
Rated Speed 3600 RPM
Fuel Capacity 7.3 gallons
Run Time (at full load) 6.9 hours
Net Weight 203 lbs.
Shipping Weight 228 lbs.
Length 28 in.
Width 24.5 in.
Height 22.25 in.
AW-5090-0002 Lifting hook
AW-5740-0013 Wheel kit

AW-5090-0002
LIFTING HOOK - FITS GEN-6000-SMH0
Mfg. item #: AW-5090-0002
MTMAW-5090-0002
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

56
AW-5740-0013
WHEEL KIT - FITS GEN-6000-SMH0
Mfg. item #: AW-5740-0013
MTMAW-5740-0013
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

56
