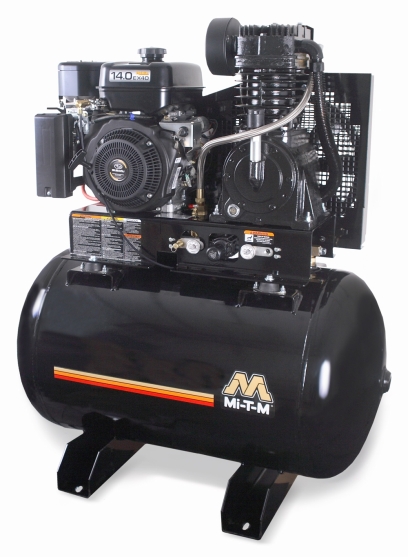

Mi-T-M ABS Series 80-Gal Simplex Horizon


Click image to enlarge



  • Compressor Pump: Quality two stage cast iron pump, Splash lubricated cast iron crankcase to extend the hours of performance, Cast iron head for heat dissipation, Oil lever sight indicator, Steel braided supply line for easy maintenance - wont fracture with vibration
  • Engine: Industrial gasoline engine, Electric start standard (battery and cables not included), Pneumatic idle control
  • Frame: Durable, professional, high gloss powder coat finish, ASME coded 80-gallon receiver tank, 7-gauge base plate to reduce vibration, 14-gauge powder coated totally enclosed belt guard, Tabbed design offers flexible installation, smooth operation and reduces vibration stress on tank
  • Components: 16.5-inch flywheel for extra cooling and longer life, ASME safety valves, Regulator and two gauges for tank and outlet pressure, Tank shut-off valve, Intake filter/silencer, Belt tightening system pulls engine straight to ensure constant belt alignment
Models Available:
ABS-13H-80H 389cc Honda OHV engine
ABS-14S-80H 404cc Subaru OHC engine
CFM @ 175 PSI 29.0
Pump RPM 1025
Bolt Down Dimensions (LxW) 20.75 x 23.5 inches
Net Weight 496 lbs.
Shipping Weight 560 lbs.
Length 52 in.
Width 26.5 in.
Height 53 in.
Air Compressor Accessories
replacement pumps Replacement Pumps


Mfg. item #: ABS-13H-80H
lease to own for as little as:$57 per month!
Flat Truck Shipping Rate of $200.00 Anywhere within the Lower 48 States34

Mfg. item #: ABS-14S-80H
lease to own for as little as:$53 per month!
Flat Truck Shipping Rate of $200.00 Anywhere within the Lower 48 States34
