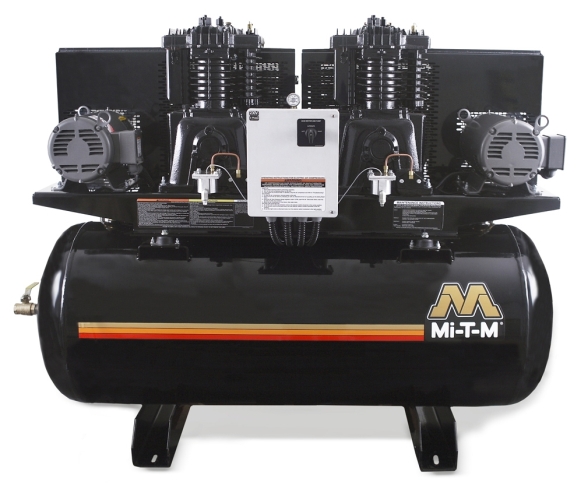

Mi-T-M ACD Series 120Gal 5HP Duplex Hori



Click image to enlarge







  • Compressor Pumps: Two quality two stage cast iron pumps, Splash lubricated cast iron crankcase to extend the hours of performance, Cast iron head for heat dissipation, Oil lever sight indicator, Steel braided supply line for easy maintenance - wont fracture with vibration, Flexible pump drain hose
  • Motors: Two low RPM industrial electric motors with thermal overload motor protection, Magnetic motor starter
  • Frame: Durable, professional, high gloss powder coat finish, ASME coded 120-gallon receiver tank, 7-gauge base plate to reduce vibration, 14-gauge powder coated totally enclosed belt guard, Tabbed design offers flexible installation, smooth operation and reduces vibration stress on tank
  • Components: Large flywheel for extra cooling and longer life, ASME safety valves, Pressure gauges, Tank shut-off valve, Intake filter/silencer, Belt tightening system pulls engine straight to ensure constant belt alignment, Three position switch - compressor 1 (lead motor pump), automatic alternating, and compressor 2 (lead motor pump)
Models Available:
ACD-23105-120H 200V, 46.0A, Single phase electric motor
ACD-20305-120H 200V, 32.2A, Three phase electric motor
ACD-23305-120H 230V, 27.6A, Three phase electric motor
ACD-46305-120H 460V, 13.8A, Three phase electric motor
Specifications
Horsepower 5.0 HP
Pump RPM 860
CFM @ 175 PSI 36.0
Bolt Down Dimensions (LxW) 34.5 x 23.5 inches
Net Weight 841 lbs.
Shipping Weight 920 lbs.
Length 74 in.
Width 26.5 in.
Height 58 in.
Air Compressor Accessories
replacement pumps Replacement Pumps



ACD-23105-120H
AIR COMPRESSOR 120 DUPLEX
Mfg. item #: ACD-23105-120H
MTMACD-23105{00
lease to own for as little as:$129 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$6,436.42

217
ACD-20305-120H
AIR COMPRESSOR 120 DUPLEX
Mfg. item #: ACD-20305-120H
MTMACD-20305{00
lease to own for as little as:$122 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$6,075.75

217
ACD-23305-120H
AIR COMPRESSOR 120 DUPLEX
Mfg. item #: ACD-23305-120H
MTMACD-23305{00
lease to own for as little as:$121 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$6,074.64

217
ACD-46305-120H
AIR COMPRESSOR 120 DUPLEX
Mfg. item #: ACD-46305-120H
MTMACD-46305{00
lease to own for as little as:$121 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$6,056.80

217
