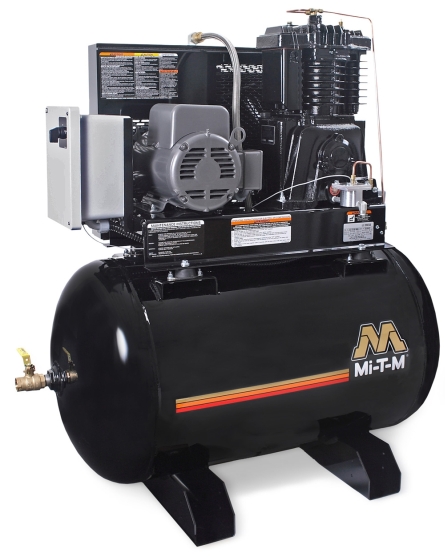

Mi-T-M ACS Series 80Gal 5HP Simplex-M Ho



Click image to enlarge







  • Compressor Pump: Quality two stage cast iron pump, Splash lubricated cast iron crankcase to extend the hours of performance, Cast iron head for heat dissipation, Oil lever sight indicator, Steel braided supply line for easy maintenance - wont fracture with vibration, Flexible pump drain hose
  • Motor: Low RPM industrial electric motor, NEMA-4 starter box with magnetic starter for thermal overload protection
  • Frame: Durable, professional, high gloss powder coat finish, ASME coded 80-gallon receiver tank, 7-gauge base plate to reduce vibration, 14-gauge powder coated totally enclosed heavy-duty belt guard, Vibration isolator pads protect the tank from stress
  • Components: Large flywheel for extra cooling and longer life, ASME safety valves, Pressure gauge, Tank shut-off valve, Tank drain valve automatically drains liquid from air receiver, Intake filter/silencer, Belt tightening system pulls engine straight to ensure constant belt alignment, Hour meter displays the number of hours compressor has been in operation, Dual control allows the electric compressor to be operated in start/stop mode or continuous run, Low oil shutdown shuts unit down when oil falls below adequate levels, Air-cooled after cooler removes up tp 65 percent fo moisture and drops temperature within 10-degrees of ambient
Models Available:
ACS-23105-80HM 230V, 23.0A, Single phase electric motor
ACS-20305-80HM 200V, 16.1A, Three phase electric motor
ACS-23305-80HM 230V, 13.8A, Three phase electric motor
ACS-46305-80HM  460V, 6.9A, Three phase electric
Specifications
Horsepower 5.0 HP
Pump RPM 860
CFM @ 175 PSI 18.0
Bolt Down Dimensions (LxW) 20.75 x 23.5 inches
Net Weight 544 lbs.
Shipping Weight 615 lbs.
Length 52 in.
Width 26.5 in.
Height 53 in.
Air Compressor Accessories
replacement pumps Replacement Pumps



ACS-23105-80HM
AIR COMPRESSOR 80 GAL HM
Mfg. item #: ACS-23105-80HM
MTMACS-23105{01
lease to own for as little as:$82 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,101.23

103
ACS-20305-80HM
AIR COMPRESSOR 80 GAL HM
Mfg. item #: ACS-20305-80HM
MTMACS-20305{01
lease to own for as little as:$83 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,161.99

103
ACS-23305-80HM
AIR COMPRESSOR 80 GAL HM
Mfg. item #: ACS-23305-80HM
MTMACS-23305{01
lease to own for as little as:$83 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,161.99

103
Call for price. MTMACS-46305-80HM
