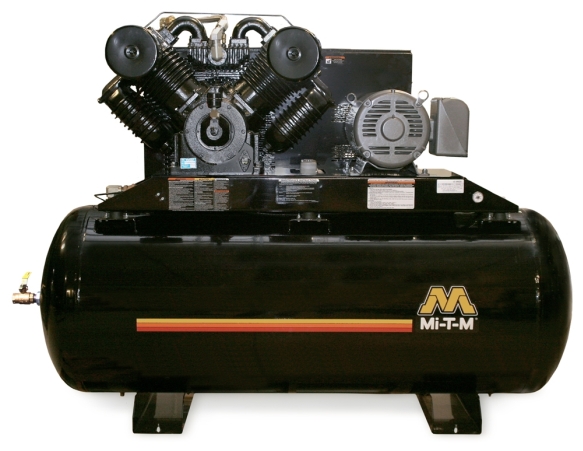

Mi-T-M ABS Series 240-Gal 30HP Simplex H



Click image to enlarge







  • Compressor Pump: Quality two stage cast iron pump, Splash lubricated cast iron crankcase to extend the hours of performance, Cast iron head for heat dissipation, Oil lever sight indicator, Steel braided supply line for easy maintenance - wont fracture with vibration, Flexible pump drain hose
  • Motor: Low RPM industrial electric motor with thermal overload motor protection
  • Frame: Durable, professional, high gloss powder coat finish, ASME coded 240-gallon receiver tank, 7-gauge base plate to reduce vibration, 14-gauge powder coated totally enclosed belt guard, Tabbed design offers flexible installation, smooth operation and reduces vibration stress on tank
  • Components: Large flywheel for extra cooling and longer life, ASME safety valves, Pressure gauges, Tank shut-off valve, Intake filter/silencer, Belt tightening system pulls engine straight to ensure constant belt alignment
Models Available:
AFS-20330-240H 200V, 83.0A, Three phase electric motor
AFS-23330-240H 230V, 72.0A, Three phase electric motor
AFS-46330-240H 460V, 36.0A, Three phase electric motor
Specifications
Horsepower 30.0 HP
Pump RPM 790
CFM @ 175 PSI 102.8
Bolt Down Dimensions (LxW) 23.5 x 44.5 inches
Net Weight 1502 lbs.
Shipping Weight 1596 lbs.
Length 92 in.
Width 42 in.
Height 70 in.
Air Compressor Accessories
replacement pump Replacement Pumps



AFS-20330-240H
SIMPLEX TANK MOUNTED - HORIZONTAL AIR COMPRESSOR, 30 HP, 240-GALLON, 200V, 83.0A, 3 PHASE, 102.8 - CFM DELIVERED@ 175 PSI
Mfg. item #: AFS-20330-240H
MTMAFS-20330{00
lease to own for as little as:$159 per month!
Flat Truck Shipping Rate of $200.00 Anywhere within the Lower 48 States34
$7,940.00

2906
AFS-23330-240H
SIMPLEX TANK MOUNTED - HORIZONTAL AIR COMPRESSOR, 30 HP, 240-GALLON, 230V, 72.0A, 3 PHASE, 102.8 - CFM DELIVERED@ 175 PSI
Mfg. item #: AFS-23330-240H
MTMAFS-23330{00
lease to own for as little as:$159 per month!
Flat Truck Shipping Rate of $200.00 Anywhere within the Lower 48 States34
$7,940.00

2906
AFS-46330-240H
SIMPLEX TANK MOUNTED - HORIZONTAL AIR COMPRESSOR, 30 HP, 240-GALLON, 460V, 36.0A, 3 PHASE, 102.8 - CFM DELIVERED@ 175 PSI
Mfg. item #: AFS-46330-240H
MTMAFS-46330{00
lease to own for as little as:$159 per month!
Flat Truck Shipping Rate of $200.00 Anywhere within the Lower 48 States34
$7,940.00

2906
