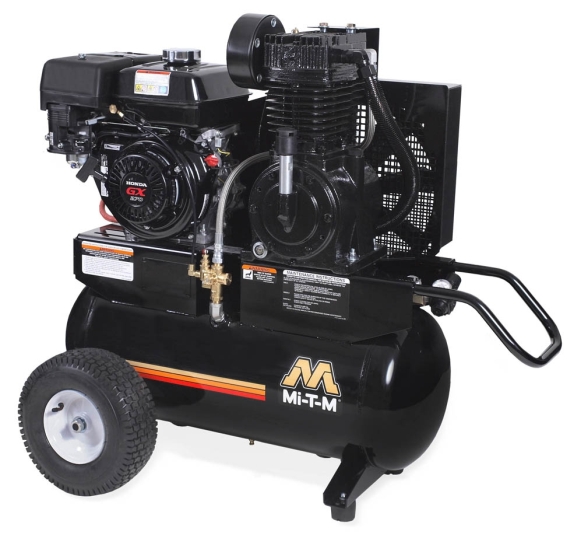

Mi-T-M 20 Gal Two Stage Air Compressor



AM2-PH09-20M air compressor

Click image to enlarge


2 year pump warranty
3 year engine warranty



View Product Sheet

  • Compressor Pump: Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure, Splash lubricated cast iron crankcase to extend the hours of performance, Cast iron head and cylinder for extended durability, Large canister intake filter, Stainless-steel braided discharge hose
  • Engine: Industrial Honda OHV engine (electric start optional), Engine oil drain, Pneumatic idle control to conserve fuel
  • Frame: Powder coated ASME coded 20-gallon receiver tank, 3/16-inch base plate to reduce vibration, 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts, Convenient lifting handle, Two pneumatic tires with tubes and steel hubs
  • Components: Regulator and two gauges for tank and outlet pressure, 16.5-inch fly wheel for extra cooling and longer life, Manual drain valves for proper maintenance, Belt tightening system pulls engine straight to ensure constant belt alignment, Quality pilot valve unloader
Specifications
Model AM2-PH09-20M
CFM @ 100 PSI 17.2
Displacement/Engine 270cc Honda OHV
Net Weight 306 lbs.
Shipping Weight 356 lbs.
Length 46 in.
Width 26 in.
Height 39.5 in.

AM2-PH09-20M
Mfg. item #: AM2-PH09-20M
MTMAM2-PH09-20M
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$1,840.00
