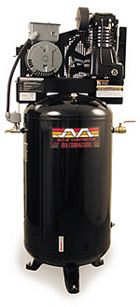

Mi-T-M 80 Gal Two Stage Air Compressor

80-Gallon Two Stage
17.8 CFM @ 175 PSI
5hp/200V, 3ph, 16.1A

80-Gallon Two Stage
17.8 CFM @ 175 PSI
5hp/230V, 1ph, 23.0A

80-Gallon Two Stage
17.8 CFM @ 175 PSI
5hp/230V, 3ph, 13.8A

80-Gallon Two Stage
17.8 CFM @ 175 PSI
5hp/460V, 3ph, 6.9A

80-Gallon Two Stage
23.2 CFM @ 175 PSI
7.5hp/200V, 3ph, 23.0A

80-Gallon Two Stage
23.2 CFM @ 175 PSI
7.5hp/230V, 1ph, 31.0A

80-Gallon Two Stage
23.2 CFM @ 175 PSI
7.5hp/230V, 3ph, 20.0A

80-Gallon Two Stage
23.2 CFM @ 175 PSI
7.5hp/460V, 3ph, 10.0A

Stationary - 80 Gallon - Electric - Single & Two Stage

Special Features

  • Quality single or two stage compressor

  • Industrial UL listed electric motor for a long life

  • Industrial grade pressure switch

  • 7 gauge base plate to reduce vibration

Features

  • Auto start/stop

  • 208-230V single phase 60 Hz

  • Cast iron cylinder

  • Splash lubricated aluminum crankcase and head (AC1-SE05-80M only)

  • Splash lubricated cast iron crankcase and aluminum head (two stage models)

  • Large canister intake filter

  • Large fly wheel for extra cooling and longer life

  • 14 gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts (5.0 HP models)

  • 14 gauge powder coated one-piece belt guard for quick access to belts (7.5 HP model)

  • Two stage intercooler

  • Powder coated ASME certified 80 gallon receiver tank

  • Manual drain valves for proper maintenance

  • Two (2) year limited warranty

Options

  • 3 Phase, 208-230V/460V (AS3-VE75-80M) (Consult Factory)

There are no further details.
Model No. HP Motor CFM @ 100 PSI CFM @ 175 PSI Amps Stage Pump Receiving Tank Ship Wt. Net Wt.
AC1-SE05-80M 5.0 208V-230V Electric 11.7 -- 20.0-22.5 Single Fini 80 Gallon , Vertical 499 lbs. 380 lbs.
AS2-SE05-80M 5.0 208V-230V Electric -- 16.9 20.0-22.5 Two Schulz 80 Gallon , Vertical 523 lbs. 407 lbs.
AS3-VE75-80M 7.5 208V-230V -- 24.0 35.0 Two Schulz 80 Gallon , Vertical 526 lbs. 407 lbs.
