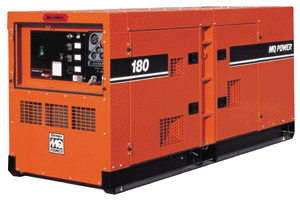

MultiQuip DCA-180SSK3 Generator

DCA-180SSK3
 From stationary standby power sources to mobile construction applications, MQ Power's WhisperWatt portable generators will meet your most demanding requirements.
WhisperWatt generators have been engineered to provide the highest reliability and maximum motor starting capability

There are no further details.
Specifications
Performance Data
Standby Output KW (KVA): 158 KW (198 KVA)
Prime Output KW (KVA): 144 KW (180 KVA)
Generator RPM: 1800
Voltage - 3 phase: 208, 220, 240, 416, 440, 480 Reconnectable
Frequency: 60 Hz
Insulation: Class F
Sound Level dB(A) - full load 23 feet: 67
Amps - Single Phase 120V: 400.0A (4 wire)
Amps - Single Phase 240V: 200.0A (4 wire)
Amps - Three Phase - 240V: 433A
Amps - Three Phase - 480V: 216A
No. of Poles: 4-Pole
Excitation: Brushless with AVR
Voltage - Single Phase: 120, 127, 139, 240, 254, 277 Adjustable
Armature Connection: Star with neutral
Voltage Regulation - no load to full load: +/- 1.5 percent
Power Factor: 0.8
Generator Design: Revolving Field, Self-ventilated, Single Bearing
Power Source
Displacement cu. in (cc): 494 (8100)
Bore x Stroke (mm): 116 x 129
Fuel Consumption - full load - gph (lph): 9.7 (36.7)
Fuel Consumption - 3/4 load - gph (lph): 7.5 (28.4)
Fuel Consumption - 1/2 load - gph (lph): 5.3 (20.1)
Fuel Consumption - 1/4 load - gph (lph): 3.5 (13.2)
Engine Coolant Capacity - gal (liters): 10.9 (41.2)
Fuel Tank Capacity - gal (liters): 66 (249.8)
Battery: 12V 225Ah x 1
Engine Design: 4-Cycle,Water Cooled,Direct Injection,Turbocharged
Engine Model: 6081TF
Engine HP; rpm: 190; 1800
Oil Capacity - gal (liters): 8.5 (32.2)
Engine Make: John Deere
Starting System: Electric
No. Cylinders 6
Dimensions
Overall Height - in. (cm): 60 (152)
Overall Length - in. (cm): 130 (330)
Overall Width - in. (cm): 48 (122)
Approx Net Wt. lb (kg): 6372 (2890)
Generator Accessories
Automatic Start/Stop Control: Standard
Electronic Governor Control (Crystal Sync): Standard
Battery Charger: Option
Engine Pre-Heater Option
There is no further information.
There are no listed accessories.
DCA180SSk3
(180KVA/144KW) SINGLE & THREE PHASE** CALL 800-458-3687 FOR CURRENT PRICING & AVAILABILITY
Mfg. item #: DCA180SSk3
MULDCA180SSK3
Free shipping to most locations in lower 48 states.22
Call for Price

596
CAMLOK1016
CAMLOK DISTRIBUTION SYSTEM FOR DCA4** CALL 800-458-3687 FOR CURRENT PRICING & AVAILABILITY
Mfg. item #: CAMLOK1016
MULCAMLOK1016
Free shipping to most locations in lower 48 states.22
Call for Price

596
MQPHEATT-2
THERMOSIPHON PRE-HEATER W/THERMOSTA** CALL 800-458-3687 FOR CURRENT PRICING & AVAILABILITY
Mfg. item #: MQPHEATT-2
MULMQPHEATT-2
Free shipping to most locations in lower 48 states.22
Call for Price

596
MQPHEATT180
THERMOSIPHON PRE-EATER W/THERMOSTAT** CALL 800-458-3687 FOR CURRENT PRICING & AVAILABILITY
Mfg. item #: MQPHEATT180
MULMQPHEATT180
Free shipping to most locations in lower 48 states.22
Call for Price

596
