Maksiwa Sanders

DISC SANDER 300MM (12") 1HP - 1 PHASE COMBINATION BELT AND DISC SANDER 6X9'' 3/4HP - 1 PHASE
Disc Sander Belt and Disc Sander



Models and Accessories
LD.300 DISC SANDER 300MM (12 inch) 1HP - 1 PHASE
LDF COMBINATION BELT AND DISC SANDER 6X9 inch 3/4HP - 1 PHASE



DISC SANDER 300MM (12") 1HP - 1 PHASE

Click here to download manual

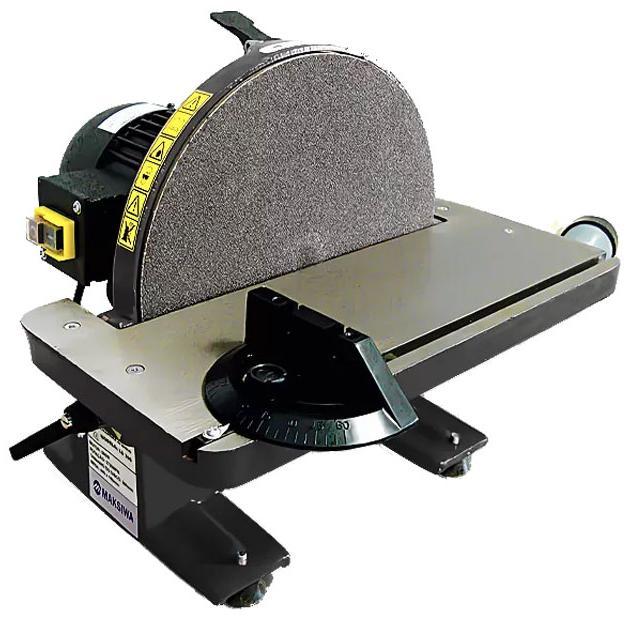

LD.300

The LD.300 MAKSIWA is ideal for shaping and smoothing edges, squaring end-cuts and truing simple and compound miters. The precision ground cast iron table adjusts for bevel sanding up to 45-degrees and the 1 HP totally enclosed fan cooled direct drive motor spins at 1,700 RPM, which is ideal for wood sanding applications.

Miter Gauge

This sander includes a deluxe miter gauge for moving workpieces into the sanding disc at a specific angle. To use the miter gauge simply slide it into the miter slot, loosen the lock knob, set the angle, then re-tighten the knob.

Degree Scale

The easy-to-read degree scale lets you know your exact sanding angle for precision and accuracy







Specifications
Technical Information LD.300
Table size 17-1/2
Table tilt 0 to 45 deg
Speed 1,720 RPM
Motor Specs 1 HP 1 phase 127 V - 16 A
Weight 86 Lbs.
Disc Diameter 12 inch
Warranty 2 years



COMBINATION BELT AND DISC SANDER 6X9'' 3/4HP - 1 PHASE

Click here to download manual

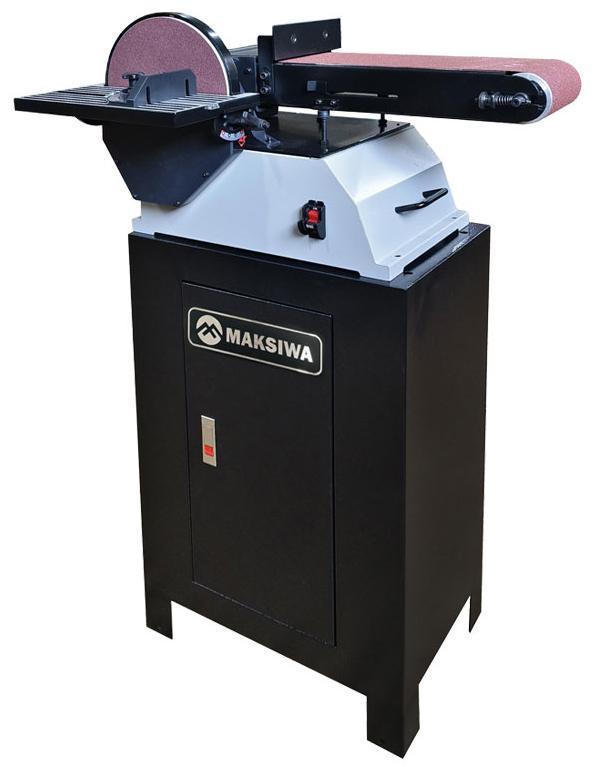

LDF

Packed with features, the LDF Combination Belt and Disc Sander can handle a huge variety of tasks. It has a 6 inchx 48 inch belt, 9 inch disc and a 3/4HP motor. The tiltable table 0 to 45 deg and 0 to 90 deg disc will allow you to sand pieces in every angle.










Specifications
Technical Information LDF
Table size 12-3/8
Table tilt 0 to 45 deg
Blade tilt 0 to 90 deg
Disc 9 inch
Belt 6 inch x 48 inch
Belt speed 20.7 ft/s
Disc speed 1,700 RPM
Motor Specs 3/4 HP 1 phase: 127 V - 13.8 A
Weight 134 Lbs.
Warranty 2 years



LD.300
DISC SANDER 300MM (12) 1HP - 1 PHASE (WGT = 86 LBS, DIMS = 18X17X17 ** MADE IN CHINA)
Mfg. item #: LD.300
MSW-LD.300
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
NEW ITEM
$328.75

36572
LDF
COMBINATION BELT AND DISC SANDER 6X9 3/4HP - 1 PHASE (WGT = 134 LBS, DIMS = 27X24X18 ** MADE IN CHINA)
Mfg. item #: LDF
MSW-LDF
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
NEW ITEM
$772.73

36572
