Series 3CP1 Series Capstan Winch

Portable Capstan Winch with Swivel Base Portable Capstan Winch with Swivel Base
Portable Capstan Winch with Swivel Base Portable Capstan Winch with Fixed Base



Liberty Capstan Winch
3CP1M-AFS Model 3CP1M-AFS - Liberty Capstan Winch up to 1000 lb capacity fixed mount capstan winch, foot switch, rope lock. ** Weight = 55 lbs
3CP1S-AFS Model 3CP1S-AFS - Liberty Capstan Winch up to 1000 lb capacity swivel mount capstan winch, foot switch, rope lock. ** Weight = 77 lbs
3CP1S-HM Model 3CP1S-HM - Liberty Capstan Winch 2� powder coat finish hitch mount receiver and mounting plate. ** Weight = 25 lbs



Portable Capstan Winch with, Swivel, Fixed Base, or Hitch Mount

The Thern Liberty Series capstan winch with integral swivel base delivers portable strength for lifting, pulling, and tensioning at almost any angle. More importantly, quiet operation enhances team communication for increased productivity. Among other uses, it’s perfect for elevator shaft and cell tower construction projects. The enclosed motor housing, powder-coat finish, and corrosion-resistant components ensure dependable operation for many years.

QUICK FACTS

  • 1,000 lb Capacity (450 kg)
  • Quiet Operation
  • Extended Duty Cycle
  • Extremely Portable
  • Enhanced Safety Features
  • Increased Productivity
  • Maintenance-Free
  • Industry-Leading Warranty

SERIES MODEL

  • 3CP1S-AFS
  • 3CP1M-AFS

Features:

  • Premium motor with handle Premium motor offers quiet operation (80 dBA)* enhancing clear communication between operators. UL- Recognized motor. *Thern's 3CP1S-AFS winch has a maximum noise level of 80 dBA, averaging 10 dBA less than the competition when measured at a distance of approximately three feet under similar conditions.
  • Foot switch control Foot switch-controlled operation enhances productivity and safety. IP65, NEMA 4-rated sealed foot switch allows outdoor use.
  • Integral rope lock Rope lock prevents unintentional drops to enhance safety. Adjustable rope lock accommodates various line exit angles and operator heights.
  • Durable swivel frame with integral lock Adjustable rotation in 15° increments to align loads and lock securely with swivel stop. Lightweight, engineered design and steel construction enhances portability. Powder-coated steel finish resists wear and promotes durability.
  • Integral rope keep Spring-loaded rope keep helps prevent accidental removal of hand line from drum to enhance safety.
  • Engineered drum design Keeps load line from moving during operation, enhancing productivity. Nickel-plated steel construction for optimum performance and durability.
Model Maximum Capacity Rope Diameter Range** Maximum Line Speed Range*** Rated Current Draw Input Voltage Ship Weight Ambient Operating Temperature Range Duty Cycle Mount Type
3CP1S-AFS 1,000 LBS 450 KG 1/2-3/4 IN 13–19 MM 35–50 FPM 11–15 MPM 15 AMP 115V/1 Phase/50–60Hz 76 LBS/34 KG -4 °F–+105 °F -20°C–+40°C 20 Minutes Full Load Swivel
3CP1M-AFS 1,000 LBS 450 KG 1/2-3/4 IN 13–19 MM 35–50 FPM 11–15 MPM 15 AMP 115V/1 Phase/50–60Hz 64 LBS/29 KG -4 °F–+105 °F -20°C–+40°C 20 Minutes Full Load Fixed



3CP1S-HM-Hitch-Mount-Drawings

Capstan-Winch-with-Swivel-Base-Drawings-V2

Capstan-Winch-with-Swivel-Base-Drawings-2-V2

capstan-drawing-1capstan-drawing-2capstan-drawing-3



Click here to view the Electronic Controls options
to Operate Power Winches Remotely


 ELECTRONIC CONTROLS

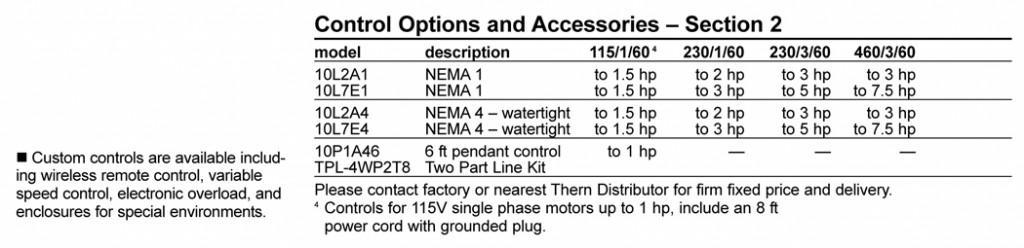

Electronic Controls available for the 4WP2D Power Winches
10L2A1 NEMA 1
10L7E1 NEMA 1
10L2A4 NEMA 4 – watertight
10L7E4 NEMA 4 – watertight
10P1A46 6 ft pendant control
TPL-4WP2T8 Two Part Line Kit



3CP1M-AFS
UP TO 1000 LB CAPACITY FIXED MOUNT
Mfg. item #: 3CP1M-AFS
THE3CP1M-AFS
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

34
3CP1S-AFS
UP TO 1000 LB CAPACITY SWIVEL MOUNT
Mfg. item #: 3CP1S-AFS
THE3CP1S-AFS
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

34
3CP1S-HM
2 IN POWDER COAT FINISH HITCH MOUNT
Mfg. item #: 3CP1S-HM
THE3CP1S-HM
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

34
10L2A1
NEMA 1 - ELECTRIC DRUM CONTROL SWIT
Mfg. item #: 10L2A1
THE10L2A1
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

34
10L7E1
NEMA 1 - ELECTRIC DRUM CONTROL SWIT
Mfg. item #: 10L7E1
THE10L7E1
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

34
10L2A4
NEMA 4 _ WATERTIGHT - ELECTRIC DRUM CONTROL SWITCHES ** UPTO 3 HP (MUST INDICATE VOLTAGE & PHASE) - WEIGHT = 7 LBS
Mfg. item #: 10L2A4
THE10L2A4
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$646.80

418
10L7E4
NEMA 4 _ WATERTIGHT - ELECTRIC DRUM
Mfg. item #: 10L7E4
THE10L7E4
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

34
10P1A46
6 FT PENDANT CONTROL - ELECTRIC DRU
Mfg. item #: 10P1A46
THE10P1A46
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

34
TPL-4WP2T8
TWO PART LINE KIT _ NOT AVAILABLE O
Mfg. item #: TPL-4WP2T8
THETPL-4WP2T8
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

34
