Thern 4BP Series Heavy Duty Electric Power Winches

Model 4bp heavy-duty electric power winches

All Thern winches and cranes are sold without wire rope.

4BP SERIES

31,000 to 51,000 lb Capacity

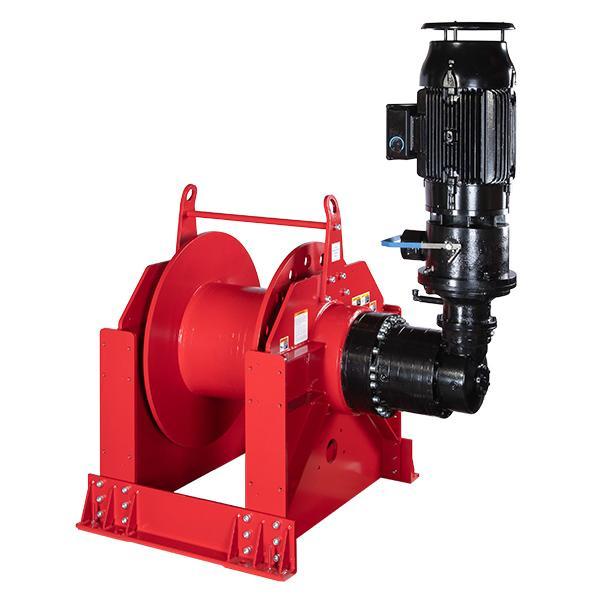

The 4BP Series of heavy-duty electric power winches (31,000 to 51,000 pounds) is designed for a wide range of applications including barge and rail car positioning, bulk material handling, and much more. The range of options in lifting capacity, motor power and drum width enable a 4BP winch to be implemented within a relatively small footprint while retaining a high load rating and wire rope capacity. Fixed or variable speed controls may be mounted directly on the winch, minimizing footprint and allowing precise control of the winch.

Quick Facts:

  • High Efficiency Premium Motor
  • Dedicated Lifting Points for Installation
  • Large Diameter Welded Steel Drum
  • Reliable and Sturdy Gearbox Design

Series Models:

  • 4BP30-20HE
  • 4BP30-20LE
  • 4BP30-48HE
  • 4BP30-48LE
  • 4BP40-24HE
  • 4BP40-24LE
  • 4BP40-48HE
  • 4BP40-48LE
  • 4BP50-24HE
  • 4BP50-24LE
  • 4BP50-48HE
  • 4BP50-48LE

Fetures:

  • Dedicated lifting poiints for installation Make installation safer and easier by utilizing installation lifting points
  • High efficiency premium motor Energy-efficient 460 volt, reversible, three-phase, industrial-grade motor, endures continuous use at desired load capacity Totally enclosed, fan-cooled (TEFC) design, featuring IP66 and F-class insulation, resists debris and contamination for long service life Standard motors comply with industry standards: UL, CSA, IEC, and NEMA MG1  Easy operation fail safe electric brake with manual release lever; simply press down handle to release brake
  • Large diameter welded steel drum Integrated wire rope anchor points promote uniform winding and long life of wire rope Continuous, solid-steel drum shaft and steel frame provide optimal strength and security Various drum widths available to accomodate required lengths of wire rope and footprint requirements Complete wire rope assemblies available upon request
  • Reliable and Sturday gearbox design Fully enclosed bevel, planetary gear set provides reliable operation under heavy loads and allows for optimal load control Large-capacity bearings enhance smooth operation and durability Sealed, cast-iron gearbox with integral oil bath for rotating gears dissipates heat and provides continuous lubrication for enhanced service life
4BP Series Specifications

Model No.

Load Rating (First Layer)

Drum Width

Line Speed

Motor Power

Motor Voltage



(lbs)

(kg)

(in)

(mm)

(fpm)

(mpm)

(hp)

(kw)

(v)

4BP30-20HE

31,000

14,060

20

508

44-84

13-23

50

37

460/3/60

4BP30-20LE

31,000

14,060

20

508

15-26

5-8

15

11

460/3/60

4BP30-48HE

31,000

14,060

48

1219

44-84

13-23

50

37

460/3/60

4BP30-48LE

31,000

14,060

48

1219

15-26

5-8

15

11

460/3/60




4BP40-24HE

41,500

18,800

24

610

52-80

16-24

75

56

460/3/60

4BP40-24LE

41,500

18,800

24

610

17-26

5-8

25

19

460/3/60

4BP40-48HE

41,500

18,800

48

1219

52-80

16-24

75

56

460/3/60

4BP40-48LE

41,500

18,800

48

1219

17-26

5-8

25

19

460/3/60




4BP50-24HE

51,000

23,135

24

610

44-73

13-22

75

56

460/3/60

4BP50-24LE

51,000

23,135

24

610

15-25

5-8

30

22.3

460/3/60

4BP50-48HE

51,000

23,135

48

1219

44-73

13-22

75

56

460/3/60

4BP50-48LE

51,000

23,135

48

1219

15-25

5-8

30

22.3

460/3/60
