4WS Series - Worm/Spur Gear Power Winches -
Load Rating 800 lbs
4WS1M6-1 Model 4WS1M6-1 4WS Series - Worm/Spur Gear Power Winches - .5 hp with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 800 Lbs, Line Speed 15 FPM, (115V OR 230V / 1 PH) ** Weight = 155 lbs
4WS1M6-2 Model 4WS1M6-2 4WS Series - Worm/Spur Gear Power Winches - .5 hp with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 800 Lbs, Line Speed 15 FPM, (230V / 460V / 3 PH) ** Weight = 155 lbs
4WS1M6-3 Model 4WS1M6-3 4WS Series - Worm/Spur Gear Power Winches - .75 hp with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 800 Lbs, Line Speed 30 FPM, (115V OR 230V / 1 PH) ** Weight = 165 lbs
4WS1M6-4 Model 4WS1M6-4 4WS Series - Worm/Spur Gear Power Winches - .75 hp with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 800 Lbs, Line Speed 30 FPM, (230V / 460V / 3 PH) ** Weight = 165 lbs
4WS1M6-5 Model 4WS1M6-5 4WS Series - Worm/Spur Gear Power Winches - 1 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 800 Lbs, Line Speed 40 FPM, (115V OR 230V / 1 PH) ** Weight = 175 lbs
4WS1M6-6 Model 4WS1M6-6 4WS Series - Worm/Spur Gear Power Winches - 1 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 800 Lbs, Line Speed 40 FPM, (230V / 460V / 3 PH) ** Weight = 175 lbs
Load Rating 1,100 lbs
4WS1M6-7 Model 4WS1M6-7 4WS Series - Worm/Spur Gear Power Winches - .75 hp with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 1100 Lbs, Line Speed 20 FPM, (115V OR 230V / 1 PH) ** Weight = 165 lbs
4WS1M6-8 Model 4WS1M6-8 4WS Series - Worm/Spur Gear Power Winches - .75 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 1100 Lbs, Line Speed 20 FPM, (230V / 460V / 3 PH) ** Weight = 165 lbs
4WS1M6-9 Model 4WS1M6-9 4WS Series - Worm/Spur Gear Power Winches - 1 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 1100 Lbs, Line Speed 30 FPM, (115V OR 230V / 1 PH) ** Weight = 175 lbs
4WS1M6-10 Model 4WS1M6-10 4WS Series - Worm/Spur Gear Power Winches - 1 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 1100 Lbs, Line Speed 30 FPM, (230V / 460V / 3 PH) ** Weight = 175 lbs
4WS1M6-11 Model 4WS1M6-11 4WS Series - Worm/Spur Gear Power Winches - 1.5 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 1100 Lbs, Line Speed 40 FPM, (230V / 460V / 3 PH) ** Weight = 180 lbs
Load Rating 1,500 lbs
4WS1M6-12 Model 4WS1M6-12 4WS Series - Worm/Spur Gear Power Winches - 1 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 1500 Lbs, Line Speed 20 FPM, (115V OR 230V / 1 PH) ** Weight = 175 lbs
4WS1M6-13 Model 4WS1M6-13 4WS Series - Worm/Spur Gear Power Winches - 1 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 1500 Lbs, Line Speed 20 FPM, (230V / 460V / 3 PH) ** Weight = 175 lbs
4WS1M6-14 Model 4WS1M6-14 4WS Series - Worm/Spur Gear Power Winches - 1.5 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 1500 Lbs, Line Speed 30 FPM, (230V / 460V / 3 PH) ** Weight = 170 lbs
4WS1M6-15 Model 4WS1M6-15 4WS Series - Worm/Spur Gear Power Winches - 2 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 1500 Lbs, Line Speed 40 FPM, (230V / 1 PH Only) ** Weight = 180 lbs
4WS1M6-16 Model 4WS1M6-16 4WS Series - Worm/Spur Gear Power Winches - 2 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 1500 Lbs, Line Speed 40 FPM, (230V / 460V / 3 PH) ** Weight = 180 lbs
CO4WS1M6 Clutch option for 4WS1M6 Series (for horizontal pulling only) For 4WS - Worm/Spur Gear Power Winches -
Load Rating 2,000 lbs
4WS3M10-1 Model 4WS3M10-1 4WS Series - Worm/Spur Gear Power Winches - 1 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 2000 Lbs, Line Speed 15 FPM, (115V OR 230V / 1 PH), ** Weight = 310 lbs
4WS3M10-2 Model 4WS3M10-2 4WS Series - Worm/Spur Gear Power Winches - 1 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 2000 Lbs, Line Speed 15 FPM, (230V / 460V / 3 PH), ** Weight = 310 lbs
4WS3M10-3 Model 4WS3M10-3 4WS Series - Worm/Spur Gear Power Winches - 1.5 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 2000 Lbs, Line Speed 20 FPM, (230V / 460V / 3 PH), ** Weight = 305 lbs
Load Rating 2,500 lbs
4WS3M10-4 Model 4WS3M10-4 4WS Series - Worm/Spur Gear Power Winches - 2 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 2500 Lbs, Line Speed 20 FPM, (230V / 1 PH Only) ** Weight = 305 lbs
4WS3M10-5 Model 4WS3M10-5 4WS Series - Worm/Spur Gear Power Winches - 2 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 2500 Lbs, Line Speed 20 FPM, (230V / 460V / 3 PH), ** Weight = 320 lbs
Load Rating 3,000 lbs
4WS3M10-6 Model 4WS3M10-6 4WS Series - Worm/Spur Gear Power Winches - 1.5 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 3000 Lbs, Line Speed 15 FPM, (230V / 460V / 3 PH), ** Weight = 305 lbs
4WS3M10-7 Model 4WS3M10-7 4WS Series - Worm/Spur Gear Power Winches - 2 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 3000 Lbs, Line Speed 20 FPM, (230V / 1 PH Only) ** Weight = 320 lbs
4WS3M10-8 Model 4WS3M10-8 4WS Series - Worm/Spur Gear Power Winches - 2 hp - with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 3000 Lbs, Line Speed 20 FPM, (230V / 460V / 3 PH), ** Weight = 320 lbs
4WS6M12-1 Model 4WS6M12-1 4WS Series - Worm/Spur Gear Power Winches - 1.5 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 3000 Lbs, Line Speed 10 FPM, (230V / 460V / 3 PH), ** Weight = 515 lbs
4WS6M12-2 Model 4WS6M12-2 4WS Series - Worm/Spur Gear Power Winches - 2 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 3000 Lbs, Line Speed 20 FPM, (230V / 1 PH Only) ** Weight = 530 lbs
4WS6M12-3 Model 4WS6M12-3 4WS Series - Worm/Spur Gear Power Winches - 2 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 3000 Lbs, Line Speed 20 FPM, (230V / 460V / 3 PH), ** Weight = 530 lbs
Load Rating 3,500
4WS3M10-9 Model 4WS3M10-9 4WS Series - Worm/Spur Gear Power Winches - 1 hp with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 3500 Lbs, Line Speed 7 FPM, (115V OR 230V / 1 PH), ** Weight = 320 lbs
4WS3M10-10 Model 4WS3M10-10 4WS Series - Worm/Spur Gear Power Winches - 1 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 3500 Lbs, Line Speed 7 FPM, (230V / 460V / 3 PH), ** Weight = 320 lbs
4WS3M10-11 Model 4WS3M10-11 4WS Series - Worm/Spur Gear Power Winches - 2 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 3500 Lbs, Line Speed 15 FPM, (230V / 1 PH Only) ** Weight = 320 lbs
4WS3M10-12 Model 4WS3M10-12 4WS Series - Worm/Spur Gear Power Winches - 2 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 3500 Lbs, Line Speed 15 FPM, (230V / 460V / 3 PH), ** Weight = 320 lbs
4WS3M10-13 Model 4WS3M10-13 4WS Series - Worm/Spur Gear Power Winches - 3 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 3500 Lbs, Line Speed 20 FPM, (230V / 460V / 3 PH), ** Weight = 330 lbs
CO4WS3M10 Clutch option for 4WS1M10 Series (for horizontal pulling only) For 4WS - Worm/Spur Gear Power Winches -
Load Rating 4,000 lbs
4WS6M12-4 Model 4WS6M12-4 4WS Series - Worm/Spur Gear Power Winches - 1 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 4000 Lbs, Line Speed 6 FPM, A,(230V / 1 PH Only) ** Weight = 535 lbs
4WS6M12-5 Model 4WS6M12-5 4WS Series - Worm/Spur Gear Power Winches - 1 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 4000 Lbs, Line Speed 6 FPM, (230V / 460V / 3 PH), ** Weight = 535 lbs
4WS6M12-6 Model 4WS6M12-6 4WS Series - Worm/Spur Gear Power Winches - 2 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 4000 Lbs, Line Speed 10 FPM, (230V / 1 PH Only) ** Weight = 530 lbs
4WS6M12-7 Model 4WS6M12-7 4WS Series - Worm/Spur Gear Power Winches - 2 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 4000 Lbs, Line Speed 10 FPM, (230V / 460V / 3 PH), ** Weight = 530 lbs
4WS6M12-8 Model 4WS6M12-8 4WS Series - Worm/Spur Gear Power Winches - 3 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 4000 Lbs, Line Speed 20 FPM, (230V / 460V / 3 PH), ** Weight = 540 lbs
Load Rating 6,000 lbs
4WS6M12-9 Model 4WS6M12-9 4WS Series - Worm/Spur Gear Power Winches - 1 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 6000 Lbs, Line Speed 4 FPM, (115V OR 230V / 1 PH), ** Weight = 535 lbs
4WS6M12-10 Model 4WS6M12-10 4WS Series - Worm/Spur Gear Power Winches - 1 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 6000 Lbs, Line Speed 4 FPM, (230V / 460V / 3 PH), ** Weight = 535 lbs
4WS6M12-11 Model 4WS6M12-11 4WS Series - Worm/Spur Gear Power Winches - 3 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 6000 Lbs, Line Speed 10 FPM, (230V / 460V / 3 PH), ** Weight = 540 lbs
4WS6M12-12 Model 4WS6M12-12 4WS Series - Worm/Spur Gear Power Winches - 5 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 6000 Lbs, Line Speed 20 FPM, (230V / 460V / 3 PH), ** Weight = 585 lbs
CO4WS6M12 Clutch option for 4WS1M12 Series (for horizontal pulling only) For 4WS - Worm/Spur Gear Power Winches -
Load Rating 7,000 lbs
4WS9M18-1 Model 4WS9M18-1 4WS Series - Worm/Spur Gear Power Winches - 5 hp  with brake, no controls , Clutch Option Sold Seprtately, , Load Rating 7000 Lbs, Line Speed 20 FPM, (230V / 460V / 3 PH), ** Weight = 1098 lbs
4WS9M18-2 Model 4WS9M18-2 4WS Series - Worm/Spur Gear Power Winches - 7.5 hp with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 7000 Lbs, Line Speed 30 FPM, (230V / 460V / 3 PH), ** Weight = 1095 lbs
Load Rating 10,000 lbs
4WS9M18-3 Model 4WS9M18-3 4WS Series - Worm/Spur Gear Power Winches - 5 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 10000 Lbs, Line Speed 10 FPM, (230V / 460V / 3 PH), ** Weight = 1098 lbs
4WS9M18-4 Model 4WS9M18-4 4WS Series - Worm/Spur Gear Power Winches - 7.5 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 10000 Lbs, Line Speed 20 FPM, (230V / 460V / 3 PH), ** Weight = 1095 lbs
4WS9M18-5 Model 4WS9M18-5 4WS Series - Worm/Spur Gear Power Winches - 10 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 10000 Lbs, Line Speed 30 FPM, (230V / 460V / 3 PH), ** Weight = 1151 lbs
Load Rating 13,000 lbs
4WS16M20-1 Model 4WS16M20-1 4WS Series - Worm/Spur Gear Power Winches - 7.5 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 13000 Lbs, Line Speed 15 FPM, (230V / 460V / 3 PH), ** Weight = 1550 lbs
4WS16M20-2 Model 4WS16M20-2 4WS Series - Worm/Spur Gear Power Winches - 10 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 13000 Lbs, Line Speed 20 FPM, (230V / 460V / 3 PH), ** Weight = 1610 lbs
4WS16M20-3 Model 4WS16M20-3 4WS Series - Worm/Spur Gear Power Winches - 15 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 13000 Lbs, Line Speed 35 FPM, (230V / 460V / 3 PH), ** Weight = 1650 lbs
Load Rating 16,000 lbs
4WS16M20-4 Model 4WS16M20-4 4WS Series - Worm/Spur Gear Power Winches - 7.5 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 16000 Lbs, Line Speed 15 FPM, (230V / 460V / 3 PH), ** Weight = 1550 lbs
4WS16M20-5 Model 4WS16M20-5 4WS Series - Worm/Spur Gear Power Winches - 10 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 16000 Lbs, Line Speed 20 FPM, (230V / 460V / 3 PH), ** Weight = 1610 lbs
Load Rating 22,000 lbs
4WS26M26-1 Model 4WS26M26-1 4WS Series - Worm/Spur Gear Power Winches - 15 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 22000 Lbs, Line Speed 20 FPM, (230V / 460V / 3 PH), ** Weight = 3110 lbs
4WS26M26-2 Model 4WS26M26-2 4WS Series - Worm/Spur Gear Power Winches - 20 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 22000 Lbs, Line Speed 25 FPM, (230V / 460V / 3 PH), ** Weight = 3290 lbs
4WS26M26-3 Model 4WS26M26-3 4WS Series - Worm/Spur Gear Power Winches - 25 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 22000 Lbs, Line Speed 35 FPM, (230V / 460V / 3 PH), ** Weight = 3350 lbs
Load Rating 26,000 lbs
4WS26M26-4 Model 4WS26M26-4 4WS Series - Worm/Spur Gear Power Winches - 10 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 26000 Lbs, Line Speed 10 FPM, (230V / 460V / 3 PH), ** Weight = 3070 lbs
4WS26M26-5 Model 4WS26M26-5 4WS Series - Worm/Spur Gear Power Winches - 15 hp  with brake, no controls, Clutch Option Sold Seprtately, , Load Rating 26000 Lbs, Line Speed 15 FPM, (230V / 460V / 3 PH), ** Weight = 3110 lbs

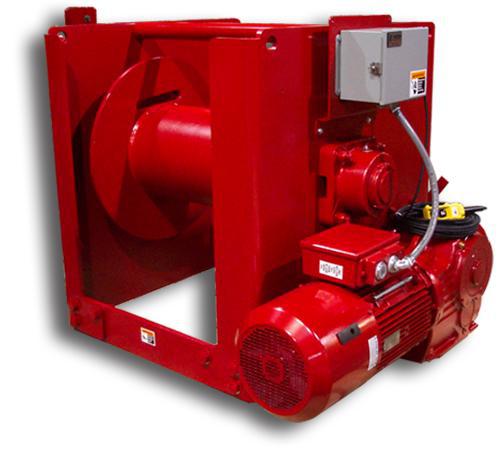

Model 4WS1M6C Worm/Spur Gear Power Winch with Clutch

4WS SERIES

Up to 6,000 lbs Capacities  Thern 4WS series power winches feature a combination of helical/worm and spur gearing, making these winches ideal for applications requiring secure load control and accurate positioning.

QUICK FACTS

  • Modular design allows for customization
  • TEFC brake motors
  • Enclosed machine cut gearing
  • Flange style ball bearings
  • 2-Year Limited Warranty

SERIES MODELS

  • 4WS1M6
  • 4WS3M10
  • 4WS6M12
  • Up to 6,000 lbs Capacities

Features:

  • Flanged mounted motor Motor is a 230 or 460 volt, 3 phase motor, 60 cycle, IP 54*, TEFC severe duty, reversible, class B or F insulated, continuous duty brake motor. Standard motors comply with relevant standards including NEMA, MG1, ANSI, CSA, IEC1 and ABS.
  • Load holding motor disc brake Brake is spring set, electrically released for positive load control.
  • Dual stage gearing Gearing is comprised of a worm or helical/worm and spur gears, making winches well suited for applications requiring secure load control and accurate positioning. The heat-treated worm or helical/worm gear set provides improved durability and operates in an oil bath, enclosed in a high strength cast iron gear case, SAE class 30. Double-lip oil seals keep oil in and contaminants out. Large capacity bearings ensure long life. Speed reducers meet AGMA standards. Guarded, heat treated spur gearing provides secondary reduction. Grease zerks allow for easy lubrication.
  • Flange style roller bearing Bearings are self-aligning with cast housing to maintain smooth drum rotation.
  • Welded steel drum Drum has outside flange anchors, which allow for uniform winding and helps to extend life of wire rope. Anchors allow cable to be over wound or under wound from either side of the drum.
  • Extended steel drum shaft Captures both ends in a fabricated steel frame for optimal strength and security.
  • Wire rope assembles Sold separately per customer request.
  • AMSE B30.7 compliance avaliable upon request
  • Two year warranty Industry-leading two-year Move It With Confidence limited warranty.

When ordering, please indicate Model Number and Extensions. Examples: 4WS1M6-1100-20-A (without clutch); 4WS1M6-1100-20-A-C (with clutch).

Please contact Thern or nearest Thern distributor for firm, fixed price and delivery.

6 Weight may vary with motor.

4WS1M6, 4WS3M10, and 4WS6M12 Series Performance Characteristics


Model Number Extensions



Load Rating

Line Speed



Model No.

Load Rating

Load Speed

Motor Codes

Clutch Option

Motor HP

1st Layer

Mid Drum

Full Drum

1st Layer

Full Drum

Approx. Ship Weight 2



(lb)

(kg)

(fpm)

(mpm)



(lb)

(kg)

(lb)

(kg)

(lb)

(kg)

(fpm)

(mpm)

(fpm)

(mpm)

(lb)

(kg)

4WS1M6

800

362

15

4

A,B,D,E,F

C

.5

800

362

550

249

420

190

17

5

33

10

155

71

4WS1M6

800

362

30

9

A,B,D,E,F

C

.75

800

362

550

249

420

190

29

8

55

16

165

75

4WS1M6

800

362

40

12

A,B,D,E,F

C

1

800

362

550

249

420

190

43

13

82

24

175

80

4WS1M6

1,100

498

20

6

A,B,D,E,F

C

.75

1,100

498

800

362

600

272

18

5

32

9

165

75

4WS1M6

1,100

498

30

9

A,B,D,E,F

C

1

1,100

498

800

362

600

272

30

9

54

16

175

80

4WS1M6

1,100

498

40

12

D,E,F

C

1.5

1,100

498

800

362

600

272

44

13

81

24

170

77

4WS1M6

1,500

680

20

6

A,B,D,E,F

C

1

1,500

680

1,000

453

800

362

18

5

32

9

175

80

4WS1M6

1,500

680

30

9

D,E,F

C

1.5

1,500

680

1,100

498

800

362

30

9

54

16

170

77

4WS1M6

1,500

680

40

12

B,D,E,F

C

2

1,500

680

1,100

498

800

362

44

13

81

24

180

82

4WS3M10

2,000

907

15

4

A,B,D,E,F

C

1

2,000

907

1,300

589

1,000

453

14

4

29

8

310

141

4WS3M10

2,000

907

20

6

D,E,F

C

1.5

2,200

997

1,400

635

1,000

453

18

5

39

11

305

139

4WS3M10

2,500

1,133

20

6

B,D,E,F

C

2

2,500

1,133

1,600

725

1,200

544

22

6

46

14

320

146

4WS3M10

3,000

1,360

15

4

D,E,F

C

1.5

3,000

1,360

2,000

907

1,500

680

14

4

29

8

305

139

4WS3M10

3,000

1,360

20

6

B,D,E,F

C

2

3,000

1,360

2,000

907

1,500

680

19

5

39

11

320

146

4WS3M10

3,500

1,587

7

2

A,B,D,E,F

C

1

3,500

1,587

2,300

1,043

1,700

771

8

2

15

4

330

150

4WS3M10

3,500

1,587

15

4

B,D,E,F

C

2

3,700

1,678

2,500

1,133

1,800

816

14

4

29

8

320

146

4WS3M10

3,500

1,587

20

6

D,E,F

C

3

3,700

1,678

2,500

1,133

1,800

816

23

7

46

14

330

150

4WS6M12

3,000

1,360

10

3

D,E,F

C

1.5

3,400

1,542

2,200

997

1,600

725

12

3

25

7

515

234

4WS6M12

3,000

1,360

20

6

B,D,E,F

C

2

3,100

1,406

2,000

907

1,500

680

20

6

42

12

530

241

4WS6M12

4,000

1,814

6

2

A,B,D,E,F

C

1

4,500

2,041

2,900

1,315

2,200

997

6

2

13

4

535

243

4WS6M12

4,000

1,814

10

3

B,D,E,F

C

2

4,500

2,041

2,900

1,315

2,100

952

12

3

25

7

530

241

4WS6M12

4,000

1,814

20

6

D,E,F

C

3

4,000

1,814

2,500

1,133

1,900

861

24

7

50

15

540

245

4WS6M12

6,000

2,721

4

1

A,B,D,E,F

C

1

6,200

2,812

4,000

1,814

3,000

1,360

4

1

8

2

535

243

4WS6M12

6,000

2,721

10

3

D,E,F

C

3

6,400

2,902

4,200

1,905

3,100

1,406

12

3

25

7

540

245

4WS6M12

6,000

2,721

20

6

D,E,F

C

5

6,400

2,902

4,200

1,905

3,100

1,406

24

7

50

15

585

266

4WS9M18, 4WS16M20, and 4WS26M26 Series Performance Characteristics


Model Number Extensions



Load Rating

Line Speed

Model No.

Load Rating

Load Speed

Motor Codes

Motor

1st Layer

Mid Drum

Full Drum

1st Layer

Full Drum



(lb)

(fpm)



(hp)

(lb)

(kg)

(lb)

(kg)

(lb)

(kg)

(fpm)

(mpm)

(fpm)

(mpm)

4WS9M18

7,000

20

D,E,F

5

7,300

3,312

5,000

2,268

3,800

1,724

21

6.4

41

12.5

4WS9M18

7,000

30

D,E,F

7.5

7,500

3,402

5,200

2,359

4,000

1,815

32

9.8

61

18.6

4WS9M18

10,000

10

D,E,F

5

10,000

4,536

6,900

3,130

5,300

2,405

13

4.0

24

7.3

4WS9M18

10,000

20

D,E,F

7.5

10,000

4,536

6,900

3,130

5,300

2,405

21

6.4

41

12.5

4WS9M18

10,000

30

D,E,F

10

10,000

4,536

6,900

3,130

5,200

2,359

32

9.8

61

18.6

4WS16M20

13,000

15

D,E,F

7.5

13,000

5,897

8,800

3,992

6,700

3,040

14

4.3

26

7.9

4WS16M20

13,000

20

D,E,F

10

13,300

6,033

9,100

4,128

6,900

3,130

18

5.5

35

10.7

4WS16M20

13,000

35

D,E,F

15

13,000

5,897

8,900

4,038

6,700

3,040

35

10.7

68

20.7

4WS16M20

16,000

15

D,E,F

7.5

16,000

7,258

11,100

5,035

8,500

3,856

12

3.7

24

7.3

4WS16M20

16,000

20

D,E,F

10

16,000

7,258

11,100

5,035

8,500

3,856

16

4.9

31

9.4

4WS26M26

22,000

20

D,E,F

15

22,800

10,343

16,700

7,576

13,200

5,988

18

5.5

31

9.4

4WS26M26

22,000

25

D,E,F

20

22,600

10,252

16,500

7,485

13,100

5,943

25

7.6

43

13.1

4WS26M26

22,000

35

D,E,F

25

22,200

10,070

16,300

7,394

12,900

5,852

36

11.0

63

19.2

4WS26M26

26,000

10

D,E,F

10

26,200

11,885

19,400

8,800

15,400

6,986

10

3.0

17

5.2

4WS26M26

26,000

15

D,E,F

15

26,000

11,794

20,200

9,163

16,500

7,485

16

4.9

27

8.2

Motor Codes

A

115 volt

1 phase

B

230 volt

1 phase

D

230 volt

3 phase

E

460 volt

3 phase

F

All other voltages, please contact factory.



Model 4WS26MC Power Winch with Clutch

4WS SERIES

Over 6,000 lbs Capacity  Thern 4WS series power winches feature a combination of helical/worm and spur gearing make these winches ideal for applications requiring secure load control and accurate positioning.

QUICK FACTS

  • Flange style roller bearings
  • Welded steel drum
  • Extended steel drum shaft
  • Wire rope assemblies
  • Flange mounted motor
  • Load holding motor disc brake
  • Dual-stage gearing
  • AMSE compliance
  • 2-Year Limited Warranty

SERIES MODELS

  • 4WS9M18
  • 4WS16M20
  • 4WS26M26
  • Over 6,000 lbs Capacities

Features:

  • Flanged mounted motor Motor is a 230 or 460 volt, 3 phase motor, 60 cycle, IP 54*, TEFC severe duty, reversible, class B or F insulated, continuous duty brake motor. Standard motors comply with relevant standards including NEMA, MG1, ANSI, CSA, IEC1 and ABS.
  • Load holding motor disc brake Brake is spring set, electrically released for positive load control.
  • Dual stage gearing Gearing is comprised of a worm or helical/worm and spur gears, making winches well suited for applications requiring secure load control and accurate positioning. The heat-treated worm or helical/worm gear set provides improved durability and operates in an oil bath, enclosed in a high strength cast iron gear case, SAE class 30. Double-lip oil seals keep oil in and contaminants out. Large capacity bearings ensure long life. Speed reducers meet AGMA standards. Guarded, heat treated spur gearing provides secondary reduction. Grease zerks allow for easy lubrication.
  • Flange style roller bearing Bearings are self-aligning with cast housing to maintain smooth drum rotation.
  • Welded steel drum Drum has outside flange anchors, which allow for uniform winding and helps to extend life of wire rope. Anchors allow cable to be over wound or under wound from either side of the drum.
  • Extended steel drum shaft Captures both ends in a fabricated steel frame for optimal strength and security.
  • Wire rope assembles Sold separately per customer request.
  • AMSE B30.7 compliance avaliable upon request
  • Two year warranty Industry-leading two-year Move It With Confidence limited warranty.

When ordering, please indicate Model Number and Extensions. Examples: 4WS1M6-1100-20-A (without clutch); 4WS1M6-1100-20-A-C (with clutch).

Weight may vary with motor.

4WS1M6, 4WS3M10, and 4WS6M12 Series Performance Characteristics


Model Number Extensions



Load Rating

Line Speed



Model No.

Load Rating

Load Speed

Motor Codes

Clutch Option

Motor HP

1st Layer

Mid Drum

Full Drum

1st Layer

Full Drum

Approx. Ship Weight 2



(lb)

(kg)

(fpm)

(mpm)



(lb)

(kg)

(lb)

(kg)

(lb)

(kg)

(fpm)

(mpm)

(fpm)

(mpm)

(lb)

(kg)

4WS1M6

800

362

15

4

A,B,D,E,F

C

.5

800

362

550

249

420

190

17

5

33

10

155

71

4WS1M6

800

362

30

9

A,B,D,E,F

C

.75

800

362

550

249

420

190

29

8

55

16

165

75

4WS1M6

800

362

40

12

A,B,D,E,F

C

1

800

362

550

249

420

190

43

13

82

24

175

80

4WS1M6

1,100

498

20

6

A,B,D,E,F

C

.75

1,100

498

800

362

600

272

18

5

32

9

165

75

4WS1M6

1,100

498

30

9

A,B,D,E,F

C

1

1,100

498

800

362

600

272

30

9

54

16

175

80

4WS1M6

1,100

498

40

12

D,E,F

C

1.5

1,100

498

800

362

600

272

44

13

81

24

170

77

4WS1M6

1,500

680

20

6

A,B,D,E,F

C

1

1,500

680

1,000

453

800

362

18

5

32

9

175

80

4WS1M6

1,500

680

30

9

D,E,F

C

1.5

1,500

680

1,100

498

800

362

30

9

54

16

170

77

4WS1M6

1,500

680

40

12

B,D,E,F

C

2

1,500

680

1,100

498

800

362

44

13

81

24

180

82

4WS3M10

2,000

907

15

4

A,B,D,E,F

C

1

2,000

907

1,300

589

1,000

453

14

4

29

8

310

141

4WS3M10

2,000

907

20

6

D,E,F

C

1.5

2,200

997

1,400

635

1,000

453

18

5

39

11

305

139

4WS3M10

2,500

1,133

20

6

B,D,E,F

C

2

2,500

1,133

1,600

725

1,200

544

22

6

46

14

320

146

4WS3M10

3,000

1,360

15

4

D,E,F

C

1.5

3,000

1,360

2,000

907

1,500

680

14

4

29

8

305

139

4WS3M10

3,000

1,360

20

6

B,D,E,F

C

2

3,000

1,360

2,000

907

1,500

680

19

5

39

11

320

146

4WS3M10

3,500

1,587

7

2

A,B,D,E,F

C

1

3,500

1,587

2,300

1,043

1,700

771

8

2

15

4

330

150

4WS3M10

3,500

1,587

15

4

B,D,E,F

C

2

3,700

1,678

2,500

1,133

1,800

816

14

4

29

8

320

146

4WS3M10

3,500

1,587

20

6

D,E,F

C

3

3,700

1,678

2,500

1,133

1,800

816

23

7

46

14

330

150

4WS6M12

3,000

1,360

10

3

D,E,F

C

1.5

3,400

1,542

2,200

997

1,600

725

12

3

25

7

515

234

4WS6M12

3,000

1,360

20

6

B,D,E,F

C

2

3,100

1,406

2,000

907

1,500

680

20

6

42

12

530

241

4WS6M12

4,000

1,814

6

2

A,B,D,E,F

C

1

4,500

2,041

2,900

1,315

2,200

997

6

2

13

4

535

243

4WS6M12

4,000

1,814

10

3

B,D,E,F

C

2

4,500

2,041

2,900

1,315

2,100

952

12

3

25

7

530

241

4WS6M12

4,000

1,814

20

6

D,E,F

C

3

4,000

1,814

2,500

1,133

1,900

861

24

7

50

15

540

245

4WS6M12

6,000

2,721

4

1

A,B,D,E,F

C

1

6,200

2,812

4,000

1,814

3,000

1,360

4

1

8

2

535

243

4WS6M12

6,000

2,721

10

3

D,E,F

C

3

6,400

2,902

4,200

1,905

3,100

1,406

12

3

25

7

540

245

4WS6M12

6,000

2,721

20

6

D,E,F

C

5

6,400

2,902

4,200

1,905

3,100

1,406

24

7

50

15

585

266

4WS9M18, 4WS16M20, and 4WS26M26 Series Performance Characteristics


Model Number Extensions



Load Rating

Line Speed

Model No.

Load Rating

Load Speed

Motor Codes

Motor

1st Layer

Mid Drum

Full Drum

1st Layer

Full Drum



(lb)

(fpm)



(hp)

(lb)

(kg)

(lb)

(kg)

(lb)

(kg)

(fpm)

(mpm)

(fpm)

(mpm)

4WS9M18

7,000

20

D,E,F

5

7,300

3,312

5,000

2,268

3,800

1,724

21

6.4

41

12.5

4WS9M18

7,000

30

D,E,F

7.5

7,500

3,402

5,200

2,359

4,000

1,815

32

9.8

61

18.6

4WS9M18

10,000

10

D,E,F

5

10,000

4,536

6,900

3,130

5,300

2,405

13

4.0

24

7.3

4WS9M18

10,000

20

D,E,F

7.5

10,000

4,536

6,900

3,130

5,300

2,405

21

6.4

41

12.5

4WS9M18

10,000

30

D,E,F

10

10,000

4,536

6,900

3,130

5,200

2,359

32

9.8

61

18.6

4WS16M20

13,000

15

D,E,F

7.5

13,000

5,897

8,800

3,992

6,700

3,040

14

4.3

26

7.9

4WS16M20

13,000

20

D,E,F

10

13,300

6,033

9,100

4,128

6,900

3,130

18

5.5

35

10.7

4WS16M20

13,000

35

D,E,F

15

13,000

5,897

8,900

4,038

6,700

3,040

35

10.7

68

20.7

4WS16M20

16,000

15

D,E,F

7.5

16,000

7,258

11,100

5,035

8,500

3,856

12

3.7

24

7.3

4WS16M20

16,000

20

D,E,F

10

16,000

7,258

11,100

5,035

8,500

3,856

16

4.9

31

9.4

4WS26M26

22,000

20

D,E,F

15

22,800

10,343

16,700

7,576

13,200

5,988

18

5.5

31

9.4

4WS26M26

22,000

25

D,E,F

20

22,600

10,252

16,500

7,485

13,100

5,943

25

7.6

43

13.1

4WS26M26

22,000

35

D,E,F

25

22,200

10,070

16,300

7,394

12,900

5,852

36

11.0

63

19.2

4WS26M26

26,000

10

D,E,F

10

26,200

11,885

19,400

8,800

15,400

6,986

10

3.0

17

5.2

4WS26M26

26,000

15

D,E,F

15

26,000

11,794

20,200

9,163

16,500

7,485

16

4.9

27

8.2

Motor Codes

A

115 volt

1 phase

B

230 volt

1 phase

D

230 volt

3 phase

E

460 volt

3 phase

F

All other voltages, please contact factory.



4WS_WinchDims_diagram





4WS-FleetAngle_diagram

4WS Series — Drum Dimensions

Model Extension

Drum Dia.

Flange Dia.

Drum Width

Flange Angle Distance 1



(in)

(mm)

(in)

(mm)

(in)

(mm)

(ft)

(m)

4WS1M6

2.88

73.1

7.00

177.8

6.00

152.4

10

3.0

4WS3M10

4.50

114.3

11.50

292.1

10.00

254

16

4.8

4WS6M12

5.50

139.7

14.00

355.6

12.00

304.8

20

6.0



Dimensions are for reference only and subject to change without notice. 1 Recommended minimum distance between drum and lead sheave for smooth drum





Click here to view the Electronic Controls options
to Operate Power Winches Remotely


**We suggest you Download  4WS_PowerWinch for additional information
Motor Codes
A 115 volt 1 phase
B 230 volt 1 phase
D 230 volt 3 phase
E 460 volt 3 phase
F All other voltages or questions
please contact sales @ 800-458-3687
Feel Free to email your us your application for a Quote



Electric Drum Control Switches  Order Separately
10L2A1 NEMA 1
10L7E1 NEMA 1
10L2A4 NEMA 4  watertight
10L7E4 NEMA 4  watertight
10P1A46 6 ft pendant control

All Thern Winches and Cranes are sold Without Wire Rope -
Click Here for Wire Rope Selection



4WS1M6-1
MODEL 4WS1M6-1 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - .5 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 800 LBS, LINE SPEED 15 FPM, (115V OR 230V / 1 PH) ** WEIGHT = 155 LBS
Mfg. item #: 4WS1M6-1
THE4WS1M6-1
lease to own for as little as:$67 per month!
155
$3,325.61

479
4WS1M6-2
MODEL 4WS1M6-2 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - .5 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 800 LBS, LINE SPEED 15 FPM, (230V / 460V / 3 PH) ** WEIGHT = 155 LBS
Mfg. item #: 4WS1M6-2
THE4WS1M6-2
lease to own for as little as:$67 per month!
155
$3,339.84

479
4WS1M6-3
MODEL 4WS1M6-3 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - .75 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 800 LBS, LINE SPEED 30 FPM, (115V OR 230V / 1 PH) ** WEIGHT = 165 LBS
Mfg. item #: 4WS1M6-3
THE4WS1M6-3
lease to own for as little as:$73 per month!
165
$3,655.84

479
4WS1M6-4
MODEL 4WS1M6-4 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - .75 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 800 LBS, LINE SPEED 30 FPM, (230V / 460V / 3 PH) ** WEIGHT = 165 LBS
Mfg. item #: 4WS1M6-4
THE4WS1M6-4
lease to own for as little as:$72 per month!
165
$3,604.68

479
4WS1M6-5
MODEL 4WS1M6-5 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 1 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 800 LBS, LINE SPEED 40 FPM, (115V OR 230V / 1 PH) ** WEIGHT = 175 LBS
Mfg. item #: 4WS1M6-5
THE4WS1M6-5
lease to own for as little as:$74 per month!
175
$3,711.66

479
4WS1M6-6
MODEL 4WS1M6-6 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 1 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 800 LBS, LINE SPEED 40 FPM, (230V / 460V / 3 PH) ** WEIGHT = 175 LBS
Mfg. item #: 4WS1M6-6
THE4WS1M6-6
lease to own for as little as:$74 per month!
175
$3,679.10

479
4WS1M6-7
MODEL 4WS1M6-7 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - .75 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 1100 LBS, LINE SPEED 20 FPM, (115V OR 230V / 1 PH) ** WEIGHT = 165 LBS
Mfg. item #: 4WS1M6-7
THE4WS1M6-7
lease to own for as little as:$73 per month!
165
$3,632.59

479
4WS1M6-8
MODEL 4WS1M6-8 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - .75 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 1100 LBS, LINE SPEED 20 FPM, (230V / 460V / 3 PH) ** WEIGHT = 165 LBS
Mfg. item #: 4WS1M6-8
THE4WS1M6-8
lease to own for as little as:$72 per month!
165
$3,590.73

479
4WS1M6-9
MODEL 4WS1M6-9 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 1 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 1100 LBS, LINE SPEED 30 FPM, (115V OR 230V / 1 PH) ** WEIGHT = 175 LBS
Mfg. item #: 4WS1M6-9
THE4WS1M6-9
lease to own for as little as:$74 per month!
175
$3,693.05

479
4WS1M6-10
MODEL 4WS1M6-10 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 1 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 1100 LBS, LINE SPEED 30 FPM, (230V / 460V / 3 PH) ** WEIGHT = 175 LBS
Mfg. item #: 4WS1M6-10
THE4WS1M6-10
lease to own for as little as:$73 per month!
175
$3,655.84

479
4WS1M6-11
MODEL 4WS1M6-11 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 1.5 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 1100 LBS, LINE SPEED 40 FPM, (230V / 460V / 3 PH) ** WEIGHT = 180 LBS
Mfg. item #: 4WS1M6-11
THE4WS1M6-11
lease to own for as little as:$75 per month!
180
$3,753.52

479
4WS1M6-12
MODEL 4WS1M6-12 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 1 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 1500 LBS, LINE SPEED 20 FPM, (115V OR 230V / 1 PH) ** WEIGHT = 175 LBS
Mfg. item #: 4WS1M6-12
THE4WS1M6-12
lease to own for as little as:$75 per month!
175
$3,739.56

479
4WS1M6-13
MODEL 4WS1M6-13 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 1 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 1500 LBS, LINE SPEED 20 FPM, (230V / 460V / 3 PH) ** WEIGHT = 175 LBS
Mfg. item #: 4WS1M6-13
THE4WS1M6-13
lease to own for as little as:$74 per month!
175
$3,683.75

479
4WS1M6-14
MODEL 4WS1M6-14 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 1.5 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 1500 LBS, LINE SPEED 30 FPM, (230V / 460V / 3 PH) ** WEIGHT = 170 LBS
Mfg. item #: 4WS1M6-14
THE4WS1M6-14
lease to own for as little as:$76 per month!
170
$3,818.64

479
4WS1M6-15
MODEL 4WS1M6-15 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 2 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 1500 LBS, LINE SPEED 40 FPM, (230V / 1 PH ONLY) ** WEIGHT = 180 LBS
Mfg. item #: 4WS1M6-15
THE4WS1M6-15
lease to own for as little as:$82 per month!
180
$4,120.96

479
4WS1M6-16
MODEL 4WS1M6-16 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 2 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 1500 LBS, LINE SPEED 40 FPM, (230V / 460V / 3 PH) ** WEIGHT = 180 LBS
Mfg. item #: 4WS1M6-16
THE4WS1M6-16
lease to own for as little as:$81 per month!
180
$4,037.24

479
CO4WS1M6
CLUTCH OPTION FOR 4WS1M6 SERIES (FOR HORIZONTAL PULLING ONLY) FOR 4WS - WORM/SPUR GEAR POWER WINCHES -
Mfg. item #: CO4WS1M6
THECO4WS1M6
Ships FREE via UPS to lower 48 states.5
$1,272.00

479
4WS3M10-1
MODEL 4WS3M10-1 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 1 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 2000 LBS, LINE SPEED 15 FPM, (115V OR 230V / 1 PH), ** WEIGHT = 310 LBS
Mfg. item #: 4WS3M10-1
THE4WS3M10-1
lease to own for as little as:$95 per month!
310
$4,735.53

479
4WS3M10-2
MODEL 4WS3M10-2 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 1 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 2000 LBS, LINE SPEED 15 FPM, (230V / 460V / 3 PH), ** WEIGHT = 310 LBS
Mfg. item #: 4WS3M10-2
THE4WS3M10-2
lease to own for as little as:$94 per month!
310
$4,694.15

479
4WS3M10-3
MODEL 4WS3M10-3 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 1.5 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 2000 LBS, LINE SPEED 20 FPM, (230V / 460V / 3 PH), ** WEIGHT = 305 LBS
Mfg. item #: 4WS3M10-3
THE4WS3M10-3
lease to own for as little as:$96 per month!
305
$4,799.89

479
4WS3M10-4
MODEL 4WS3M10-4 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 2 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 2500 LBS, LINE SPEED 20 FPM, (230V / 1 PH ONLY) ** WEIGHT = 305 LBS
Mfg. item #: 4WS3M10-4
THE4WS3M10-4
lease to own for as little as:$102 per month!
305
$5,098.74

479
4WS3M10-5
MODEL 4WS3M10-5 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 2 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 2500 LBS, LINE SPEED 20 FPM, (230V / 460V / 3 PH), ** WEIGHT = 320 LBS
Mfg. item #: 4WS3M10-5
THE4WS3M10-5
lease to own for as little as:$100 per month!
320
$5,015.98

479
4WS3M10-6
MODEL 4WS3M10-6 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 1.5 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 3000 LBS, LINE SPEED 15 FPM, (230V / 460V / 3 PH), ** WEIGHT = 305 LBS
Mfg. item #: 4WS3M10-6
THE4WS3M10-6
lease to own for as little as:$97 per month!
305
$4,868.86

479
4WS3M10-7
MODEL 4WS3M10-7 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 2 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 3000 LBS, LINE SPEED 20 FPM, (230V / 1 PH ONLY) ** WEIGHT = 320 LBS
Mfg. item #: 4WS3M10-7
THE4WS3M10-7
lease to own for as little as:$103 per month!
320
$5,163.10

479
4WS3M10-8
MODEL 4WS3M10-8 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 2 HP - WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 3000 LBS, LINE SPEED 20 FPM, (230V / 460V / 3 PH), ** WEIGHT = 320 LBS
Mfg. item #: 4WS3M10-8
THE4WS3M10-8
lease to own for as little as:$102 per month!
320
$5,084.95

479
4WS6M12-1
MODEL 4WS6M12-1 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 1.5 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 3000 LBS, LINE SPEED 10 FPM, (230V / 460V / 3 PH), ** WEIGHT = 515 LBS
Mfg. item #: 4WS6M12-1
THE4WS6M12-1
lease to own for as little as:$150 per month!
515
$7,503.28

479
4WS6M12-2
MODEL 4WS6M12-2 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 2 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 3000 LBS, LINE SPEED 20 FPM, (230V / 1 PH ONLY) ** WEIGHT = 530 LBS
Mfg. item #: 4WS6M12-2
THE4WS6M12-2
lease to own for as little as:$156 per month!
530
$7,792.93

479
4WS6M12-3
MODEL 4WS6M12-3 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 2 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 3000 LBS, LINE SPEED 20 FPM, (230V / 460V / 3 PH), ** WEIGHT = 530 LBS
Mfg. item #: 4WS6M12-3
THE4WS6M12-3
lease to own for as little as:$154 per month!
530
$7,719.37

479
4WS3M10-9
MODEL 4WS3M10-9 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 1 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 3500 LBS, LINE SPEED 7 FPM, (115V OR 230V / 1 PH), ** WEIGHT = 320 LBS
Mfg. item #: 4WS3M10-9
THE4WS3M10-9
lease to own for as little as:$99 per month!
320
$4,960.81

479
4WS3M10-10
MODEL 4WS3M10-10 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 1 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 3500 LBS, LINE SPEED 7 FPM, (230V / 460V / 3 PH), ** WEIGHT = 320 LBS
Mfg. item #: 4WS3M10-10
THE4WS3M10-10
lease to own for as little as:$97 per month!
320
$4,868.86

479
4WS3M10-11
MODEL 4WS3M10-11 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 2 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 3500 LBS, LINE SPEED 15 FPM, (230V / 1 PH ONLY) ** WEIGHT = 320 LBS
Mfg. item #: 4WS3M10-11
THE4WS3M10-11
lease to own for as little as:$105 per month!
320
$5,264.25

479
4WS3M10-12
MODEL 4WS3M10-12 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 2 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 3500 LBS, LINE SPEED 15 FPM, (230V / 460V / 3 PH), ** WEIGHT = 320 LBS
Mfg. item #: 4WS3M10-12
THE4WS3M10-12
lease to own for as little as:$104 per month!
320
$5,181.50

479
4WS3M10-13
MODEL 4WS3M10-13 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 3 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 3500 LBS, LINE SPEED 20 FPM, (230V / 460V / 3 PH), ** WEIGHT = 330 LBS
Mfg. item #: 4WS3M10-13
THE4WS3M10-13
lease to own for as little as:$107 per month!
330
$5,347.01

479
CO4WS3M10
CLUTCH OPTION FOR 4WS1M10 SERIES (FOR HORIZONTAL PULLING ONLY) FOR 4WS - WORM/SPUR GEAR POWER WINCHES -
Mfg. item #: CO4WS3M10
THECO4WS3M10
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment8
$1,310.40

479
4WS6M12-4
MODEL 4WS6M12-4 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 1 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 4000 LBS, LINE SPEED 6 FPM, A,(230V / 1 PH ONLY) ** WEIGHT = 535 LBS
Mfg. item #: 4WS6M12-4
THE4WS6M12-4
lease to own for as little as:$158 per month!
535
$7,907.87

479
4WS6M12-5
MODEL 4WS6M12-5 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 1 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 4000 LBS, LINE SPEED 6 FPM, (230V / 460V / 3 PH), ** WEIGHT = 535 LBS
Mfg. item #: 4WS6M12-5
THE4WS6M12-5
lease to own for as little as:$156 per month!
535
$7,815.92

479
4WS6M12-6
MODEL 4WS6M12-6 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 2 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 4000 LBS, LINE SPEED 10 FPM, (230V / 1 PH ONLY) ** WEIGHT = 530 LBS
Mfg. item #: 4WS6M12-6
THE4WS6M12-6
lease to own for as little as:$160 per month!
530
$7,981.43

479
4WS6M12-7
MODEL 4WS6M12-7 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 2 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 4000 LBS, LINE SPEED 10 FPM, (230V / 460V / 3 PH), ** WEIGHT = 530 LBS
Mfg. item #: 4WS6M12-7
THE4WS6M12-7
lease to own for as little as:$158 per month!
530
$7,889.48

479
4WS6M12-8
MODEL 4WS6M12-8 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 3 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 4000 LBS, LINE SPEED 20 FPM, (230V / 460V / 3 PH), ** WEIGHT = 540 LBS
Mfg. item #: 4WS6M12-8
THE4WS6M12-8
lease to own for as little as:$162 per month!
540
$8,096.00

479
4WS6M12-9
MODEL 4WS6M12-9 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 1 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 6000 LBS, LINE SPEED 4 FPM, (115V OR 230V / 1 PH), ** WEIGHT = 535 LBS
Mfg. item #: 4WS6M12-9
THE4WS6M12-9
lease to own for as little as:$165 per month!
535
$8,256.00

479
4WS6M12-10
MODEL 4WS6M12-10 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 1 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 6000 LBS, LINE SPEED 4 FPM, (230V / 460V / 3 PH), ** WEIGHT = 535 LBS
Mfg. item #: 4WS6M12-10
THE4WS6M12-10
lease to own for as little as:$163 per month!
535
$8,150.86

479
4WS6M12-11
MODEL 4WS6M12-11 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 3 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 6000 LBS, LINE SPEED 10 FPM, (230V / 460V / 3 PH), ** WEIGHT = 540 LBS
Mfg. item #: 4WS6M12-11
THE4WS6M12-11
lease to own for as little as:$168 per month!
540
$8,406.86

479
4WS6M12-12
MODEL 4WS6M12-12 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 5 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 6000 LBS, LINE SPEED 20 FPM, (230V / 460V / 3 PH), ** WEIGHT = 585 LBS
Mfg. item #: 4WS6M12-12
THE4WS6M12-12
lease to own for as little as:$176 per month!
585
$8,818.28

479
CO4WS6M12
CLUTCH OPTION FOR 4WS1M12 SERIES (FOR HORIZONTAL PULLING ONLY) FOR 4WS - WORM/SPUR GEAR POWER WINCHES -
Mfg. item #: CO4WS6M12
THECO4WS6M12
Ships for $121 to most commercial or terminal locations in 48 States 12
$1,608.00

479
4WS9M18-1
MODEL 4WS9M18-1 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 5 HP WITH BRAKE, NO CONTROLS , CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 7000 LBS, LINE SPEED 20 FPM, (230V / 460V / 3 PH), ** WEIGHT = 1098 LBS
Mfg. item #: 4WS9M18-1
THE4WS9M18-1
lease to own for as little as:$228 per month!
1098
$11,382.86

479
4WS9M18-2
MODEL 4WS9M18-2 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 7.5 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 7000 LBS, LINE SPEED 30 FPM, (230V / 460V / 3 PH), ** WEIGHT = 1095 LBS
Mfg. item #: 4WS9M18-2
THE4WS9M18-2
lease to own for as little as:$240 per month!
1095
$12,013.71

479
4WS9M18-3
MODEL 4WS9M18-3 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 5 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 10000 LBS, LINE SPEED 10 FPM, (230V / 460V / 3 PH), ** WEIGHT = 1098 LBS
Mfg. item #: 4WS9M18-3
THE4WS9M18-3
lease to own for as little as:$228 per month!
1098
$11,382.86

479
4WS9M18-4
MODEL 4WS9M18-4 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 7.5 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 10000 LBS, LINE SPEED 20 FPM, (230V / 460V / 3 PH), ** WEIGHT = 1095 LBS
Mfg. item #: 4WS9M18-4
THE4WS9M18-4
lease to own for as little as:$240 per month!
1095
$12,013.71

479
4WS9M18-5
MODEL 4WS9M18-5 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 10 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 10000 LBS, LINE SPEED 30 FPM, (230V / 460V / 3 PH), ** WEIGHT = 1151 LBS
Mfg. item #: 4WS9M18-5
THE4WS9M18-5
lease to own for as little as:$260 per month!
1151
$12,982.86

479
4WS16M20-1
MODEL 4WS16M20-1 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 7.5 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 13000 LBS, LINE SPEED 15 FPM, (230V / 460V / 3 PH), ** WEIGHT = 1550 LBS
Mfg. item #: 4WS16M20-1
THE4WS16M20-1
lease to own for as little as:$389 per month!
1550
$19,472.66

479
4WS16M20-2
MODEL 4WS16M20-2 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 10 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 13000 LBS, LINE SPEED 20 FPM, (230V / 460V / 3 PH), ** WEIGHT = 1610 LBS
Mfg. item #: 4WS16M20-2
THE4WS16M20-2
lease to own for as little as:$417 per month!
1610
$20,854.48

479
4WS16M20-3
MODEL 4WS16M20-3 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 15 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 13000 LBS, LINE SPEED 35 FPM, (230V / 460V / 3 PH), ** WEIGHT = 1650 LBS
Mfg. item #: 4WS16M20-3
THE4WS16M20-3
lease to own for as little as:$454 per month!
1650
$22,681.75

479
4WS16M20-4
MODEL 4WS16M20-4 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 7.5 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 16000 LBS, LINE SPEED 15 FPM, (230V / 460V / 3 PH), ** WEIGHT = 1550 LBS
Mfg. item #: 4WS16M20-4
THE4WS16M20-4
lease to own for as little as:$389 per month!
1550
$19,472.66

479
4WS16M20-5
MODEL 4WS16M20-5 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 10 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 16000 LBS, LINE SPEED 20 FPM, (230V / 460V / 3 PH), ** WEIGHT = 1610 LBS
Mfg. item #: 4WS16M20-5
THE4WS16M20-5
lease to own for as little as:$417 per month!
1610
$20,854.48

479
4WS26M26-1
MODEL 4WS26M26-1 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 15 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 22000 LBS, LINE SPEED 20 FPM, (230V / 460V / 3 PH), ** WEIGHT = 3110 LBS
Mfg. item #: 4WS26M26-1
THE4WS26M26-1
lease to own for as little as:$707 per month!
3110
$35,372.61

479
4WS26M26-2
MODEL 4WS26M26-2 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 20 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 22000 LBS, LINE SPEED 25 FPM, (230V / 460V / 3 PH), ** WEIGHT = 3290 LBS
Mfg. item #: 4WS26M26-2
THE4WS26M26-2
lease to own for as little as:$740 per month!
3290
$36,981.70

479
4WS26M26-3
MODEL 4WS26M26-3 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 25 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 22000 LBS, LINE SPEED 35 FPM, (230V / 460V / 3 PH), ** WEIGHT = 3350 LBS
Mfg. item #: 4WS26M26-3
THE4WS26M26-3
lease to own for as little as:$797 per month!
3350
$39,863.51

479
4WS26M26-4
MODEL 4WS26M26-4 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 10 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 26000 LBS, LINE SPEED 10 FPM, (230V / 460V / 3 PH), ** WEIGHT = 3070 LBS
Mfg. item #: 4WS26M26-4
THE4WS26M26-4
lease to own for as little as:$679 per month!
3070
$33,936.26

479
4WS26M26-5
MODEL 4WS26M26-5 4WS SERIES - WORM/SPUR GEAR POWER WINCHES - 15 HP WITH BRAKE, NO CONTROLS, CLUTCH OPTION SOLD SEPRTATELY, , LOAD RATING 26000 LBS, LINE SPEED 15 FPM, (230V / 460V / 3 PH), ** WEIGHT = 3110 LBS
Mfg. item #: 4WS26M26-5
THE4WS26M26-5
lease to own for as little as:$707 per month!
3110
$35,372.61

479
10L2A1
NEMA 1 - ELECTRIC DRUM CONTROL SWITCHES ** UPTO 3 HP (MUST INDICATE VOLTAGE & PHASE) - WEIGHT = 3 LBS
Mfg. item #: 10L2A1
THE10L2A1
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$430.50

248
10L7E1
NEMA 1 - ELECTRIC DRUM CONTROL SWITCHES ** UPTO 7.5 HP (MUST INDICATE VOLTAGE & PHASE) - WEIGHT = 3 LBS
Mfg. item #: 10L7E1
THE10L7E1
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$571.20

248
10L2A4
NEMA 4 _ WATERTIGHT - ELECTRIC DRUM CONTROL SWITCHES ** UPTO 3 HP (MUST INDICATE VOLTAGE & PHASE) - WEIGHT = 7 LBS
Mfg. item #: 10L2A4
THE10L2A4
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$646.80

248
10L7E4
NEMA 4 _ WATERTIGHT - ELECTRIC DRUM CONTROL SWITCHES ** UPTO 7.5 HP (MUST INDICATE VOLTAGE & PHASE) - WEIGHT = 7 LBS
Mfg. item #: 10L7E4
THE10L7E4
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$1,045.80

248
10P1A46
6 FT PENDANT CONTROL - ELECTRIC DRUM CONTROL SWITCHES
Mfg. item #: 10P1A46
THE10P1A46
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$358.75

248
Copyright © 2023 Smith-Hamilton, Inc
0.042 231122 13:54
