Powermatic 511- 62" Panel Saw

511 Panel Saw with 4" Dust Port

Powermatic Model 1510007

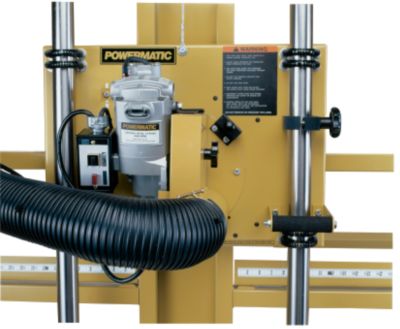

If you work with sheet goods, this 511 Vertical Panel Saw has plenty of power for the most demanding cuts. The carriage assembly is designed with eight unique guide roller assemblies allowing it to glide effortlessly along the stainless steel rails. This Vertical Panel Saw features a powerful 3HP worm-drive motor which rotates in the carriage, adding the versatility to perform rip cuts. The solid aluminum rollers with outside support bracket assure smooth feeding of stock and perfect 90° cuts every time. This saw will handle panels up to 5 feet tall. It also includes horizontal and vertical scales, an adjustable stop and casters for mobility. The true counterweight system keeps the saw carriage in the desired position when loading or unloading panels. With the innovative dual dust collection ports and nylon brush surrounding the blade, this saw provides superior dust collection from the front and the rear side of the panel.

 The Powermatic 511 Panel Saw with 4" Dust Port
has a 5 Year warranty

  • Stainless steel guide tubes with eight guide roller assemblies provide smooth carriage glide
  • Dual 4" dust ports with nylon brush surrounding blade for front and rear dust exhaust
  • True counterweight system keeps the carriage where you position it while loading stock

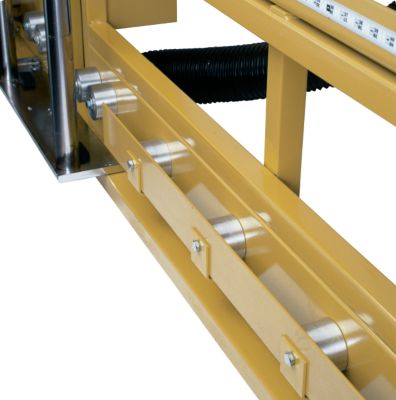

  • Solid aluminum rollers with outside support brackets for square cuts
  • Casters for easy mobility
  • 3HP Worm drive saw motor rotates in carriage to perform rip cuts
  • Heavy-duty welded one-piece steel frame prevents vibration, ensures solid support

Standard Equipment

  • Motor
  • Casters
  • Adjustable leg assembly
  • Adjustable work stop
    Note: Saw blade not included

Optional Accessories

  • 2387007 Adaptor assembly for dust collector

Detailed Specifications
Arbor Diameter 5/8 "
Blade Diameter 8 "
Brand Powermatic
Cut Accuracy Straight and Square 1/64 "
Dust Port Diameter Outer Dimension 4 "
Height 86 inch
Length 124.5 inch
Maximum Cross Cut Length 62 "
Maximum Cut Thickness 1½ "
Maximum Rip Length Unlimited "
Model Number 511
Motor Current 13 A
Motor HP 3 HP
Motor Phase 1 Ph
Motor Voltage 120 V
Net Weight 435 pound
Overall Dimensions 120 x 38 x 86
Part Number 1510007
Width 39.5 inch
1510007 Manual

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
