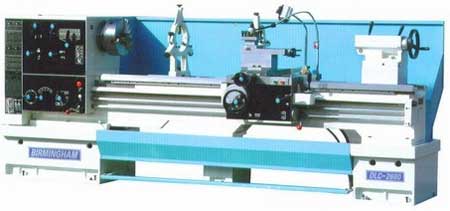

Birmingham DLC-1640/1660/1680/16120 High

Features:

• All headstock gears and shafts are hardened and precision ground
• Powerful 10HP drive motor delivers power through all spindle speeds
• Spindle gears, shafts & bearings are lubricated by pumped bath of oil
• Induction hardened and ground bedways
• 4 1/8" Spindle bore with D1-8 camlock spindle nose
• 16 Spindle speeds, 26-1,700 rpm
• Rapid power traverse to carriage and cross slide
• Multiple disc clutch for efficent spindle starting and reversing
• Equipped with leadscrew cover

There are no further details.

Specifications
	Item	Model	DLC-1640/1660/1680/16120
Capacities	Swing over bed (in)		16"
	Swing over cross slide (in)		9"
	Swing over gap  (in)		27 1/2"
	Length of gap  (in)		10"
	Distance between centers (in)		40" / 60" / 80" / 120"
Headstock Spindle	Spindle bore (in)		4 1/8"
	Spindle nose type (Camlock)		D1-8
	Spindle taper		MT-6
	Spindle speeds		16
	Spindle speeds range (RPM)		26 - 1,700 rpm
	Spindle center to bedway (in)		8 5/8"
Gearbox	Threads per inch (No.) range (T.P.I.)		(42) 7/16 - 80
	Metric threads (No.) range (mm)		(37) 0.5 - 80
	Module threads (No.) range (mm)		(32) 0.25 -40
	Diametral threads (No.) range (mm)		(42) 7/8 - 160
	Long. feeds (No.) range (in/rev)		(45) 0.0017 - 0.058
	Cross feeds (No.) range (in/rev)		(45) 0.0009 - 0.029
	Leadscrew diameter (in)		1 9/16"
	Leadscrew TPI		2
	Feed rod diameter (in)		1"
Carriage & Apron	Tooling size (in)		1" x 1"
	Compound slide travel (in)		5 7/8"
	Cross slide travel (in)		13 3/4"
Tailstock	Tailstock taper		MT-5
	Quill travel (in)		6"
	Quill diameter (in)		3"
Motors	Main Drive (HP)		10 HP, 220/440V, 3ph
Miscellaneous	Maximum workpiece weight (lbs)		1,100 lbs
	Steady rest capacity Min/Max (in)		1 1/8" - 6 1/4"
	Follow rest capacity Min/Max (in)		3/4" - 3 1/8"
	Width of bed (in)		15 1/2"
	Overall dimensions (L x W x H/in)		102" / 122" / 142" / 182" x 47" x 54"
	Net weight approx. (lbs)		4,620 / 4, 730 / 4, 980 / 6,680

There is no further information.

Standard Accessories 12" 3-jaw chuck with reversible jaws 16" 4-jaw chuck 15" Face plate Steady and follow rest Dead centers, MT-4 Center sleeve, MT-6 to MT-4

Standard Accessories 4-way tool post Threading dial Change gears Halogen work lamp Leveling pads Toolbox with tools

Optional accessories Taper turning attachment Quick change tool post & holders
