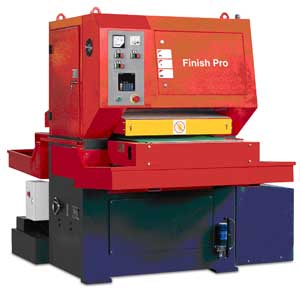

FINISH PRO Model FP-2560 Wet Deburring Machine

We are pleased to offer for your consideration this proposal on the Finish Pro Model FP-2560W Wet type Line Graining/Deburring/Finishing machine. This equipment is available as follows:

Standard Features:

  • Heavy Duty Air Dryer

  • Variable Speed Conveyor

  • Motorized Table Lift with Digital Readout

  • Infeed & Outfeed Water Squeezing Rollers

  • Automatic Coolant / Filter System w/ Auto Paper Feeding

  • Super large 8" contact drum for perfect graining performance

  • Stainless steel construction where needed

  • Conveyor Forward & Reverse

  • Belt Safety Overtravel Switches

  • Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to

  • Re-adjust the tracking system when running extremely out of parallel belts

  • 4-Jackscrew Table Support

  • Conveyor Belt Tracking System

  • One Year Industrial Warranty for parts


  • Safety System with Disc Brake. Air operated disc brakes to stop sanding head in

  • 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device

  • Table Height Digital Readout

  • Load Meter indicates percentage of full motor loads

  • Belt change door electrically interlocked for safety purpose

  • Air tensioning of belt for accurate tensioning & compensation of belt stretch

  • Double Infeed & Outfeed Pinch Rolls with protective guards

  • Quick release sanding head support for fast belt change

  • No dust collecting system required

  • Emergency stops from almost any point

  • Noise level bellows 80 dba

  • Operation manual, control tags, danger signs, and warning labels in English on machine

  • 208/230 or 460 Volt, 3-Phase

Model Model  FP-2560W
Max. Part Width 24"
Abrasive Belt Size 25" x 60"
Contact Roller Size 8" Dia.
Passline Height 34" - 37"
Max. Thickness Capacity 3-1/8"
Conveyor Drive Speeds 8-40 FPM
Infeed Conveyor Length 20"
Jackscrews Heavy Duty  (4 ) jackscrews
Main Motor 10 HP, 230V / 460V, 3-Ph
Conveyor Motor  1 HP, 230V / 460V, 3-Ph
Table Lifting Motor 1 HP, 230V / 460V, 3-Ph
Coolant /filter Motor 1 HP, 230V/ 460V, 3-Ph
Air dryer Motor 3/4 HP , 230V/ 460V, 3-Ph
Net Weight, approx. 3,850 LBS
Machine Dimensions, LxWxH 71" x 65" x 73"
There is no further information.
There are no listed accessories.
Mfg. item #: FP-2560W
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price
