IMER Masonry 350 Gas Up


imer masonry 350 saw

At a Glance
Specifications
More Information
IMER 350 SAW MODELS

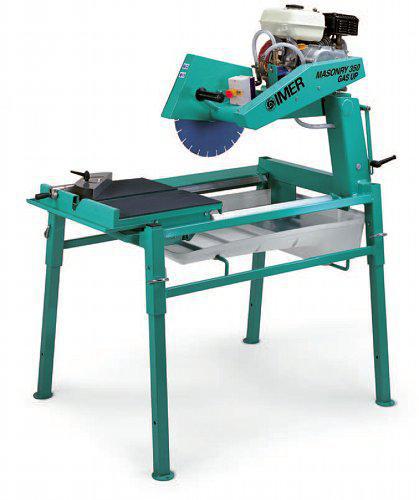

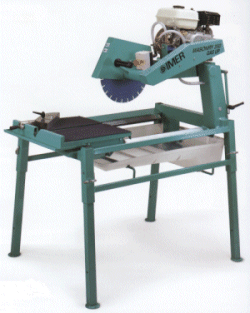

MASONRY 350 Gas Up! 14inch
View Equipment Manual

Brick, Block and Paver Saw
The new MASONRY 350 Gas Up is destined to become the standard by which all 14 inch gas powered saws are judged. Vibration free performance combined with unsurpassed accuracy make this a saw for every jobsite!

Versatility
Plunge cuts are smooth and precise as the cutting head pivots on sealed roller bearings.

Innovation
By using a Honda motor equipped with gearbox drive we have eliminated the old timey jackshaft reduction system. All the vibration and maintenance hassles of the jackshaft belt drive system will not be missedÃ¢â¬Â¦ hasta la vista baby!

Tips for Sawing
WD-40 is great stuff! You can safely spray it all over your saw. It is great to clean and lubricate rollers, travel bars, and pivot points.

Specifications
Blade dia	14 inch
Blade shaft dia	1 inch
Max. cutting length	18 inch / 22 inch w/plunge cut
Max. Cutting depth 90/45 degrees	4 3/4 inch / 2 1/2 inch
Cutting table dim.	20 x 16 inch
Weight (palletized)	230 (250) lbs
Engine rating	5.5 honda
Blade speed	2,450 rpm
Water pan capacity	8 gal
Self-priming centrifugal pump	3 gpm
Operating Dimensions (boxed)
Length inches	47 (47)
Height inches	34 (34)
Width inches	58 (54)

MASONRY 350 Gas Up 14 inch
Versatility The rigid single arm design allows clearance for all sorts of irregular shaped materials.	BLADE NOT INCLUDED
Power The Honda 5.5 hp oil bath clutch engine provides smooth consistent power cut after cut, day after day.
Toughness The water pan is made of an extremely strong thermal plastic material, light yet very impact resistant. This pan can take it.
Quality The Box steel frame combined with the dual rail cutting tray roller system ensures an accurate saw for years to come.
Accuracy The protractor is a full sized stainless steel constructed guide, the cam actuated locking mechanism keeps the protractor in place at all times, accuracy is guaranteed.
Wheelkit Standard The legs slide up and away for easy transport and storage. While the wheelkit attaches to the rear legs, this allows the saw to be rolled around by one person.

No longer available
