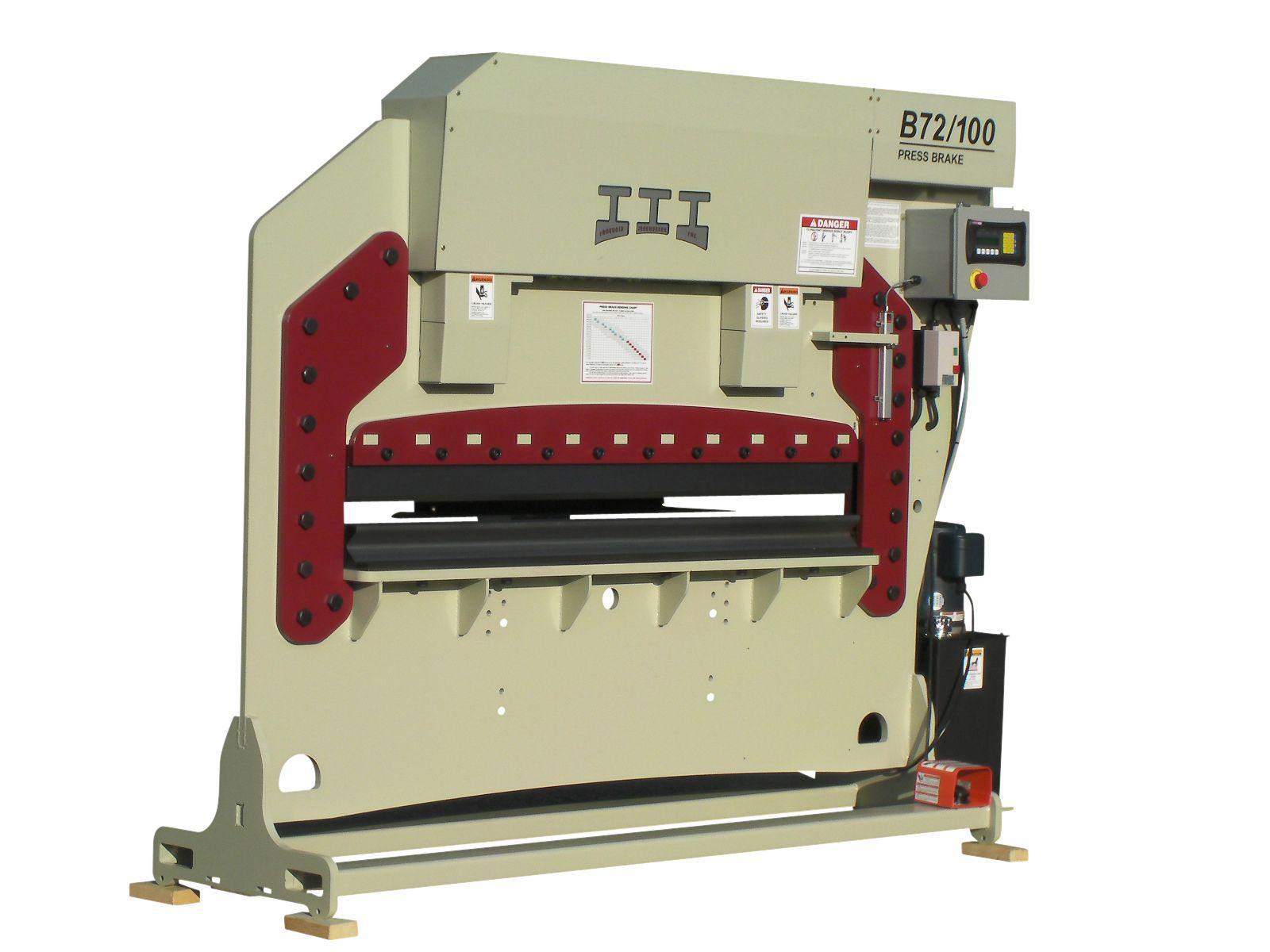

Iroquois B72/100 Pressbrake


b48100_09-sm.jpg b48100_10-sm.jpg b48100_11-sm.jpg b48100_13-th.jpg b48100_12-sm.jpg
Click image to enlarge



Iroquois B60/100

100 Ton Capacity.  Rated for bending six feet of 1/4 inch mild steel with a 3 inch opening, or 28 inch of 3/8 inch mild steel in a 3 inch die opening.

This simple, no nonsense press brake has a powerful hydro/mechanical ram system that is capable of up to 100 tons!  Two stage hydraulic system allows for reasonably fast bending speeds with smaller single phase motors.  Standard machine features a easy to use electric stroke control and is a perfect choice for custom fabricating and short run production where complicated electronic control systems are not necessary and where quick, convenient use is a must.  Production controls, die and die clamp options, backgauge, and custom speeds, tonnages, and colors also available. Proudly produced in the USA and CANADA!

Featrures:

  • 74 inch Opening
  • 3.75 inch Vertical Travel
  • Hydro Mechanical Action
  • Tonnage: 70 Tons top of stroke up to 100 Tons on lower end
  • Standard Limit Switch/Foot Pedal Control
  • Cantilever Adjustment
  • 10 inch Die Table with Adjustable Rails holds many types of tooling
  • All replaceable bushings and wear parts
  • Two stage Hydraulic Pump
  • Single or Three phase (your choice)
  • 26 strokes per Minute (10ga) with 5 Hp (other pumps and speeds available).
  • Accepts Standard American Tooling (one die set included – call for options)
  • FOOTPRINT – 112W X 32D inch
  • HEIGHT – 80 icnh
  • WEIGHT – 4500LBS (APPROX)

Popular Options

  • Cycle Control (PLC w/keypad and job memory)
  • Backgauge, Front Operated Manual
  • Backgauge, CNC (requires keypad control)
  • 1 inch, 1.5 inch, 2 inch, and 3 inch 4-way die (other sizes available)
100 Ton 72" Press Brake
B72/100 100 Ton 72" Press Brake
B72/100BGC Powered Backgauge with NC Control - B72/100 PRESS BRAKE ACCESSORIES
B72/100BGM Manual Backgauge with DRO - B72/100 PRESS BRAKE ACCESSORIES
B72/100FW 1î, 1.5î, 2î, & 3î 4-way die upgrade - B72/100 PRESS BRAKE ACCESSORIES **4-way die price is the cost of upgrading from the included die set. Does not include both standard & 4-way dies.
B72/100KPC Digital Keypad Control Upgrade - B72/100 PRESS BRAKE ACCESSORIES **Previously "Cycle control w/keypad, job mem., & foot ped."



B72/100
CALL IROQUOIS DIRECTLY @ 605-546-2078 FOR PRICING
Mfg. item #: B72/100
IRQB72/100
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

265
B72/100BGC
CALL IROQUOIS DIRECTLY @ 605-546-2078 FOR PRICING
Mfg. item #: B72/100BGC
IRQB72/100BGC
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

265
B72/100BGM
CALL IROQUOIS DIRECTLY @ 605-546-2078 FOR PRICING
Mfg. item #: B72/100BGM
IRQB72/100BGM
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

265
B72/100FW
CALL IROQUOIS DIRECTLY @ 605-546-2078 FOR PRICING
Mfg. item #: B72/100FW
IRQB72/100FW
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

265
B72/100KPC
CALL IROQUOIS DIRECTLY @ 605-546-2078 FOR PRICING
Mfg. item #: B72/100KPC
IRQB72/100KPC
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

265
