Iroquois B96/150 Pressbrake


b48100_11-sm.jpg b48100_13-th.jpg b48100_12-sm.jpg b48100_09-sm.jpg b48100_10-sm.jpg
Click image to enlarge

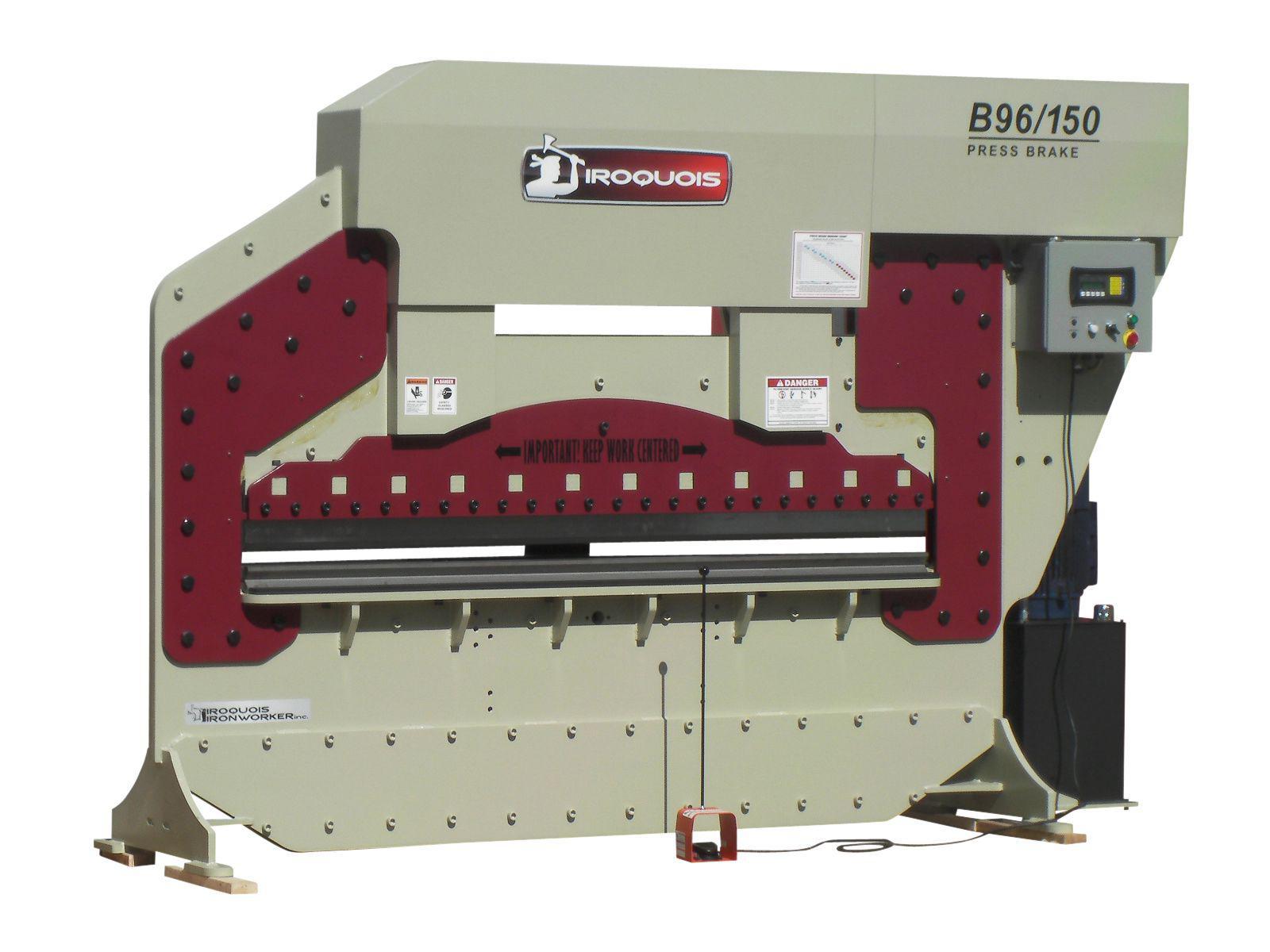

Iroquois B96/150

150 Ton Capacity.  Rated for bending eight feet of 1/4 inch mild steel with a 2.5 inch opening, or 44 inch of 1/2 inch mild steel in a 5 inch die opening.

This simple, no nonsense press brake has a powerful hydro/mechanical ram system that is capable of up to 150 tons!  Comes standard with massive 25Hp (230/460v 3ph) power unit or also available with a single phase, two stage hydraulic system.  Standard machine features a easy to use electric stroke control and is a perfect choice for custom fabricating and short run production where complicated electronic control systems are not necessary and where quick, convenient use is a must.  Production controls, die and die clamp options, backgauge, and custom speeds, tonnages, and colors also available. Proudly produced in the USA and CANADA!

Features:

  • 98 inch Opening
  • 12 inch Open Height
  • 6 inch Vertical Travel
  • Hydro Mechanical Action
  • Tonnage: 130 Tons top of stroke to 150+ Tons on bottom end

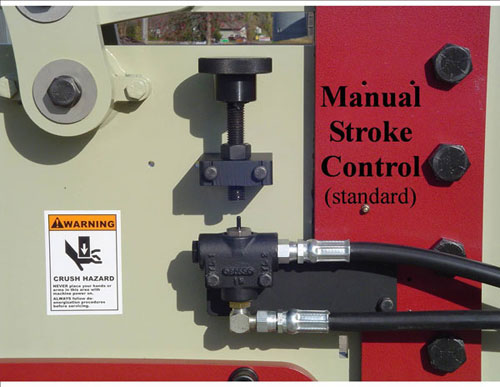

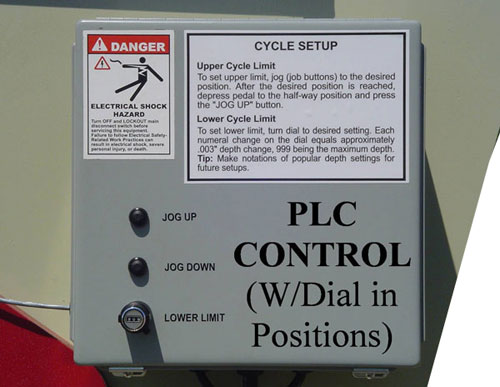

  • Standard Limit Switch/Foot Pedal Control
  • Cantilever Adjustment
  • 10 inch Die Table with Adjustable Rails holds many types of tooling
  • All replaceable bushings and wear parts
  • 25Hp 230 or 460 Three phase (7.5Hp single phase available using two stage pump)
  • Accepts Standard American Tooling (one die set included – call for options)
  • FOOTPRINT – 144W X 38D inch
  • HEIGHT -92 inch
  • WEIGHT – 8500LBS (APPROX)

Popular Options

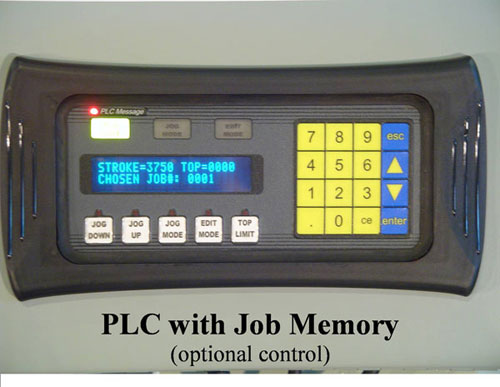

  • Cycle Control (PLC w/keypad and job memory)

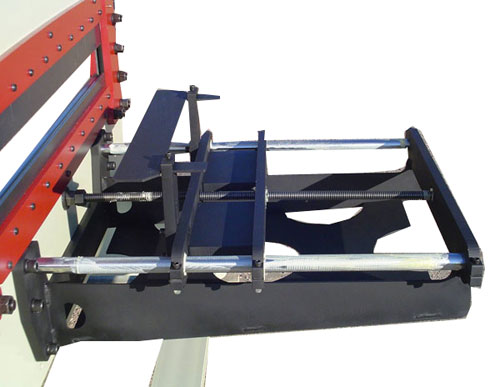

  • Backgauge, Front Operated Manual
  • Backgauge, CNC (requires keypad control)

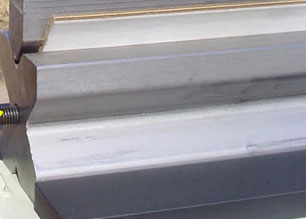

  • 1, 1.5, 2, and 3 inch 4-way die (other sizes available)
150 Ton 96" Press Brake
B96/150 150 Ton 96" Press Brake
B96/150BGC Powered Backgauge with NC Control - B96/150 PRESS BRAKE ACCESSORIES
B96/150BGM Manual Backgauge with DRO - B96/150 PRESS BRAKE ACCESSORIES
B96/150FW 1î, 1.5î, 2î, & 3î 4-way die upgrade - B96/150 PRESS BRAKE ACCESSORIES **4-way die price is the cost of upgrading from the included die set. Does not include both standard & 4-way dies.
B96/150KPC Digital Keypad Control Upgrade - B96/150 PRESS BRAKE ACCESSORIES **Previously "Cycle control w/keypad, job mem., & foot ped."



B96/150
CALL IROQUOIS DIRECTLY @ 605-546-2078 FOR PRICING
Mfg. item #: B96/150
IRQB96/150
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

263
B96/150BGC
CALL IROQUOIS DIRECTLY @ 605-546-2078 FOR PRICING
Mfg. item #: B96/150BGC
IRQB96/150BGC
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

263
B96/150BGM
CALL IROQUOIS DIRECTLY @ 605-546-2078 FOR PRICING
Mfg. item #: B96/150BGM
IRQB96/150BGM
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

263
B96/150FW
CALL IROQUOIS DIRECTLY @ 605-546-2078 FOR PRICING
Mfg. item #: B96/150FW
IRQB96/150FW
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

263
B96/150KPC
CALL IROQUOIS DIRECTLY @ 605-546-2078 FOR PRICING
Mfg. item #: B96/150KPC
IRQB96/150KPC
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

263
