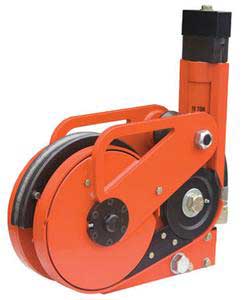

MultiQuip JB11090 Rebar Bender

JB11090 Rebar Bender

This portable rebar bender was designed by a contractor and allows you to bend steel in place even in tight areas.

  • Ideal for standard hook or off-set (dog leg) bends. Straightens rebar from less than 30 degrees

  • Versatile design cannot be trapped against a wall or obstruction. Bending wheel is easily removed without tools

  • Costs for couplers, joint welds and inspection delays are greatly minimized

  • Saves time by allowing the removal of column forms prior to bending rebar

  • Bends #11 1 3/8-inch (35 mm) rebar to an ACI approved radius and ideal for general purpose bending with up to #12 1 1/2-inch (38 mm) rebar

**All JB Series Rebar Benders require a seperately purchased drive motor to function.  See JPU1 below.

Applications

  • 90° Standard Hook

  • 180° Cane Hook

  • Stirrup and Tie Hook

  • Seismic Stirrup and Tie Hook

  • Offset Bends

  • Straightening

UNIT SPECIFICATIONS
Model JB11090
Max. Bending Angle 90
Max. Rebar Size #8, #9, #10, #11
Min. Bending Angle* 14 in
Min. Bar Spacing on Center 3.5
ACI Approved Max. Bending Angle** 90
ACI Approved Max. Rebar Size #11
DIMENSIONS & WEIGHTS
Overall Length 27 in
Overall Width 19 in
Overall Height 6 in
Shipping Dimensions 30 x 13 x 6 in
Operating Weight 110 lb
Shipping Weight 136 lb
There is no further information.

Accessories

  • 10-foot hose with coupler

Click Here To Download The Manual

JPU1 - Pump

JB11090
Mfg. item #: JB11090
PACJB11090
lease to own for as little as:$98 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,895.00

1276
JPU1
Mfg. item #: JPU1
PACJPU1
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1.00

1276
Freight policies for items on this page:
1: Call for freight quote on this item or we will confirm freight charges before shipping.
Free freight offers apply only to deliveries to the lower 48 states by truck freight or ground UPS. Liftgate and non-commercial delivery charges may be extra.
