This hardness tester comprises the
very best in "state of the art" design along with
dynamic precision only found at Phase II.
-

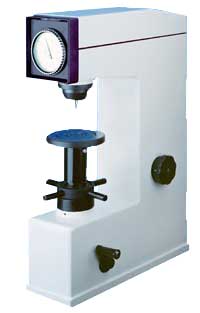

The 900-331 Rockwell scale hardness
tester is easy to operate, yet engineered to obtain
highly sensitive and accurate readings.
-
Conforming to ASTM E-18 Rockwell
Hardness standards, the 900-331 tester will offer
unmatched repeatability in all standard Rockwell
Hardness scales (table shown below).
-
A perfect, rugged performer suited
for any environment including heat treat facilities,
tool rooms, workshops, laboratories and inspection
labs.
-
Lifetime technical support is
included on all Phase II Hardness Testers.
-
So test away with confidence and a
level of accuracy you will only find at Phase II.
Features
- Direct analog dial reading
- Advanced design, easy to operate
- Engineered to obtain highly
sensitive and accurate readings
- Conforms to ASTM E-18
|
|
Accessories
-
C-scale Diamond Indentor
-
1/16" Ball Indentor
-
3- HRC Test Blocks
-
1- HRB Test Block
-
1-HRA Test Block
-
Test Table 5.87" (150mm)
-
Flat Anvil 2.5" (63mm)
-
Spot Anvil .38: (10mm)
-
Std. Vee Anvil
-
Accessory Case
-
Dust Cover
|
|
SPECIFICATIONS |
|
Minor Load |
10Kgf |
|
Major Load |
60Kgf, 100Kgf, 150Kgf |
|
Test Force Application |
Dead Weight |
|
Test Force Control |
Hydraulic Dashpot System |
|
Results Display |
Analog Dial Gage |
|
Vertical Capacity |
6.7 in. |
|
Throat Depth |
6.6 in. |
|
Height |
30.0 in. |
|
Width |
8.50 in. |
|
Depth |
20.0 in. |
|
Shipping Weight |
242 lbs. |
|
|
ADDITIONAL INFORMATION |
|
Scale Symbol |
Indenter Type
Ball dimensions
indicate diameter |
Preliminary Force
N (kgf) |
Total Force
N (kgf) |
Typical Application |
|
A |
Spheroconical Diamond |
98.07 (10) |
588.4 (60) |
Cemented carbides, thin steel and shallow case
hardened steel |
| B |
Ball 1/16" (1.588mm) |
98.07 (10) |
980.7(100) |
Copper
alloys, soft steels, alum. Alloys, malleable iron,
etc. |
|
C |
Spheroconical Diamond |
98.07 (10) |
1471 (150) |
Steel, hard cast irons,pearltic malleable iron,
titanium, deep case hardened steel & other material
harder than HRB 100 |
| D |
Spheroconical Diamond |
98.07 (10) |
980.7(100) |
Thin
steel and medium case hardened steel and pearlitic
malleable iron |
|
E |
Ball - 1/8" (3.175mm) |
98.07 (10) |
1471 (150) |
Cast iron, aluminum&magnesium alloys and bearing
metals |
| F |
Ball 1/16" (1.588mm) |
98.07 (10) |
588.4 (60) |
Annealed
copper alloys, and thin soft sheet metals |
|
G |
Ball 1/16" (1.588mm) |
98.07 (10) |
1471 (150) |
Malleable irons, copper-nckel-zinc and cupronickel
alloys |
| H |
Ball - 1/8" (3.175mm) |
98.07 (10) |
588.4 (60) |
Aluminum,
zinc and lead |
|
K |
Ball - 1/8" (3.175mm) |
98.07 (10) |
1471 (150) |
Bearing metals and other very soft or thin
materials. Use smallest ball and heaviest load that
does not give anvil effect |
| L |
Ball - 1/4" (6.350mm) |
98.07 (10) |
588.4 (60) |
|
M |
Ball - 1/4" (6.350mm) |
98.07 (10) |
980.7(100) |
| P |
Ball - 1/4" (6.350mm) |
98.07 (10) |
1471 (150) |
|
R |
Ball - 1/2" (12.70mm) |
98.07 (10) |
588.4 (60) |
| S |
Ball - 1/2" (12.70mm) |
98.07 (10) |
980.7(100) |
|
V |
Ball - 1/2" (12.70mm) |
98.07 (10) |
1471 (150) |
|
|
|
