Presto Pneumatic Container Tilters

Use these pneumatic tilters anywhere that shop air is available. They require no electrical power and because they use no hydraulic fluid there is no chance of process contamination
TILT TABLES

Features:

  • 2000 - 6000 lb capacity
  • 30 degree tilt standard, 35 degree tilt optional
  • Air requirements 80 psi @ 15 cfm
  • Pedestal mounted control standard
  • Foot control available
  • Optional floor stand
  • Safety restraining chain to guard against over tilt
  • Optional fork pockets
  • Lifetime warranty on Firestone Actuator
  • Optional motion stabilizer
  • Custom designs available
Pneumatic Tilt Table Specifications
Model
Number		 Tilt
Capacity		 Degree
Of Tilt		 Lowered
Height		 Base Size
(W x L)		 Platform
Size (W x L)		 Shipping
Weight
AT10 Series
AT10 - 3648 1000 lbs 30 7" 36" x 48" 36" x 48" 590 lbs
AT10 - 4848 1000 lbs 30 7" 36" x 48" 48" x 48" 650 lbs
AT10 - 4856 1000 lbs 30 7" 36" x 48" 56" x 48" 700 lbs
AT10 - 4860 1000 lbs 30 7" 36" x 48" 60" x 48" 720 lbs
AT20 Series
AT20 - 3648 2000 lbs 30 7" 36" x 48" 36" x 48" 640 lbs
AT20 - 4848 2000 lbs 30 7" 36" x 48" 48" x 48" 720 lbs
AT20 - 4856 2000 lbs 30 7" 36" x 48" 56" x 48" 785 lbs
AT20 - 4860 2000 lbs 30 7" 36" x 48" 60" x 48" 815 lbs
AT40 Series
AT40 - 4848 4000 lbs 30 7" 36" x 48" 48" x 48" 745 lbs
AT40 - 4856 4000 lbs 30 7" 36" x 48" 56" x 48" 800 lbs
AT40 - 4860 4000 lbs 30 7" 36" x 48" 60" x 48" 830 lbs
AT60 Series
AT60 - 4848 6000 lbs 30 8" 48" x 48" 48" x 48" 840 lbs
AT60 - 4856 6000 lbs 30 8" 48" x 48" 56" x 48" 920 lbs
AT60 - 4860 6000 lbs 30 8" 48" x 48" 60" x 48" 960 lbs

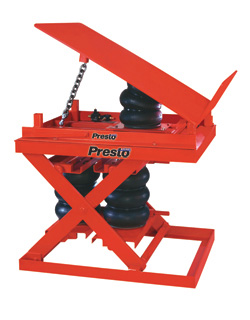

SCISSOR LIFT & TILT

AND HEAVY-DUTY SCISSOR
LIFT & TILT

Features:

  • 1000 - 4000 lb capacity standard units
  • 2000 - 8000 lb capacity heavy-duty units
  • 21" & 24" vertical travel
  • 30 degree tilt standard, 35 degree tilt optional
  • Pedestal mounted control
  • Optional foot control available
  • Lifetime warranty on Firestone Actuator
  • Air requirements 80 psi @ 15 cfm
  • Optional motion stabilizer
  • Custom designs available
  • Custom platforms available
Pneumatic Scissor Lift & Tilt Specifications
Model
Number		 Lift
Capacity		 Degree
Of Tilt		 Vertical
Travel		 Lowered
Height		 Raised
Height		 Base Size
(W x L)		 Platform
Size (W x L)		 Shipping
Weight
AXT10 Series
AXT10 - 3648 1000 lbs 30 21" 15" 36" 36" x 48" 36" x 48" 1140 lbs
AXT10 - 4848 1000 lbs 30 21" 15" 36" 36" x 48" 48" x 48" 1250 lbs
AXT10 - 4856 1000 lbs 30 21" 15" 36" 36" x 48" 56" x 48" 1340 lbs
AXT10 - 4860 1000 lbs 30 21" 15" 36" 36" x 48" 60" x 48" 1390 lbs
AXT20 Series
AXT20 - 3648 2000 lbs 30 24" 15" 39" 36" x 48" 36" x 48" 1315 lbs
AXT20 - 4848 2000 lbs 30 24" 15" 39" 36" x 48" 48" x 48" 1345 lbs
AXT20 - 4856 2000 lbs 30 24" 15" 39" 36" x 48" 56" x 48" 1400 lbs
AXT20 - 4860 2000 lbs 30 24" 15" 39" 36" x 48" 60" x 48" 1490 lbs
AXT40 Series
AXT40 - 4848 4000 lbs 30 24" 15" 39" 48" x 48" 48" x 48" 1490 lbs
AXT40 - 4856 4000 lbs 30 24" 15" 39" 48" x 48" 56" x 48" 1545 lbs
AXT40 - 4860 4000 lbs 30 24" 15" 39" 48" x 48" 60" x 48" 1585 lbs

Pneumatic Heavy-Duty Scissor Lift & Tilt Specifications
Model
Number		 Lift
Capacity		 Degree
Of Tilt		 Vertical
Travel		 Lowered
Height		 Raised
Height		 Base Size
(W x L)		 Platform
Size (W x L)		 Shipping
Weight
AXST20 Series
AXST20 - 3648 2000 lbs 30 24" 19" 43" 36" x 48" 36" x 48" 1150 lbs
AXST20 - 4848 2000 lbs 30 24" 19" 43" 36" x 48" 48" x 48" 1270 lbs
AXST20 - 4856 2000 lbs 30 24" 19" 43" 36" x 48" 56" x 48" 1410 lbs
AXST20 - 4860 2000 lbs 30 24" 19" 43" 36" x 48" 60" x 48" 1490 lbs
AXST40 Series
AXST40 - 3648 4000 lbs 30 24" 19" 43" 36" x 48" 36" x 48" 1400 lbs
AXST40 - 4848 4000 lbs 30 24" 19" 43" 36" x 48" 48" x 48" 1520 lbs
AXST40 - 4856 4000 lbs 30 24" 19" 43" 36" x 48" 56" x 48" 1640 lbs
AXST40 - 4860 4000 lbs 30 24" 19" 43" 36" x 48" 60" x 48" 1720 lbs
AXST60 Series
AXST60 - 4848 6000 lbs 30 24" 19" 43" 48" x 48" 48" x 48" 1610 lbs
AXST60 - 4856 6000 lbs 30 24" 19" 43" 48" x 48" 56" x 48" 1730 lbs
AXST60 - 4860 6000 lbs 30 24" 19" 43" 48" x 48" 60" x 48" 1810 lbs
AXST80 Series
AXST80 - 4848 8000 lbs 30 23" 19" 43" 48" x 48" 48" x 48" 1685 lbs
AXST80 - 4856 8000 lbs 30 23" 19" 43" 48" x 48" 56" x 48" 1800 lbs
AXST80 - 4860 8000 lbs 30 23" 19" 43" 48" x 48" 60" x 48" 1800 lbs
There are no further details.
There are no further specifications.
There is no further information.
There are no listed accessories.
