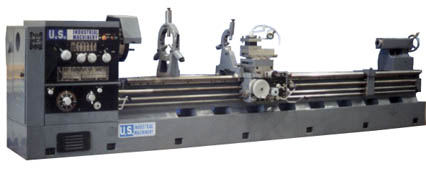

USI CZ 33120 Lathe

This is a heavy Duty, Gap-bed Engine Lathe, incorporating hardened & precision ground bed ways as well as all gears.  It has removable gap, and feed-rod, lead screw safety interlock, weight bearing tailstock, and amp meter are all standard design which results in greater stability, higher precision and increased longevity.

Swing Over Bed 33-1/2"
Swing Over Cross 20-1/2"
Swing Over Gap 41"
Spindle Type D1-11 Camlock
Spindle Bore 5-1/8"
Spindle Speeds 18 Steps
Spindle Range 14-750 or 18-900 rpm
Cross-Slide Travel 15-3/4"
Compound Travel 9"
Compound Style "T" Slot
Tailstock Quill Travel 8"
Tailstock Taper MT"5 or #6
Tailstock Quill Diameter 4-3/4"
Longitudinal Feeds 72 kinds (0.05-1.42mm/r)
Cross Feeds 72 kinds (0.015-0.48 mm/r)
Inch Threads 37 kinds (1-18 tpi) (also Diam. Thdg)
Metric Threads 54 kinds (1-240mm) (also Module thdg)
Bed Width 19"
Rapid Feed Rapid Feed Motor Long. 6mm/min/Cross 2mm/min)
Coolant System Motor 120W
Main Motor 90W
Centers 15 HP
Net Weight Approx 11,000 lbs
There is no further information.


  • 3 and 4 Jaw Chucks
  • Face Plate
  • Thread Chasing Dial
  • Steady and Follower Rests, Splash
  • Face and Chuck Guards
  • Coolant System
  • Work Lamp
  • 4-Way Rapid Traverse
  • Dual Forward Reverse Levers
  • "T" Slotted Compound
Call for price. USICZ33120
Call for price. USITA-CZ33120
