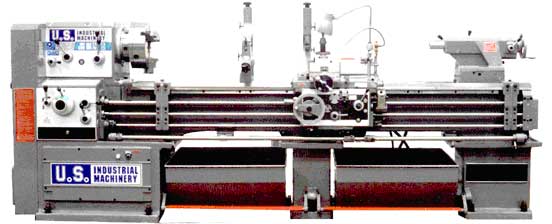

SPECIFICATIONS:
|
CAPACITIES:
|
|
Swing Over Bed
|
21"
|
|
Swing Over Cross Slide
|
13.3"
|
|
Swing Over Gap
|
28.3"
|
|
Length of Gap
|
11.5"
|
|
Length of Gap in Front of Face Plate
|
7.2"
|
|
Distance Between Centers
|
120"
|
|
HEADSTOCK:
|
|
Spindle Speeds (Number)
|
12
|
|
Spindle Speeds (Range)
|
25-1500 RPM
|
|
Hole Thru Spindle
|
3.1"
|
|
Spindle Nose Type
|
D1-8
|
|
Headstock Center
|
ASA #350
|
|
Headstock Length On Bed
|
20.3"
|
|
Number of Bearings on Spindle
|
3
|
|
Spindle Bearing Type
|
2 Tapered and 1 Straight
|
|
DRIVE & MOTORS:
|
|
Type of Input Drive
|
Vee Belt
|
|
Number of Vee Belts
|
4
|
|
Main Drive Motor
|
10 H.P.
|
|
Coolant Pump Motor
|
1/5 H.P.
|
|
|
MAIN SPINDLE BEARING:
|
|
Outside Diameter
|
7.18"
|
|
Inside Diameter
|
4.87"
|
|
Overall Length Of Spindle
|
31.03"
|
|
GEARBOX:
|
|
Threads Per Inch (#) Range
|
(40) 4-56 T.P.I.
|
|
Metric Threads (#) Range
|
(23) 0.5-7
|
|
Module Threads (#) Range
|
(20) 0.5-7
|
|
Diametral Pitch (#) Range
|
(19) 4-28
|
|
Long. Feeds (#) Range
|
(80) 0.0023-0.035"
|
|
Cross Feeds (#) Range
|
(80) 0.00115-0.0175"
|
|
Leadscrew Dia./Range
|
1.33"/4 T.P.I.
|
|
Feed Rod Diameter
|
0.98"
|
|
Lubrication System
|
Oil Pump
|
|
BED:
|
|
Width of Bed
|
14.56"
|
|
Depth of Bed
|
14.37"
|
|
Hardness of Bed (Rockwell C)
|
48-54
|
|
TAILSTOCK:
|
|
Tailstock of Spindle Barrel
|
6.5"
|
|
Diameter of Spindle Barrel
|
2.56"
|
|
Taper of Center
|
2.56"
|
|
Tailstock Body Length on Bed
|
11.69"
|
|
Length of Barrel Graduation on Spindle
|
6"
|
|
Type of Clamping on Bed
|
Bolts and Lever Clamp
|
|
Lubrication System
|
Reservoir
|
|
|
CARRIAGE & APRON:
|
|
Cross Slide Travel
|
10.6"
|
|
Cross Slide Width of Bridge
|
7.48"
|
|
Compound Rest Travel
|
4.33"
|
|
Compound Rest Width
|
5.31"
|
|
Length of Carriage Bearing on Ways
|
22.95"
|
|
Graduation of Apron Handwheel
|
0.005"
|
|
Travel of Carriage per Rev. of Handwheel
|
1"
|
|
Handwheel (Direct Reading)
|
0.001"
|
|
Travel of Cross Slide Per Rev of Handwheel
|
0.4"
|
|
Height From Top of Compound to Center line of Lathe
|
2.1"
|
|
Maximum Tool Holder Size
|
1" x 1"
|
|
Lubrication System
|
Oil Pump
|
|
SHIPPING DATA:
|
|
Overall Width
|
45"
|
|
Overall Height
|
67"
|
|
Overall Length
|
195"
|
|
Shipping Weight
|
9100 lbs
|
|
There is no further information.
|
STANDARD ACCESSORY PACKAGE:
|
-
3 Jaw Chuck (12")
-
4 Jaw Chuck (16")
-
Face Plate
-
Drive Plate
-
Spindle Reduction Sleeve
-
Steady Rest
-
Follower Rest
-
Longitudinal Stop Device
-
Micro Stop Device
-
Threading Dial
-
Front Chip Cover
|
-
Work Light
-
Coolant System
-
Foot Brake
-
Hand Tools
-
Dead Centers
-
Oil Gun
-
Quick Change Gears
-
Operational & Maintenance Manuals
-
Voltage Available 220 Volts or 440 Volts
-
One Year Warranty Parts Only
|
Mfg. item #: 21120MK
USI21120MK
