Maksiwa Edgebanders

CBC.FLEX Portable Edgebander 1 Ph Manual Flex + table CBC.E Portable Edgebander 1 PHASE 110V CBC.MR Cabinet Edgebander with Rollers 1 PHASE 110V
CBC.FLEX Portable Edgebander
1 Ph Manual Flex + table 		CBC.E Portable Edgebander
1 PHASE 110V 		CBC.MR Cabinet Edgebander with Rollers
1 PHASE 110V
CBC.2/MR 2 Glue Pot Edgebander with Rollers 1 PHASE CBC.T Automatic Edgebander Titanium 1 PHASE 220V CBC.P Automatic Edgebander Platinum 1 PHASE 220V
CBC.2/MR 2 Glue Pot Edgebander
with Rollers 1 PHASE 		CBC.T Automatic Edgebander Titanium
1 PHASE 220V 		CBC.P Automatic Edgebander Platinum
1 PHASE 220V



Models and Accessories
CBC.FLEX PORTABLE EDGEBANDER - 1 PHASE MANUAL FLEX + TABLE
CBC.E PORTABLE EDGEBANDER - 1 PHASE 110V
CBC.MR CABINET EDGEBANDER WITH ROLLERS - 1 PHASE 110V
CBC.2/MR 2 GLUE POT EDGEBANDER W/ ROLLERS - 1 PHASE
CBC.T AUTOMATIC EDGEBANDER TITANIUM - 1 PHASE 220V
CBC.P AUTOMATIC EDGEBANDER PLATINUM - 1 PHASE 220V



CBC.FLEX Portable Edgebander 1 Ph Manual Flex + table

Click here to download manual

CBC.FLEX Portable Edgebander

The hand-held CBC FLEX is perfect to apply edge banding tape to concave and convex curved pieces. Being super portable and weighing only 21 pounds, this machine is ideal for extensive jobs. It has a digital temperature control and adjustable feeder speed. The CBC FLEX is perfect for the woodworker who needs agility and versatility in their daily production.



Specifications
Technical Information CBC FLEX
Glue Granulated Hot-Melt
Glue Temperature 130 to 180 deg C
Motor specs 1 Phase 127 V 5.5 A 700 W
Tape thickness 0.3 mm - 1 mm
Max. tape width 0-35/64 to 1-57/64 inch
Feeder speed 0 to 19 ft/min
Weight 21 Lbs
Warranty 2 years

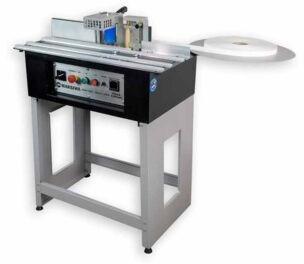

CBC.E Portable Edgebander 1 PHASE 110V

Click here to download manual

CBC.E Portable Edgebander

The Portable Edgebander CBC.E is designed for convenience, portability, and efficiency. It has retractable legs for easy transportation. Works with edge banding tape width up to 3” and thickness 0.3mm -2mm. The built-in manual cutter provides a precise cut of the tape. With a digital temperature control panel, you can easily control the glue temperature and the glue pot capacity is 1.5 pounds (700 grams).

A spiral bar raises the glue from the glue pot and flows back down, similar to a fondue fountain. It uses low temperature pellet glue, Maksiwa recommends glue that work in the range of 130° up to 180° Celsius.

There is also an adjustment for glue flow rate. Safety features include an emergency button, which will instantly shut down all machine controls



Specifications
Technical Information CBC.E
Electrical specs 1 Phase 110 V 1500 W 60Hz
Motor specs 24 V 10 Amp
Manual Feeding Speed 18ft/min
Max edgebanding Height 3 inch
Edgebanding Coil Support Diameter 19 1/2 inch
Tape Thickness 0.4 - 2mm
Edgebanding Material Melamine /PVC/ABS/PP/ VEENER non-fleeced
Glue Pot Capacity 1.5 lbs
Recommended Glue Temperature Range 130 to 180 deg C
Glue Pot Tape Granulated Hot-Melt
Max. Machine Dimension 47 x 31 x 42 inch
Shipping Dimension 32 x 22 x 20 inch
Weight 114 Lbs.
Warranty 2 years



CBC.MR Cabinet Edgebander with Rollers 1 PHASE 110V

Click here to download manual

CBC.MR Cabinet Edgebander with Rollers

Cabinet Edgebander CBC.MR has a built-in retractable extension table providing a work area 3x times longer whenever opened, it is perfect for long pieces such as doors and panels and it has 6 speeds allowing the operator to work as fast as he wants. If you are looking for an affordable and efficient edgebander, the CBC.MR Black Edition is the ideal machine for you.

Specifications
Technical Information CBC.MR
Electrical specs 1 Phase 110 V 1500 W 60Hz
Motor specs 24 V 10 Amp
Manual Feeding Speed 0 - 26ft/min
Max edgebanding Height 3 inch
Edgebanding Coil Support Diameter 19 1/2 inch
Tape Thickness 0.4 - 2mm
Edgebanding Material Melamine /PVC/ABS/PP/ VEENER non-fleeced
Glue Pot Capacity 1.5 lbs
Recommended Glue Temperature Range 130 to 180 deg C
Glue Pot Tape Granulated Hot-Melt
(Extensions) Machine Dimension LxWxH (101 3/4) 48 1/2 x 35 1/2 x 43 inch
Shipping Dimension 43 x 30 x 50 inch
Weight 240 Lbs.
Warranty 2 years



CBC.2/MR 2 Glue Pot Edgebander with Rollers 1 PHASE

Click here to download manual

CBC.2/MR 2 Glue Pot Edgebander with Rollers

Cabinet edgebander with Dual Glue Pot is loaded with an extension table and 2 interchangeable glue pots, MAKSIWA’s CBC/2.MR Cabinet Edgebander works with the most commonly used edge tape materials such as Melamine/PVC/ABS/PP/VEENER non-fleeced.



Specifications
Technical Information CBC/2.MR
Eletrical specs 1 Phase 110V 1500W 60Hz
Dual Motor Specs 24 V 10 AMPS
Manual Feeding speed 0-26 FT/MIN
Max Edgebanding Height 3 inch
Edgebanding coil Support Diameter 19 1/2 inch
Edgebanding thickness 0.4 - 2 MM
Edgebanding Material Melamine /PVC/ABS/PP/ VEENER non-fleeced
Glue Pot Capacity 1.5 Lbs
Recommend Glue Temperature Range 130 - 180 deg C
Glue Pot Tape Granulated Hot-Melt
(Extensions open) Machine dimensions (LxWxH) (101 3/4) 58 x 43 x 43 inch
Shipping Dimensions (LxWxH) 47 x 30 x 50
Weight 330 lbs



CBC.T Automatic Edgebander Titanium 1 PHASE 220V

Click here to download manual

CBC.T Automatic Edgebander Titanium

Experience a finished product like never before. A masterpiece of engineering, this edgebander is packed with features to make your job easier. The exceptionally steady and stable CBC.T platform uses a stainless-steel mono-block base. Simply lift the protection hood to access all operating components.

A friction-free worktable feeds panels with high-precision as rollers move the panels through effortlessly and smoothly. Panel processing is fully automated and synchronized, while maintaining manual adjustments and mechanical readouts for reference.

Features:

  • Machine frame made out of steel, single block base with superior stability.
  • Anodized aluminum outfeed fence.
  • 1 Phase 220V
  • Table Dimension 2000 mm x 265 mm
  • Tape Thicness 0.4 mm to 3 mm
  • Panel Thicness 12mm / 45mm
  • Automatic Panel Feed System
  • Dual Pressure rollers
  • Melamine, PVC, ABS, PP, Veneer, Solid Wood Strip and Laminate
  • Pre-Heated Infeed Fence
  • Indivudually adjustable Flush Trimming
  • Digital Temperature Control
  • Pre-heated infeed fence
  • Front and back end Trimming
  • Top and Bottom Flush Trimming
  • Dual Buffing Unit
  • Extendable Panel Support Rail
  • Push button Control panel
  • 2 Warranty
CBC.T SPECIFICATIONS SAE METRIC
Automatic Feeding speed 16ft/MIN 5M/MIN
Panel thickness Min/Max 31/64 inch - 1 3/4 inch 12 - 45 MM
Edgebanding thickness 0.0157 inch - 0.118 inch 0.4 - 3 MM
Glue Pot Capacity 2 Lbs 1 kg
Max Edgebanding Height 2 inch 50 MM
Minimum panel width 4 3/4 inch 120 MM
Minimum panel length 9 7/16 inch 240 MM
Extendable Panel Support Rail Length 78 21/32 inch 1998 MM
Extension table Max Width 12 inch 310 MM
Size of Dust Collector Ports (2) 4 inch 100 MM
Minimum Dust Collection Requirements 700 CFM 20M/MIN
Air Pressure Requirement 6 SCFM and 100 PSI 7 kg/cm2
Edgebanding coil Support Diameter 31 1/2 inch 820 MM
Recommend Glue Temperature Range 356 deg F - 410 deg F 180 deg C - 210 deg C
Glue Type Pellet - Granulated Hot-Melt Pellet - Granulated Hot-Melt
Max. machine dimensions (LxWxH) 112 inchx 63 inchx 51 inch 2844 x 1600 x 1295 MM
Machine weight 849 LBS 385 KGS
Shipping dimensions (LxWxH) 86 inch x 36 inch x 57 inch 2184 x 914 x 1448 MM
Shipping weight 1025 Lbs 465 Kgs
Motor/Electrical Specs
Electrical Requirement 1 Phase 220V 30 Amps 60 Hz
Conveyer Motor 3/4HP(0.55KW)
Flush Trimmer Motor 3/4HP(0.55KW)
End Trimmer Motor 1/4HP(0.18KW)
Glue Spindle Motor 1/3HP(0.25KW)
Top Buffing Motor 1/4HP(0.18KW)
Bottom Buffing Motor 1/4HP(0.18KW)
Sound Rating 80 dB

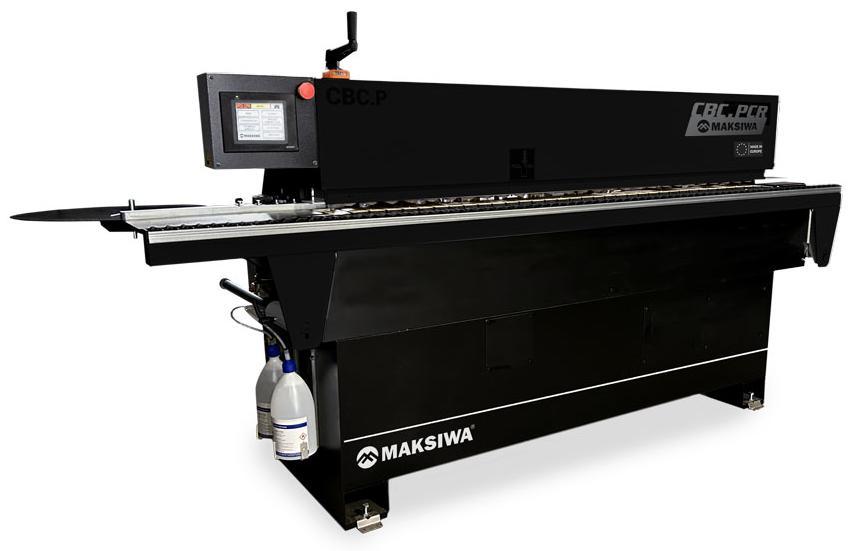

CBC.P Automatic Edgebander Platinum 1 PHASE 220V

Click here to download manual

CBC.P Automatic Edgebander Platinum

The Maksiwa CBC.P Platinum Automatic Edgebander, is an industrial grade, heavy duty machine that provides high performance and quality finish without compromising space in your shop. With its affordable price, this machine is now within reach of more woodworkers than ever before. Equipped with pre-milling, vertical rounding, glue scraper unit, buffing unit, top and bottom trimming, XMELT glue pot system (works with EVA and PUR Adhesives + easy drainage system), C.A.S.S cleaning agent spraying system, edge tape 0.4-3mm, panel thickness 10-50mm, 9HP 1PH 220V. Full PCL Touch Screen Control Panel with user friendly set-up and maintenance makes the CBC.P the perfect addition to the demanding woodworker looking to improve their craft.

Features:

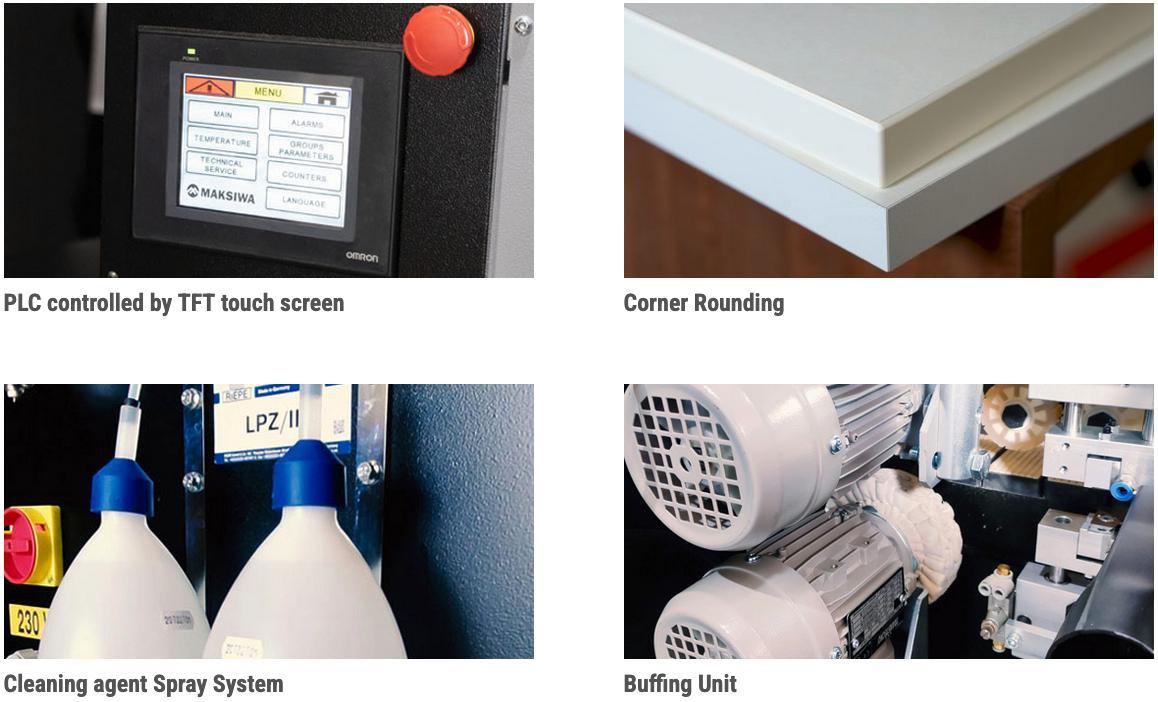

  • PLC controlled by TFT touch screen
  • Edge Tape: 0.4-3mm
  • Panel Thickness: 10-50mm
  • 9HP 1 Phase 220V 60Hz
  • Vertical Rounding Unit
  • Glue Scraper Unit
  • Buffing Unit 1400 RPM
  • End Trimming HF Motor
  • Top and Bottom Trimming 2 HF Motors 12.000 RPM
  • Pre-milling Unit 2 HF Motors with Diamond Cutters
  • XMELT Glue Pot System (compatible w/ EVA and PUR Adhesives + easy drainage System)
  • C.A.S.S - Cleaning Agent Spraying System
  • Stand-by mode: Only one click to re-start production.
  • Glue Pot Capacity 1.5kg | 3.3lbs Teflon Coated
  • Centralized Dust Collector with automatic ON/OFF
  • 12 mm Thickness Solid Oxycut monoblock structure and industrial drag chain to handle large workloads
  • Spring Loaded Pressure Unit with (2) Pressure Rollers
  • Reinforced Pressure Beam with (2) Prismatic guides or maximum guiding accuracy
  • Conveyor Chain Feed System for optimum results. Feed speed of 23 FPM
  • HF motors controlled by independent electronic converters
  • Gross Weight 920 kg / 2029 Lbs
  • Compact Design (mm/ft) 2839 x 864 x1232mm/112 x 34 x 49 inches
  • Melamine/PVC/ABS/PP/Solid Wood Strip/ Laminate

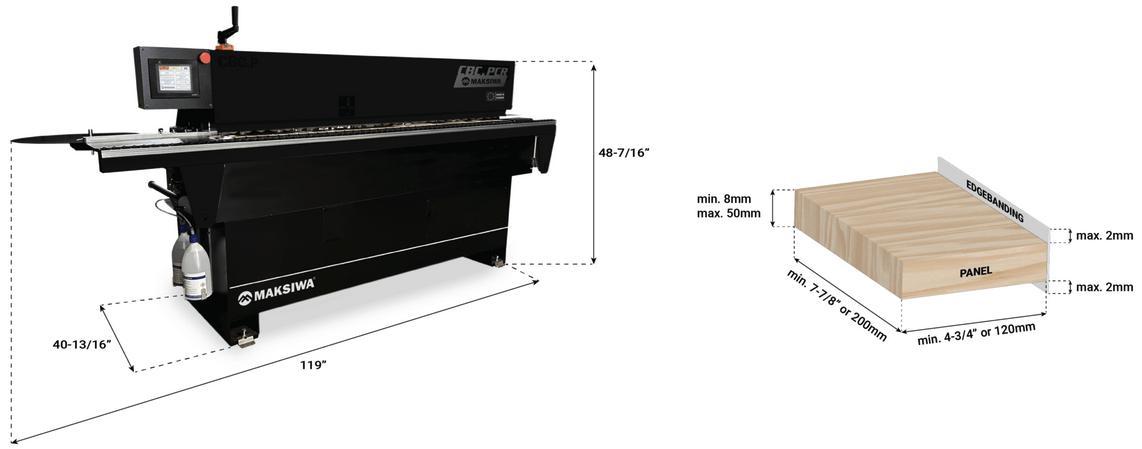

CBC.P SPECIFICATIONS SAE METRIC
Automatic Feeding speed 23 ft/min 7 m/min
Panel thickness Min/Max 13/32 inch - 1 31/32 inch 10 - 50 mm
Max Pre-milling Height 1 inch 30 mm
Edgebanding thickness 0.0157 inch - 0.118 inch 0.4-3mm
Glue Pot Capacity 3.3lbs 1.5 kg
Max Edgebanding Height 2 inch 51 mm
Minimum panel width 3 inch 75 mm
Minimum panel length 7 7/8 inch 200 mm
Extendable Panel Support Rail Length 102 inch 2607 mm
Extension table Max Width 54 inch 1371 mm
Size of Dust Collector Ports 6 inch 150mm
Minimum Dust Collection Requirements 1236 CFM 2100 m3/h
Air Pressure Requirement 13.4 SCFM at 87PSI 0.6 Mpa
Edgebanding coil Support Diameter 59 inch 1498 mm
Recommend Glue Temperature Range 356 deg F - 410 deg F 180 deg C - 210 deg C
Max. machine dimensions (LxWxH) 112 inchx 34 inchx 49 inch 2839 x 864 x 1232 mm
Machine dimensions w/ Caster Wheel (LxWxH) 112 inchx 46-1/4 inchx 56 inch 2839 x 1174 x 1422 mm
Net weight 1719 LBS 780 KGS
Shipping dimensions (LxWxH) 86 inch x 36 inch x 57 inch 2184 x 914 x 1448 mm
Glue Type Granulated Hot-Melt EVA / PUR Granulated Hot-Melt EVA / PUR
Electrical Information 1 Phase 220V 30 Amps 60Hz 1 Phase 220V 30 Amps 60Hz
Sound Rating 80 dB 80 dB
Motor/Electrical Specs
Electrical Requirement 1 Phase 220V 30 Amps 60 Hz
Top/Bottom Trimmer HFM 200 Hz 12,000 RPM .27kw
End Trimmer Motor 200 Hz 12,000 RPM .27kw
Front/Rear Pre-Milling HFM 150 Hz 9000 RPM .75/.25Kw
Sound Rating 80 dB





CBC.FLEX
PORTABLE EDGEBANDER - 1 PHASE MANUAL TABLE (WGT = 27 LBS, DIMS = 21X6X17 ** MADE IN BRAZIL)
Mfg. item #: CBC.FLEX
MSW-CBC.FLEX
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
NEW ITEM
$1,819.00

36576
CBC.E
PORTABLE EDGEBANDER - 1 PHASE 110V (WGT = 134 LBS, DIMS = 33X21X19 ** MADE IN BRAZIL)
Mfg. item #: CBC.E
MSW-CBC.E
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
NEW ITEM
$2,299.00

36576
CBC.MR
CABINET EDGEBANDER WITH ROLLERS - 1 PHASE 110V (WGT = 350 LBS, DIMS = 43X30X48 ** MADE IN BRAZIL)
Mfg. item #: CBC.MR
MSW-CBC.MR
lease to own for as little as:$66 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
NEW ITEM
$3,299.00

36576
CBC.2/MR
2 GLUE POT EDGEBANDER W/ ROLLERS - 1 PHASE (WGT = 375 LBS, DIMS = 43X30X48 ** MADE IN BRAZIL)
Mfg. item #: CBC.2/MR
MSW-CBC.2/MR
lease to own for as little as:$86 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
NEW ITEM
$4,299.00

36576
CBC.T
AUTOMATIC EDGEBANDER TITANIUM - 1 PHASE 220V (WGT = 1023 LBS, DIMS = 83X28X50 ** MADE IN TAIWAN)
Mfg. item #: CBC.T
MSW-CBC.T
lease to own for as little as:$260 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
NEW ITEM
$12,999.00

36576
CBC.P
AUTOMATIC EDGEBANDER PLATINUM - 1 PHASE 220V (WGT = 2029 LBS, DIMS = 111X30X60 ** MADE IN SPAIN)
Mfg. item #: CBC.P
MSW-CBC.P
lease to own for as little as:$570 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
NEW ITEM
$28,500.00

36576
