JET JLP-25-50 Series Lever Hoists

s-h alt

Image for representational purposes only, actual product may vary.

Image for representational purposes only, actual product may vary.

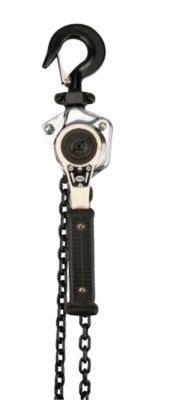

 The Jet JLP-025A, 1/4 TON
has a 5 Year warranty

  • High strength, cold-formed, stamped steel construction makes these light weight yet impact resistant for longer life
  • High strength to weigh ratio
  • Completely enclosed Weston type automatic brake system hold load in any position
  • Easy to use with sngle hand operation and control
  • Simple design make routine inspection and maintenance easy
  • Freewheeling feature without load for quick load attachement
  • Hardened grade 80 load chain
  • Drop forged hooks with heavy duty safety latches swivel 360 degees for easy rigging
  • Optional ship yard hooks (3/4T, 1.5T only) make these indispensable in shipbuilding and fabricating applications
  • Models with slip cluth style overload protection available
  • Each hoist is proof tested and supplied with test certificate
  • Complies with OSHA, ANSI/ASME B30.21 and HST-3M standards
  • Ribbed handle design for increased strength
  • Hardened steel needle bearing supprted load sheave
Detailed Specifications
Brand Jet  Jet Jet Jet Jet Jet
Capacity 0.25 metric ton 0.25 metric ton 0.25 metric ton 0.25 metric ton 0.25 metric ton 0.25 metric ton
Headroom 8.27  8.27 8.27 8.27 8.27 8.27
Height 3.54 inch 3.54 inch 3.54 inch 3.54 inch 3.54 inch 3.54 inch
Length 7.87 inch 7.87 inch 7.87 inch 7.87 inch 7.87 inch 7.87 inch
Lever Length 5.91 inch 5.91 inch 5.91 inch 5.91 inch 5.91 inch 5.91 inch
Lift per Full Turn of handle 3.02 inch 3.02 inch 3.02 inch 3.02 inch 3.02 inch 3.02 inch
Load Chain Diameter 4 mm 4 mm 4 mm 4 mm 4 mm 4 mm
Model Number JLP-025A-5  JLP-025A-10 JLP-025A-15 JLP-025A-20 JLP-025A-25 JLP-025A-30
Net Weight 4.46 pound 5.06 pound 5.06 pound 5.06 pound 5.06 pound 5.06 pound
Number of Falls 1 1 1 1 1
Part Number 187740  187741 187742 187743 187744 187745
Rated Capacity 551 pound 551 pound 551 pound 551 pound 551 pound 551 pound
Required pounds of pull to lift capacity 60  60 60 60 60 60
Ship Weight 4.56 Lbs 5.4 Lbs 6.15 Lbs 6.9 Lbs 7.65 Lbs 8.4 Lbs
Standard Lift 5 ft 10 ft 15 ft 20 ft 25 ft 30 ft
Width 3.54 inch 3.54 inch 3.54 inch 3.54 inch 3.54 inch 3.54 inch

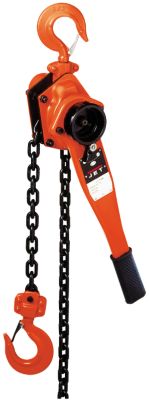

 The Jet JLP-050A, 1/2 Ton Lever Hoist have a 5 Year warranty
  • High strength, cold-formed, stamped steel construction makes these light weight yet impact resistant for longer life
  • High strength to weigh ratio
  • Completely enclosed Weston type automatic brake system hold load in any position
  • Easy to use with sngle hand operation and control
  • Simple design make routine inspection and maintenance easy
  • Freewheeling feature without load for quick load attachement
  • Hardened grade 80 load chain
  • Drop forged hooks with heavy duty safety latches swivel 360 degees for easy rigging
  • Optional ship yard hooks (3/4T, 1.5T only) make these indispensable in shipbuilding and fabricating applications
  • Models with slip cluth style overload protection available
  • Each hoist is proof tested and supplied with test certificate
  • Complies with OSHA, ANSI/ASME B30.21 and HST-3M standards
  • Ribbed handle design for increased strength
  • Hardened steel needle bearing supprted load sheave
Detailed Specifications
Brand Jet  Jet Jet Jet
Capacity 0.5 metric ton 0.5 metric ton 0.5 metric ton 0.5 metric ton
Headroom 9.84  9.84 9.84 9.84
Height 4.72 inch 4.72 inch 4.72 inch 4.72 inch
Length 14.57 inch 14.57 inch 14.57 inch 14.57 inch
Lever Length 11.81 inch 11.81 inch 11.81 inch 11.81 inch
Lift per Full Turn of handle 3.78 inch 3.78 inch 3.78 inch 3.78 inch
Load Chain Diameter 5 mm 5 mm 5 mm 5 mm
Model Number JLP-050A-5  JLP-050A-10 JLP-50A-15 JLP-050A-20
Net Weight 8.62 pound 8.62 pound 9.37 pound 10.12 pound
Number of Falls 1 1 1
Part Number 187505  187506 187507 187508
Rated Capacity 1102 pound 1102 pound 1102 pound 1102 pound
Required pounds of pull to lift capacity 86  86 86 86
Ship Weight 8.62 Lbs 10.78 Lbs 10.17 Lbs 10.92 Lbs
Standard Lift 5 ft 10 ft 15 ft 20 ft
Width 4.33 inch 4.33 inch 4.33 inch 4.72 inch



  Part # Description
s-h alt 202710 HD-1T, 1 Ton Heavy-Duty Beam Clamp
s-h alt 252005 1/2-PT, 1/2 TON PLAIN TROLLEY, FITS 2-1/2in - 8in WIDE BEAMS
s-h alt 252710 JBC-1, 1 Ton, Fits 3in - 8-5/8in Wide Beam
s-h alt 262005 1/2-HDT, 1/2 Ton Heavy Duty Manual Trolley

More Informationshow more
187740
JLP-025A-5, 1/4 TON MINI-PULLER WITH 5 LIFT
Mfg. item #: 187740
WMH187740
$17.95 Shipping on all JET, Powermatic and Wilton orders between $200 and $400.1020
$106.32

816
More Informationshow more
187741
JLP-025A-10, 1/4 TON MINI-PULLER WITH 10 LIFT
Mfg. item #: 187741
WMH187741
$17.95 Shipping on all JET, Powermatic and Wilton orders between $200 and $400.1020
$139.54

816
More Informationshow more
187742
JLP-025A-15, 1/4 TON MINI-PULLER WITH 15 LIFT
Mfg. item #: 187742
WMH187742
$17.95 Shipping on all JET, Powermatic and Wilton orders between $200 and $400.1020
$172.32

816
More Informationshow more
187743
JLP-025A-20, 1/4 TON 20 LIFT ** NEW ITEM FOR 2012
Mfg. item #: 187743
WMH187743
Southern Tool Limited Time Special - FREE FREIGHT On this Item.75
$229.00

2356
More Informationshow more
187744
JLP-025A-25, 1/4 TON 25 LIFT ** NEW ITEM FOR 2012
Mfg. item #: 187744
WMH187744
Southern Tool Limited Time Special - FREE FREIGHT On this Item.75
$214.61

2356
More Informationshow more
187745
JLP-025A-30, 1/4 TON 30 LIFT ** NEW ITEM FOR 2012
Mfg. item #: 187745
WMH187745
Southern Tool Limited Time Special - FREE FREIGHT On this Item.75
$244.41

2356
More Informationshow more
187505
JLP-050A-5, 1/2 TON MINI-PULLER WITH 5 LIFT
Mfg. item #: 187505
WMH187505
$17.95 Shipping on all JET, Powermatic and Wilton orders between $200 and $400.1020
$139.54

816
More Informationshow more
187506
JLP-050A-10, 1/2 TON MINI-PULLER WITH 10 LIFT
Mfg. item #: 187506
WMH187506
$17.95 Shipping on all JET, Powermatic and Wilton orders between $200 and $400.1020
$172.32

816
More Informationshow more
187507
JLP-050A-15, 1/2 TON MINI-PULLER WITH 15 LIFT
Mfg. item #: 187507
WMH187507
$17.95 Shipping on all JET, Powermatic and Wilton orders between $200 and $400.1020
$206.31

816
More Informationshow more
187508
JLP-050A-20, 1/2 TON 20 LIFT ** NEW ITEM FOR 2012
Mfg. item #: 187508
WMH187508
Southern Tool Limited Time Special - FREE FREIGHT On this Item.75
$239.00

2356
More Informationshow more
202710
## HD-1T, 1 TON, LARGE CAPACITY BEAM CLAMPS
ITEM SHIPS IN 7 DAYS EXPIATED SHIPPING AVAILABLE
Mfg. item #: 202710
WMH202710
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
$66.99

1
More Informationshow more
252005
Mfg. item #: 252005
WMH252005
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
$98.99

1
More Informationshow more
252710
## JBC-1, 1 TON, HEAVY DUTY BEAM CLAMPS
ITEM SHIPS IN 7 DAYS EXPIATED SHIPPING AVAILABLE
Mfg. item #: 252710
WMH252710
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
$85.99

1
More Informationshow more
262005
Mfg. item #: 262005
WMH262005
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
$79.99

1
