Introducing VOLT - Already an established innovation leader in manual hoists, JET is changing the way electric hoists operate by being the first to bring true variable speed technology to the market.
Years of development and testing have enabled JET TO bring an electric hoist to the market that will change the way you get the work done. For quicker speeds on longer lifts, or for slower, more precise speeds in tight spots on more controlled lifts, the VOLT can handle any job
WHAT IS FULL-RANGE SPEED CONTROL?
The VOLT Series is the first electric hoist to feature Full-Range Speed Control. This technology brings true variable speed functionality to the hoist, which for the first time lets the operator control the speed of the hoist throughout the entire lift. For quicker speeds on longer lifts, or for slower, more precise speeds in tight spots on more controlled lifts, the VOLT not only handles any job, but handles it with control and precision you wont find in any other hoist.
WHY IT WORKS
Powered by a Hitachi inverter, the Full-Range Speed Control technology allows for smooth, seamless, and continuous speed changes throughout the lift. With other electric hoists in the marketplace, to even come close to control like this, the operator was forced to bump-fire the hoist by quickly toggling back and forth between the up and down buttons on the pendant. Having full speed control allows the operator to lift and lower faster when he needs the speed, but be able to slow down the speed down to a creep when he needs the control. With the VOLTs Full-Range Speed Control, the speed is now entirely in the hands of the user and can be adjusted as needed based on the application.

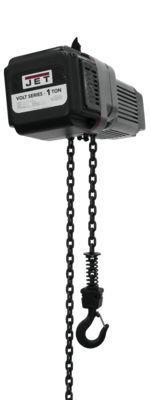

VOLT SERIES TRUE VARIABLE SPEED ELECTRIC HOISTS
JETs VOLT Series is a full line of variable speed hoists from 1/4 Ton to 10 Ton capacities; 10, 15 and 20 feet of lift standard, and in both single phase and 3-phase models. Years of development and testing have enabled JET bring an electric hoist to the market that will change the way you get the work done. For quicker speeds on longer lifts, or for slower, more precise speeds in tight spots on more controlled lifts, the VOLT can handle any job.
SAFETY and DURABILITY
JET hoists are engineered to meet strict tolerances and ARE constructed with quality materials to ensure they last.
H4 DUTY RATING
The H4 Duty Rating means the VOLT is engineered for demanding duty cycles and the toughest applications.
The heavy-duty DC electromagnetic brake is designed for durability and longer life. The DC brake is an industry-proven safety feature that secures the load even if power is interrupted to the hoist.
THERMAL OVERLOAD PROTECTION
Protects the motor from overheating in low voltage situations, protecting your investment.
Standard across the VOLT line, Overload Protection prevents the operator from being able to lift more than the rated capacity of the hoist, protecting both the user and the equipment.
An established innovation leader, JET brings true variable speed technology to the market for the first time.
FULL-RANGE SPEED CONTROL
Patent-pending, the Full-Range Speed Control technology means seamless speed changes and total control at your fingertips.
When precision matters, you want a hoist that gives you the maneuverability to accurately control the placement of a load. Proprietary software technology controlled by the Hitachi inverter ensures smooth, continuous control with soft starts and stops throughout the lift.
JET hoists comply with OSHA, ANSI and ASME standards and include a test certficiate.
|Specifications 230 Volt|
|Stock No||Model No||
|PHASE||VOLTAGE||Headroom (in.)||Duty Rating||
|1 TON 1 PHASE/3 PHASE|
|Specifications 460 Volt|
|1 TON 3 PHASE|
|162410||PBC-410VOLT 4-Button Control Pendant For 10' Lift Hoist and Trolley|
|162415||PBC-415VOLT 4-Button Control Pendant For 15' Lift Hoist and Trolley|
|162420||PBC-420VOLT 4-Button Control Pendant For 20' Lift Hoist and Trolley|
|Stock Number||Capacity (lb)||
|272710||2200||3 - 5||39-1/3||6-7/8||1/2HP, 1PH, 115/230V||25||43-5/16||93|
|262610||2200||3 - 5||39-1/3||6-7/8||1/2HP, 3PH, 230/460V||25||43-5/16||88|
SAVE UPTO 35% ON THIS ITEM, LIMITED QUANTITY, CALL 800-458-3687 X1 FOR AVAILABILITY **SALE ENDS 10/31/23
