JET VOLT 10 Ton Variable Speed Electric Hoists

Introducing VOLT - Already an established innovation leader in manual hoists, JET is changing the way electric hoists operate by being the first to bring true variable speed technology to the market.

Years of development and testing have enabled JET TO bring an electric hoist to the market that will change the way you get the work done. For quicker speeds on longer lifts, or for slower, more precise speeds in tight spots on more controlled lifts, the VOLT can handle any job

WHAT IS FULL-RANGE SPEED CONTROL?
The VOLT Series is the first electric hoist to feature Full-Range Speed Control. This technology brings true variable speed functionality to the hoist, which for the first time lets the operator control the speed of the hoist throughout the entire lift. For quicker speeds on longer lifts, or for slower, more precise speeds in tight spots on more controlled lifts, the VOLT not only handles any job, but handles it with control and precision you wont find in any other hoist.
WHY IT WORKS
Powered by a Hitachi inverter, the Full-Range Speed Control technology allows for smooth, seamless, and continuous speed changes throughout the lift. With other electric hoists in the marketplace, to even come close to control like this, the operator was forced to bump-fire the hoist by quickly toggling back and forth between the up and down buttons on the pendant. Having full speed control allows the operator to lift and lower faster when he needs the speed, but be able to slow down the speed down to a creep when he needs the control. With the VOLTs Full-Range Speed Control, the speed is now entirely in the hands of the user and can be adjusted as needed based on the application.
volt speed control

VOLT SERIES TRUE VARIABLE SPEED ELECTRIC HOISTS
JETs VOLT Series is a full line of variable speed hoists from 1/4 Ton to 10 Ton capacities; 10, 15 and 20 feet of lift standard, and in both single phase and 3-phase models. Years of development and testing have enabled JET bring an electric hoist to the market that will change the way you get the work done. For quicker speeds on longer lifts, or for slower, more precise speeds in tight spots on more controlled lifts, the VOLT can handle any job.

CONTROL

  • Full-Range Speed Control - patent-pending technology allows for smooth, seamless, continuous speed changes allowing for complete control throughout the lift
  • True variable-speed control allows you to lift and lower faster when you need the speed, but be able to slow down the speed when you need the control

PRECISION

  • With Full-Range Speed Control, the VOLTs minimum speed allows the user to slowly inch the load down for a soft stop
  • Soft starts and stops also increase the life of gear train components, load chain, hooks and brake components

SAFETY and DURABILITY

  • H4 Duty Rating means the VOLT is engineered for demanding, industrial environments and the toughest applications
  • Overload Protection - Prevents the operator from being able to lift more than the rated capacity of the hoist, protecting both the user and the equipment
  • Thermal Overload Protection - Protects the motor from overheating in low voltage situations, protecting your investment
  • Electromagnetic Brake - The heavy-duty, electromagnetic brake is designed for durability and longer life. This brake design is an industry-proven safety feature that secures the load even if power is interrupted to the hoist.
  • Control Pendant - 2-button push-button controller included
  • Chain Bag - Heavy-duty nylon chain bag with reinforcing metal brackets included
  • Grade 80 Load Chain - Grade 80 black oxide coated load chain for durability

STANDARDS

  • Complies with OSHA Regulations, ANSI/ASME B30-16 and HST-1 Standards
  • Certification - Load tested to 125 percent of capacity with certificate
  • Patent Pending



breakdown    hitachi inverter

DURABILITY
JET hoists are engineered to meet strict tolerances and ARE constructed with quality materials to ensure they last.

H4 DUTY RATING
The H4 Duty Rating means the VOLT is engineered for demanding duty cycles and the toughest applications.

ELECTROMAGNETIC BRAKE
The heavy-duty DC electromagnetic brake is designed for durability and longer life. The DC brake is an industry-proven safety feature that secures the load even if power is interrupted to the hoist.

THERMAL OVERLOAD PROTECTION
Protects the motor from overheating in low voltage situations, protecting your investment.

OVERLOAD PROTECTION
Standard across the VOLT line, Overload Protection prevents the operator from being able to lift more than the rated capacity of the hoist, protecting both the user and the equipment.

INNOVATION
An established innovation leader, JET brings true variable speed technology to the market for the first time.

FULL-RANGE SPEED CONTROL
Patent-pending, the Full-Range Speed Control technology means seamless speed changes and total control at your fingertips.

HITACHI INVERTER
When precision matters, you want a hoist that gives you the maneuverability to accurately control the placement of a load. Proprietary software technology controlled by the Hitachi inverter ensures smooth, continuous control with soft starts and stops throughout the lift.

INDUSTRY STANDARDS
JET hoists comply with OSHA, ANSI and ASME standards and include a test certficiate.

Specifications 230 Volt
Stock No  Model No Capacity
(Tons)
standard Lift
(Ft.)
PHASE VOLTAGE Headroom (in.) Duty Rating Duty
Cycle
(percent)
Lifting Speed
(FPM)
5 TON 1 PHASE/3 PHASE
180501 VOLT -500-13P-10 5 10 1/3 230v 26-3/16 H4 40 0-12
180515 VOLT -500-13P-15 5 15 1/3 230v 26-3/16 H4 40 0-12
181520 VOLT -500-13P-20 5 20 1/3 230v 26-3/16 H4 40 0-12
Specifications 460 Volt
5 TON 3 PHASE
180511 VOLT -500-03P-10 5 10 1/3 230v 26-3/16 H4 40 0-12
180516 VOLT -500-03P-15 5 15 1/3 230v 26-3/16 H4 40 0-12
180521 VOLT -500-03P-20 5 20 1/3 230v 26-3/16 H4 40 0-12



  Part # Description
s-h alt 162410 PBC-410VOLT 4-Button Control Pendant For 10' Lift Hoist and Trolley
s-h alt 162415 PBC-415VOLT 4-Button Control Pendant For 15' Lift Hoist and Trolley
s-h alt 162420 PBC-420VOLT 4-Button Control Pendant For 20' Lift Hoist and Trolley
 Tolleys
Stock Number Capacity (lb) Beam Flange
Width (in)
Travel Speed
(fpm)
Hook Mount
Head Room
Motor Duty Cycle
Rating
(percent)
Min Curve
(in)
Weight
(lbs)
1 Phase
272730 6600 4 - 6 39-1/3 9 1HP, 1PH,
115/230V
25 59 161
3 Phase
262630 6600 4 - 6 39-1/3 9 1HP, 3PH, 230/460V 25 59 156.2



180501

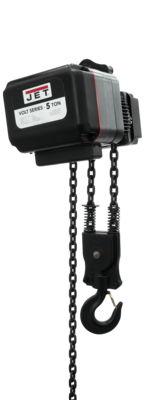

>>VOLT 5 TON ELECTRIC HOIST 1PH/3PH 230V 10 LIFT ** SHIPS BY LTL TRUCK / WEIGHT = 325 LBS
Mfg. item #: 180501
WMH180501
lease to own for as little as:$120 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$6,009.31

1101
180515
>>VOLT 5 TON ELECTRIC HOIST 1PH/3PH 230V 15 LIFT ** SHIPS BY LTL TRUCK / WEIGHT = 332 LBS
Mfg. item #: 180515
WMH180515
lease to own for as little as:$131 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$6,544.45

1101
181520
>>VOLT 5 TON ELECTRIC HOIST 1PH/3PH 230V 20 LIFT ** SHIPS BY LTL TRUCK / WEIGHT = 339 LBS
Mfg. item #: 181520
WMH181520
lease to own for as little as:$138 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$6,883.49

1101
180511
++ VOLT 5 TON ELECTRIC HOIST 3PH 460V 10 LIFT -- WHILE SUPPLIES LAST ** SHIPS LTL TRUCK FREIGHT, WGT = 325 LBS
CALL 800-458-3687 FOR OUR EXCLUSIVE BROTHER-IN-LAW SPECIAL ON THIS ITEM
Mfg. item #: 180511
WMH180511
lease to own for as little as:$114 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$5,707.85

247
180516
++ VOLT 5 TON ELECTRIC HOIST 3PH 460V 15 LIFT -- WHILE SUPPLIES LAST ** SHIPS LTL TRUCK FREIGHT, WGT = 332 LBS
CALL 800-458-3687 FOR OUR EXCLUSIVE BROTHER-IN-LAW SPECIAL ON THIS ITEM
Mfg. item #: 180516
WMH180516
lease to own for as little as:$122 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$6,089.73

247
180521
++ VOLT 5 TON ELECTRIC HOIST 3PH 460V 20 LIFT -- WHILE SUPPLIES LAST ** SHIPS LTL TRUCK FREIGHT, WGT = 339 LBS
CALL 800-458-3687 FOR OUR EXCLUSIVE BROTHER-IN-LAW SPECIAL ON THIS ITEM
Mfg. item #: 180521
WMH180521
lease to own for as little as:$132 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$6,617.37

247
162410
++ VOLT 4 BUTTON CONTROL PENDANT, 10 LIFT -- WHILE SUPPLIES LAST - MADE IN CHINA ** UPS/FEDEX GROUND & WEIGHT = 4.4 LBS
Mfg. item #: 162410
WMH162410
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1019
$143.00

18
162415
++ VOLT 4 BUTTON CONTROL PENDANT, 15 LIFT -- WHILE SUPPLIES LAST - MADE IN CHINA ** UPS/FEDEX GROUND & WEIGHT = 4.85 LBS
Mfg. item #: 162415
WMH162415
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1019
$170.00

18
162420
++ VOLT 4 BUTTON CONTROL PENDANT, 20 LIFT -- WHILE SUPPLIES LAST - MADE IN CHINA ** UPS/FEDEX GROUND & WEIGHT = 5.29 LBS
Mfg. item #: 162420
WMH162420
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment1019
$186.00

18
272730
3ET-1C, 3 TON, 1PH, 115/230V, PREWIRED 230V -- WHILE SUPPLIES LAST - SHIPS LTL TRUCK FREIGHT
CALL 800-458-3687 X1 FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL
Mfg. item #: 272730
WMH272730
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$1,396.76

368
262630
3ET-3C, 3 TON, 3PH, 230/460V, PREWIRED 460V -- WHILE SUPPLIES LAST - SHIPS LTL TRUCK FREIGHT
CALL 800-458-3687 X1 FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL
Mfg. item #: 262630
WMH262630
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$1,277.16

368
