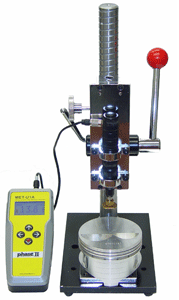

|Shown with optional support stand|
The PHASE II ultrasonic portable hardness testers are capable of measuring the surface hardness of a broad variety of metals on flat, round, thin or large surfaces. Unlike the standard Dynamic hardness testers, these state-of-the-art portable hardness testers incorporate Ultrasonic UCI technology, which enables the hardness testing of very thin and small workpieces, which otherwise could not be tested accurately using a portable device. Non-destructive in it's function, these hardness testers allow for the testing of highly sensitive or finished parts that previously could not be tested in an operational setting. The non-destructive (ndt) feature of these hardness testers allow the operator to accurately test parts without causing physical or structural damage that would normally lead to disposal or refinish of operators part. That translates into less scrap parts/ lower mfg costs due to necessary inspections.
PHASE II offers two models of ultrasonic hardness testers that are capable of measuring the surface hardness of a broad variety of metals on flat, round, thin or large surfaces. Accurate measurements of steel, cast steel, alloy steel, aluminum, brass, bronze and copper are easily attained with this compact instrument.
The MET-U1A/U1A50 meets ASTM A1038-10 specifications.
UCI Portable Hardness Testing Method:
Model Nos. MET-U1A and MET-U1A50
Ultrasonic Contact Impedance is a hardness testing method based on the measurement of the frequency shift of a resonating rod caused by the essentially elastic nature of the finite area of contact between the indenter and the test piece during the penetration. Described as a hardness testing practice using a calibrated instrument by pressing a resonating rod with a Vickers style Diamond indentor with a fixed force against the surface of the part to be tested.

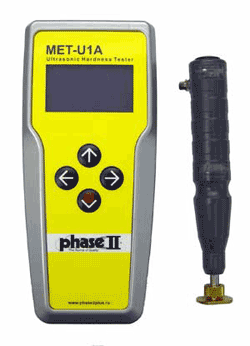

MET-U1A and MET-U1A50 Hardness Tester
|Technical data for MET U1A/U1A50|
|Transducer Test Life (approx)||200,000|
|Min. Thickness for test||1mm|
|Min. Radius for Test||5mm|
|Max Roughness of surface (MET-U1A)||Ra 2.5Âµm|
|Max Roughness of surface (MET-U1A50)||Ra 4.5Âµm|
|Max Archive||100 Tests|
|Time of Test||1.5 seconds|
