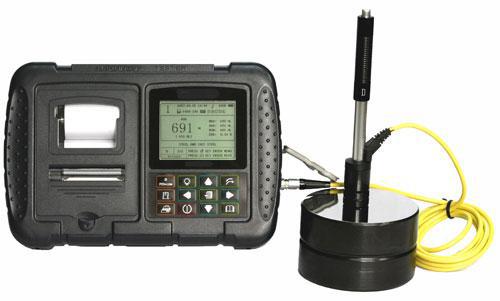

Phase 2 PHT-4000 Advanced Stats Portable

s-h alt

s-h alt



Our top of the line portable hardness tester incorporates multiple statistical and printing features, high accuracy and ease of use bundled in a rugged hard plastic body to bring you lightning fast test results with the touch of a button. Utilizing USB output, the PHT-4000 will print directly to your PC or the built-in printer.

Designed to test large hard parts:
Example: Tool steel should be close to 1 inch thick of solid material

Operation:

  • Load the impact body
  • Place the impact body on your test piece
  • Push the button to begin testing and obtain reading

Standard Accessories:

  • Base instrument
  • Impact device D
  • Calibrated test block
  • Custom carry case
  • Cleaning brush
  • Operation manual

Optional accessories:

  • Impact devices; DC, D+15, DL, G, C
  • Special support rings

Functions:

  • Easy to read menu operation
  • Large LCD display with back light
  • USB Ouput
  • Automatic conversions to: Brinell, Rockwell, Vicker
    and Shore
  • Automatic mean value as well as Min & Max values
  • Multi-Functional Data storage capacity
Specifications
Accuracy: +/- 0.5 percent (referred to L=800
Repeatability accuracy: +/- 4L units) L=Leeb
Measuring range: 200-960 HL
Materials: steel and cast steel, alloy tool steel, stainless steel, grey cast iron, spheroidal iron, cast aluminum, brass, bronze, wrought copper alloy
Battery type: AAA alkaline (4)
Operating  temperature: 5-104 degrees F
Dimensions: 108 x 62 x 25mm
Weight: 230 grams



Stock No. Description
MET-U1A Ultrasonic  Hardness Tester w/ output
MET-U1A50 NEW! Ultrasonic Hardness Tester w/ output

MET-U1A
ULTRASONIC HARDNESS TESTER W/ OUTPUT
Mfg. item #: MET-U1A
PHAMET-U1A
lease to own for as little as:$89 per month!
Ships FREE via UPS to lower 48 states.5
$4,441.16

2546
MET-U1A50
NEW! ULTRASONIC HARDNESS TESTER W/ OUTPUT
Mfg. item #: MET-U1A50
PHAMET-U1A50
lease to own for as little as:$89 per month!
Ships FREE via UPS to lower 48 states.5
$4,441.16

2546
