Powermatic PM-2x Series CNC Kits
|
|

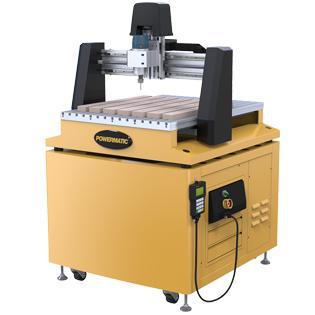

PM-2x2RK CNC Kit with Router Mount
|

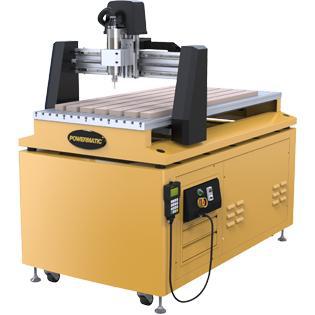

PM-2x4SPK CNC Kit with Electro Spindle
|
|
PM-2x2RK CNC Kit with Router Mount has a 5 Year warranty
-
Heavy-duty welded steel frame provides rigidity and maintains accuracy
-
The extruded aluminum table delivers a large, sturdy surface while the integrated T-slots allow the hold-down clamps to be positioned in any location
-
An MDF spoil board protects the table from damage and can be quickly resurfaced using the pre-loaded program
-
Exclusive, heavy-duty gantry supports are made of gravity cast aluminum
-
Precision ball screws with recirculating ball bearings allow for rapid movement on each axis while maintaining precise spindle placement
-
Linear guideways with recirculating ball bearings ensure precise and accurate positioning of the tool bit
-
The handheld controller attaches to the DSP control box via a 8 foot cable that makes it easy to oversee any project from a variety of positions
-
Flexible nylon track chains protect all cables preventing rubbing and stress
-
High-torque stepper motors control each axis, providing fast, quiet and precise movement
-
The included puck allows you to quickly and easily re-zero your Z-axis with the push of a button on your controller
-
Enclosed steel stand features drawers for storage, casters for mobility and independent leveling feet
-
Hold down clamps have a 5/16 inch T-bolt with a 1-1/8 inch wide by 5-1/4 inch aluminum arm - 4 hold down clamps included with CNC kit
-
Included dust shoe provides a clean surface as the machine works when hooked up to a dust collector
-
Universal 3-1/2 inch router mount (router not included)
|
Detailed Specifications
|
Style (Type)
|
Router
|
X-Axis Travel (In.)
|
24
|
Y-Axis Travel (In.)
|
24
|
Z-Axis Travel (In.)
|
6
|
Precision Ball Screw Axis
|
X/Y/Z
|
Precision Linear Guide Axis
|
X/Y/Z
|
Rapid Feed Rate (IPM)
|
200
|
Router
|
Not included
|
Collet
|
n/a
|
Spindle Speed (RPM)
|
n/a
|
Touch Off Puck
|
Included
|
Motor Phase
|
1
|
Motor Power (HP)
|
n/a
|
Motor Voltage (V.)
|
115V only
|
Prewired Voltage (V.)
|
115
|
Recommended Circuit Size (Amps.)
|
15
|
Floor Space Required (In.)
|
52x45
|
Dust Collection Minimum CFM Required (CFM)
|
300
|
Weight (Lbs.)
|
598
|
|
PM-2x4SPK CNC Kit with Electro Spindle has a 5 Year warranty
-
Heavy-duty welded steel frame provides rigidity and maintains accuracy
-
The extruded aluminum table delivers a large, sturdy surface while the integrated T-slots allow the hold-down clamps to be positioned in any location
-
An MDF spoil board protects the table from damage and can be quickly resurfaced using the pre-loaded program
-
Exclusive, heavy-duty gantry supports are made of gravity cast aluminum
-
Precision ball screws with recirculating ball bearings allow for rapid movement on each axis while maintaining precise spindle placement
-
The electro spindle is liquid cooled by a system that pushes coolant through the spindle while a radiator and fan assembly dissipate the heat
-
Linear guideways with recirculating ball bearings ensure precise and accurate positioning of the tool bit
-
The handheld controller attaches to the DSP control box via a 8 foot cable that makes it easy to oversee any project from a variety of positions
-
Flexible nylon track chains protect all cables preventing rubbing and stress
-
High-torque stepper motors control each axis, providing fast, quiet and precise movement
-
The included puck allows you to quickly and easily re-zero your Z-axis with the push of a button on your controller
-
Enclosed steel stand features drawers for storage, casters for mobility and independent leveling feet
-
Hold down clamps have a 5/16 inch T-bolt with a 1-1/8 inch wide by 5-1/4 inch aluminum arm - 4 hold down clamps included with CNC kit
-
Included dust shoe provides a clean surface as the machine works when hooked up to a dust collector
|
Detailed Specifications
|
Style (Type)
|
Spindle
|
X-Axis Travel (In.)
|
24
|
Y-Axis Travel (In.)
|
48
|
Z-Axis Travel (In.)
|
6
|
Precision Ball Screw Axis
|
X/Y/Z
|
Precision Linear Guide Axis
|
X/Y/Z
|
Rapid Feed Rate (IPM)
|
200
|
Router
|
Spindle
|
Collet
|
ER-20
|
Spindle Speed (RPM)
|
0-24,000
|
Touch Off Puck
|
Included
|
Motor Phase
|
1
|
Motor Power (HP)
|
3
|
Motor Voltage (V.)
|
230
|
Prewired Voltage (V.)
|
230
|
Recommended Circuit Size (Amps.)
|
10
|
Floor Space Required (In.)
|
52x96
|
Dust Collection Minimum CFM Required (CFM)
|
300
|
Weight (Lbs.)
|
748
|
|
WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the
United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform
routine maintenance and major repair on your POWERMATIC tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
|
Models and Accessories
|
1797022K
|
PM-2X2RK 2X2 CNC KIT W/ROUTER MOUNT
|
1797024K
|
PM-2X4SPK 2X4 CNC KIT W/ELECTRO SPINDLE
|
1797000
|
CNC Hold Downs (set of 2)
|
1797001
|
CNC Dust Shoe
|
1797003
|
CNC Router Bit Set
|
PM-2X2RK 2X2 CNC KIT WITH ROUTER MOUNT -- WHILE SUPPLIES LAST, MADE IN TAIWAN, WGT = 600 LBS, SHIPS LTL TRUCK FREIGHT
Mfg. item #: 1797022K
WMH1797022K
lease to own for as little as:$158 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service.
4
PM-2X4SPK 2X4 CNC KIT WITH ELECTRO SPINDLE -- WHILE SUPPLIES LAST, MADE IN TAIWAN, WGT = 750 LBS, SHIPS LTL TRUCK FREIGHT
CALL 800-458-3676 X1 FOR THE BEST BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: 1797024K
WMH1797024K
lease to own for as little as:$206 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service.
4
PM-HD CNC HOLD DOWNS (SET OF 2) -- WHILE SUPPLIES LAST, MADE IN TAIWAN, WGT = 1.5 LBS, SHIPS BEST WAY
Mfg. item #: 1797000
WMH1797000
Call for freight quote on this item or we will confirm freight charges before shipping.1
PM-DS CNC DUST SHOE -- WHILE SUPPLIES LAST, MADE IN TAIWAN, WGT = 1.2 LBS, SHIPS BEST WAY
Mfg. item #: 1797001
WMH1797001
Call for freight quote on this item or we will confirm freight charges before shipping.1
PM-RBS CNC ROUTER BIT SET -- WHILE SUPPLIES LAST, MADE IN TAIWAN, WGT = 4.2 LBS, SHIPS BEST WAY
Mfg. item #: 1797003
WMH1797003
Factory Direct Ship - Free Shipping ONLY when added to JET, Powermatic or Baileigh Equipment8
