Rikon Panel Saws

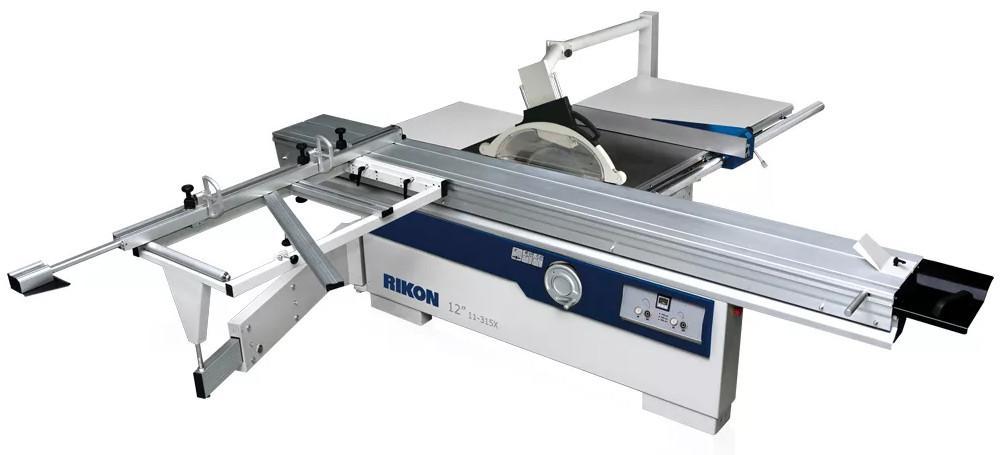

Model 11-315X: 12 inch Panel Saw

The 11-315X panel saw is the starting point of the RIKON industrial sliding table saws. The new manufacturing techniques, continuous research and development coupled with advanced design solutions are all factors that ensure that the 11-315X can offer outstanding accuracy, quality and value.



Features:

  • The Cast iron table and massive steel frame give extra support for stability and reduced vibration
  • Large section profile cross cutting fence with reversible fence stops
  • Extended fence with low profile edge adjusts for thin material cutting
  • Roller guide sliding along tempered and ground prismatic guides guarantees smooth and precision sliding cutting
Models
11-315X 12 inch Panel Saw




Motor
Horsepower 5.5 HP
Amps 14
Volts 220V, 60 hz, 3 Ph
RPM 2,800

Scoring Motor
Horsepower 1 HP
Amps 3.2
Volts 220v, 60Hz, 3Ph
Scoring Motor Output 0.55kW S1
RPM 2,800

Panel Saw
Main Blade Arbor 30mm
Main Blade Diameter 12 inch
Main Blade Speed 4,000 RPM
Blade Tilt 0 - 45 deg
Max Depth of Cut at 45 deg 2-11/16 inch
Max Depth of Cut at 90 deg 3-1/2 inch
Scoring Blade Arbor 20mm
Scoring Blade Diameter 4-3/4 inch
Scoring Blade Speed 8,000 RPM
Maximum Rip Capacity 49-1/4 inch
Sliding Beam Size 126 x 14 inch
Sliding Beam Cutting Capacity 126 inch
Dust Extraction Outlet 4 inch
Table Size 31-1/2 inch (20-7/8 inch + 32-1/4 inch)

Footprint Dimensions
Height (Floor to Over-Arm-Guard) 65 inch
Width 214 inch
Depth 264 inch
Net Weight 1,230 lbs.
Shipping Weight 1,500 lbs.
Carton 1 90-1/2 x 45-5/8 x 45-5/8 inch
Carton 2 90-1/2 x 19 x 8-1/4 inch
Warranty 5 Years



Warranty

RIKON Power Tools Inc. (Seller) warrants to only the original retail consumer/ purchaser of our products that each product be free from defects in materials and workmanship for a period of five (5) years from the date the product was purchased at retail. This warranty may not be transferred.

This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs, alterations, lack of maintenance or normal wear and tear. Under no circumstances will Seller be liable for incidental or consequential damages resulting from defective products. All other warranties, expressed or implied, whether of merchantability, fitness for purpose, or otherwise are expressly disclaimed by Seller. This five-year warranty does not cover products used for commercial, industrial or educational purposes. The warranty term for these claims will be limited to a two-year period.

This limited warranty does not apply to accessory items such as blades, drill bits, sanding discs, grinding wheels, guide bearings or belts and other related items.

Seller shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special, or consequential damages arising from the use of our products.

To take advantage of this warranty proof of purchase documentation, which includes date of purchase and an explanation of the complaint, must be provided.

The Seller reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.

To ensure you get the best service possible, please register your product online.

oliver 0812 Circular blade sharpener

Finally, a sharpener for every home shop that will make your cutting job more efficient and easier at anytime and anywhere. All you need is the 0812 Circular Blade

Sharpener and a hand grinder with our included diamond grinding wheel, and you can save your workshop upkeep and have your blades in prime condition for efficiency and safety assurance.

Easy to use and almost hands free grinding allows you to
configure the sharpener to work with blades from 7.5 to 12 inch in diameter with 5/8 or 1 inch arbor.

Packaging Size

  • NW/GW: 24lbs/26.5lbs
  • 10 x 20 x 18.5 inch
  • 4 inch Angle grinder required for use
    (Not Included)

Features:

  • Sharpens circular saw blades from 7.5 to 12 inch diameter.
  • Portable compact design.
  • Sturdy die casting iron base.
  • 4 inch diamond blade included
  • Suitable for regular blades and carbide tip blades.
  • 2 Year Limited Warranty

Oliver cicular saw blade sharpener
812 Circular Saw Blade Sharpener



11-315X
12 PANEL SAW W/SCORING BLADE
Mfg. item #: 11-315X
RIK11-315X
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

92
812
CALL 800-458-3687 FOR PRICING - CALL 800-458-3687 FOR PRICING - SAW BLADE SHARPENER
Mfg. item #: 812
OLV812
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$349.00

398
