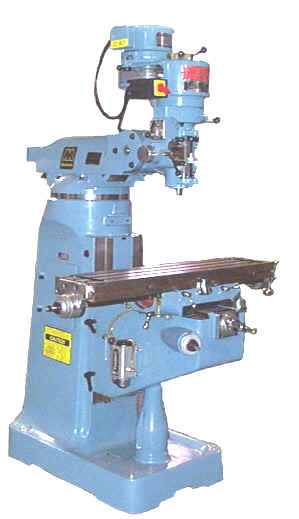

USI 2SH Mill

Features

• Meehanite Castings
• Turcite B Coatings
• Hardened and Ground and precisely scraped work table
• Saddle and knee ways
• Centralized one shot lubrication
• Brass double nut backlash adjustment
• Double locks on all axes
• One piece quill pinion and shaft, dust covers (knee and cross-slide), with "dish-in" coolant tank base

There are no further details.

Specifications
Table Size	9"x42"
Longitudinal Travel	30"
Cross-Slide Travel	12 1/2"
Vertical Knee Travel	16 3/8"
Ram Travel	12 1/4"
Head Movement (R/L)	90 Deg.
Head Tilt (F/B)45 Deg.	45 Deg.
Ram Circular Movement	360 Deg.
Table to Spindle	18 3/4"
T-Slots	3 @2 1/2", 5/8" ea.
Spindle Speed Range (Via Step Pulley)	80-5440 RPM
Spindle Taper	R-8
Spindle Bearings	P4 Angular Contact,Pre-Loaded,Class 7
Power Quill Feeds	(i.p.r. 0.0015~0.003~0.006 Max.)
Weight, Work Piece	550 lbs.
Spindle Motor	2 HP,3Ph,220/440V,60 Hz
Quill Travel & Diameter	5" and 3 3/8"
Machine, Net Weight	2200 lbs.





There are no listed accessories.
