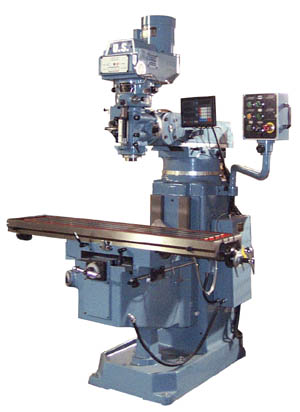

USI 5VM Mill

Features:

• Meehanite Castings

• 12 ½" x 58" Work Surface Table

• Ways and Slides are Hardened and Ground With Precision Hand Scraping Where Applicable plus Turcite B Coating

• Ways and Slides are Hardened and Ground With Precision Hand Scraping Where Applicable

• Standard With Heavy Duty 5 HP Main Motor With Variable Speed Drive System With a 2 HP Knee-Lift Drive Motor

• Automatic Lubrication, Flood Coolant With Oversize Chip/Drip Pan

• Convenient Pendent Control Panel

• 4" Diameter NST Spindle

• Massive Square Ways on the Y & Z Axis

• Double Wall Column

• Double Locking System On All Axis

• Adds Up To Heavy Duty Cutting With Precision Impact

• Adequate Safety Features

• Dust Covers For Knee and Cross Ways Are Included Along With Drawbar

• Tool Box Set-Up Tools and Oiler

There are no further details.

Specifications
Table Size	12.5" x 58"
Longitudinal Travel	42"
Cross-Slide Travel	15 1/2"
Vertical Knee Travel	16 "
Ram Travel	21"
Head Movement (R/L)	90 Deg.
Head Tilt (F/B)45 Deg.	45 Deg.
Ram Circular Movement	360 Deg.
Table to Spindle	20"
T-Slots	3 @2 1/2", 5/8" ea.
Spindle Speed Range	50-3750 RPM
Spindle Taper	NST # 40
Spindle Bearings	P4 Angular Contact, Pre-Loaded, Class 7
Power Quill Feeds	(i.p.r. 0.0015~0.003~0.006 Max.)
Weight, Work Piece	1200 lbs.
Spindle Motor	5 HP,3Ph,220/440V,60 Hz
Quill Travel & Diameter	5" and 3 3/8"
Machine, Net Weight	3960 lbs.



There are no listed accessories.
