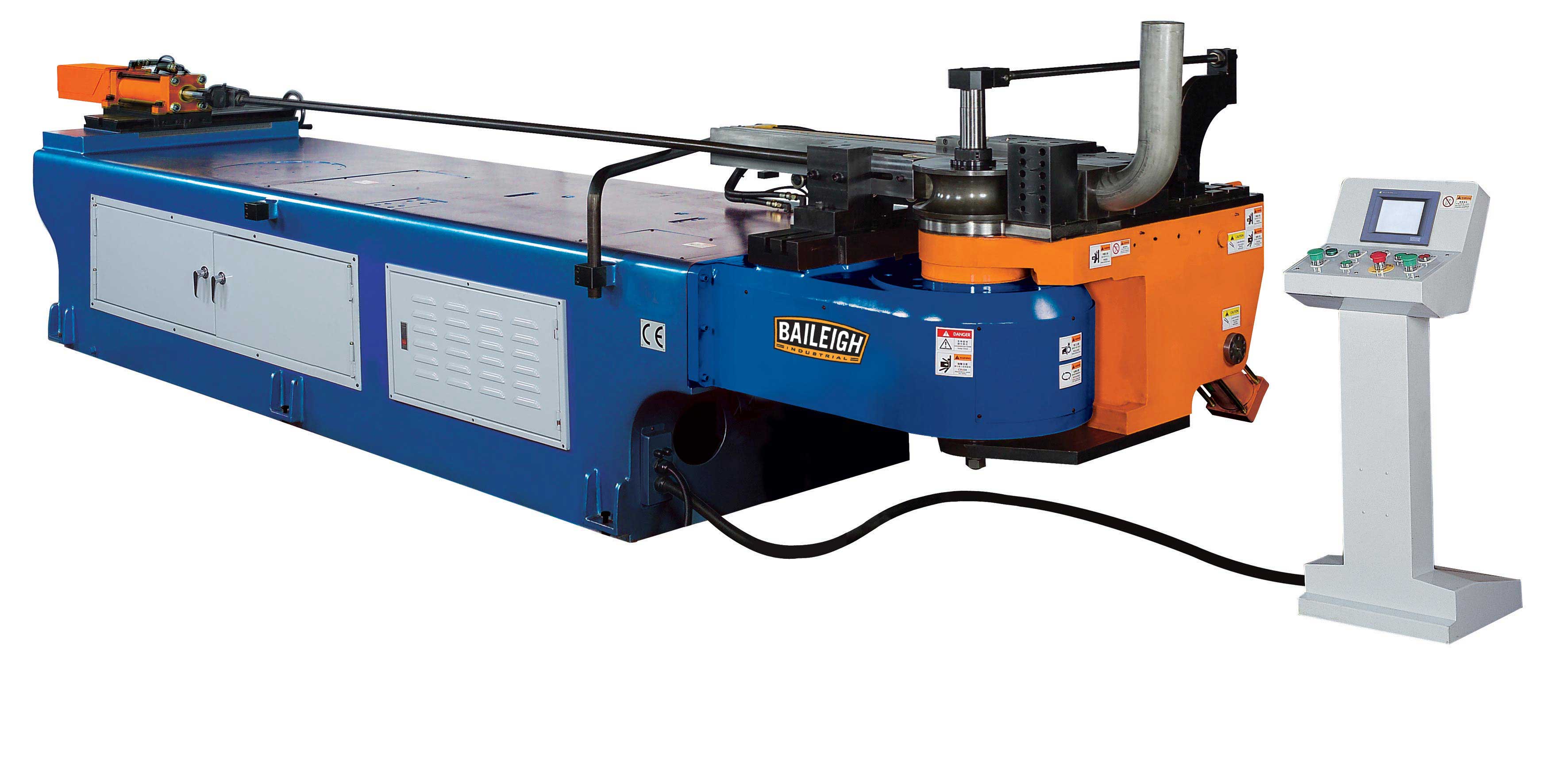

Baileigh NCB-130 Mandrel Bender


  • Designed with strong clamping and bending capacities for mass production requirements.

  • PLC-based digital control for setting single or multiple degree bends.

  • Equipped with user-friendly touch screen for easy operation.

  • Alarm display on the touch-screen for troubleshooting.

  • Mandrel pre-reverse, booster and spring-back angles can be set.

  • Available overhead tie bar.

There are no further details.


Max. Bending Capacity (Round) 5" x .275"
Max. Bending Capacity (Square) 4" x .157wt / 8" CLR
Max. Radius (CLR) 6 3/4" - 19 1/2"
Range of Bending 190°
Length of Mandrel 13'
Bending Speed 10°/sec
Bending Accuracy ±0.1°
Number of Programs 99
Bending Number 20/Program
Power 37.5 hp
Dimensions 236.22" x 98.42" x 59"
Weight 8800 lbs

Please Call 1-800-458-3687 For Special Pricing on This Mandrel Bender!!!
