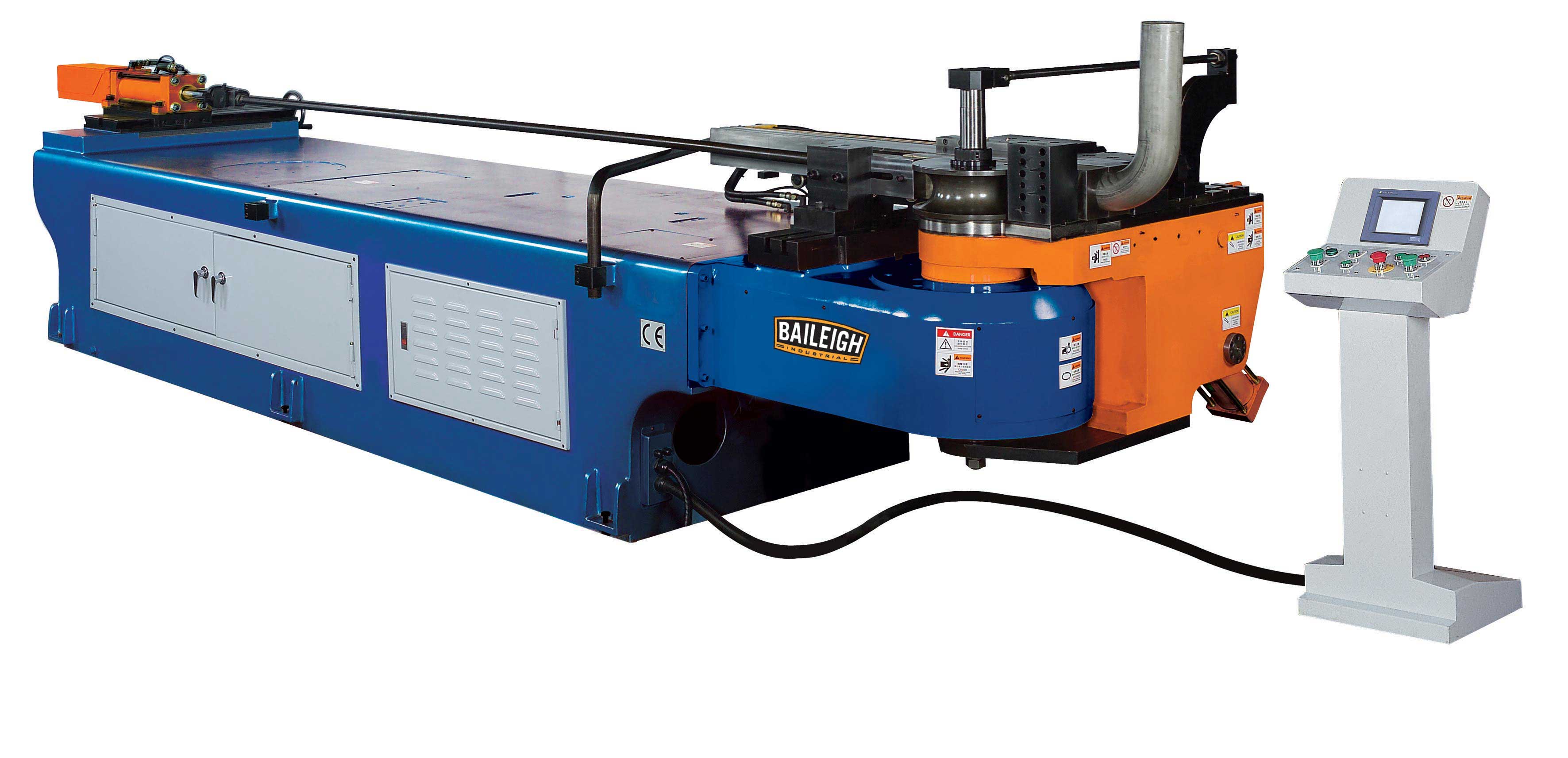

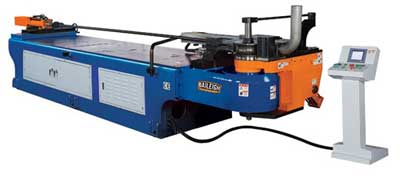

Baileigh NCB-150 Mandrel Bender


  • Designed with strong clamping and bending capacities for mass production requirements.

  • PLC-based digital control for setting single or multiple degree bends.

  • Equipped with user-friendly touch screen for easy operation.

  • Alarm display on the touch-screen for troubleshooting.

  • Mandrel pre-reverse, booster and spring-back angles can be set.

  • Available overhead tie bar.

There are no further details.


Max. Bending Capacity (Round) 6" x .314"
Max. Bending Capacity (Square) 5" x .196wt / 10" CLR
Max. Radius (CLR) 23 1/2"
Range of Bending 190°
Length of Mandrel 13'
Bending Speed 8°/sec
Bending Accuracy ±0.1°
Number of Programs 99
Bending Number 20/Program
Power 40 hp
Dimensions 255.9" x 78.7" x 63"
Weight 10,560 lbs

Please Call 1-800-458-3687 For Special Pricing on This Mandrel Bender!!!
