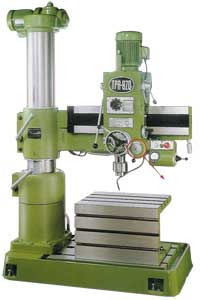

Birmingham TPR 720A - 920A

FEATURES:

• Limit safety device is available to assure Security while operating.

• High speed gears are made of nickel-chrome steel and through the process of heat treatment and grinding

• 2HP - Power motor is avaliable for heavy duty cutting

• Extra auxiliary dial for spindle feed depth indication. With this indicator, we can review the momental feed depth of spindle 1 through 200mm at any moment

• Special mechanism for spindle balance. With this mechanism, we can save lots of headache to avoid the defect on breaking of balance spring. And it is more durable than all Taiwan made traditional balance mechanism

Standard Accessories: Tools (1 Set) Coolant Pump (1 Set) Work Lamp (1 Set) Box Table (1 Set)

SPECIFICATION / OVERALL DIMENSION
MODEL			TPR-720A	TPR-820A	TPR-920A
Dia. of column			210(8-1/4")			E
Distance from column surface to spindle center, Max.			750 (29 1/2")	850 (33 1/2")	950 (37 3/8")	D+C
Distance from column surface to spindle center, Min.			220 (8 5/8")			D
Travel of spindle head			530 (20 7/8")	630 (24 7/8")	730 (28 3/4")	C
Distance from Base surface to spindle end, Max.			1060 (41 3/4")	1210 (47 5/8")		A
Distance from Base surface to spindle end, Min.			455-210 = 245 (9 5/8")	560-210=350 (13 3/4")		B
Elevating height of arm			605 (23 13/16")	650 (25 9/16")		A+B
Effective area of Box Table			600x445x380 23 5/8" x 17 1/2" x 15"			LxKxH
Dimensions Base			1260x640x160 49 5/8" x 25 3/16" x 6 9/32"			RxSxQ
Taper hole Spindle			MT #4
Stroke of spindle			210 (8 1/4")
R.P.M. of spindle (rpmxsteps)			88, 154, 282, 455, 796, 1500 x 6
Feed of spindle (revxsteps)			0.05, 0.09, 0.15 x 3 (0.002", 0.0035", 0.006")
Main motor (HP)			2
Elevating motor (HP)			1
Coolant equipment (HP)			1/8
Machine heigh from Floor (max)			2170 (85 7/16")	2320 (91 3/8")		F
Net weigh (approx) Kgs (lbs)			1200 Kgs (2640 lb)	1300 Kgs (2860 lb)	1350 Kgs (2970 lb)
Shipping Dimensions (LxWxH)			64" x 32" x 85"	66" x 32" x 86"	71" x 32" x 86"
Shipping weigh (approx) Kgs (lbs)			1350 Kgs (2970 lb)	1450 Kgs (3190 lb)	1500 Kgs (3300 lb)
Capacity	Drilling	Steel	380 (1 1/2")
		Cast Iron	500 (2")
	Tapping	Steel	250 (1")
		Cast Iron	320 (1 1/4")
	Boring	Steel	700 (2 3/4")
		Cast Iron	1050 (4 1/6")
