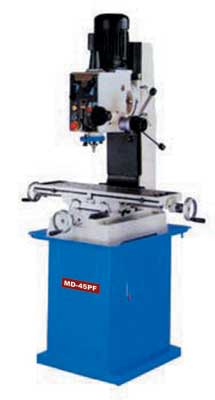

GMC MD-45 Mill/Drill

Standard Features:

  • ISO 9001 certified
  • R8 spindle
  • Geared head
  • 6 speeds from 90, 170, 280, 500, 1000, 1970 rpm
  • Hardened & ground guideways
  • Square column & dovetail ways
  • Precision ground ACME leadscrews
  • Rotating head +, - 90 degree
  • Automatic power spindle down feed
  • Power source 110V, 1 phase
  • One year warranty for parts

Standard Equipment

  • 1/2" drill chuck
  • Drill chuck arbor
  • 1 ea. manual draw bar
  • Oil gun tools
SPECIFICATIONS
Model MD-45PF
Table size 9 1/2" x 32
Table load capacity (lbs) 300
X axis table longitudinal travel 22 1/4"
Y axis table cross travel 9"
Max distance from spindle to table 18"
Spindle Taper Type R8
Spindle motor 1 1/2HP, 110V
Spindle speeds, 6 steps 90-1,970 rpm
Spindle diameter 3"
Spindle travel 4"
Spindle power down feed rate 0.004", 0.007", 0.01" / rev
Table T-slot size 1/2" x 4 slots
Head swivel, RH / LH 90 degree
Machine weight
(approx) LBS 		without stand 730
with stand 790
Dimensions (approx) 35 x 30 x 46"

Optional

  • Deluxe stand
  • DRO Newall C80, #NW-922, 2 axis, free installation
  • Power feed # FP-125X, Taiwan Align, x axis, free install
  • 3" vise # 900-0021-3
  • 6" vise #900-0021-6
  • 52 pcs clamping kit # 900-0001, 1/2" - 13 NC stud, 5/8" t-slot
  • 11pc R8 collet set # R8, 1/8" - 3/4" by 1/8"
  • Halogen work light # HWL
  • Coolant system # Cool-FL, floor type with tank
MD-45PF
DISCONTINUED
Mfg. item #: MD-45PF
GMCMD-45PF
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price
