Jet J-1230R-4 Radial Drill Press

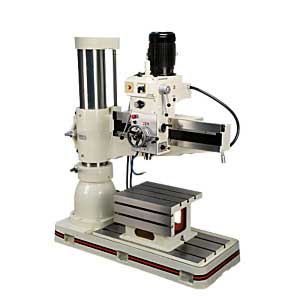

 The Jet J-1230R-4 RADIAL DRILL PRESS 5HP, 460V
has a 2 Year warranty

  • The power train gears and spline shaft are made of the finest quality, heat treated and ground nickel-chrome steel, giving extra strength and smoothness to high torque loads
  • The spindle is made of the finest case hardened steel for extra strength and wear
  • The spindle is supported by double row taper roller and thrust ball bearings at the nose, with thrust and radial axis bearings at the top
  • The spindle is built to withstand exceptionally heavy drilling and boring loads and to insure maximum accuracy
  • Push button controls are all reduced to 110V
  • Electrical circuits are located in the built-in control box at the rear of the arm- this keeps the contols dust and humidity free while making them easily accessible for maintenance
  • Entire frame is made of Meehanite and high tensile strength cast iron to handle the heaviest of jobs
  • Arm raising safety device prevents arm from dropping
  • Counter balanced mechanism for spindle return
  • 12 speeds/3 feed rates make exotic materials easier to drill, bore and tap
  • Centralized control center
  • Automatic tool ejector
  • Independent manual arm clamping system, which locks and unlocks the head and column
  • Built in work light
  • Coolant pump
  • Tool kit
  • Box table
There are no further details.
Detailed Specifications
Part Number 320037
Arm Travel Vertical (in.) 35
Base Dimensions (in.) 67-3/4 X 28 X 7
Boring Capacity Cast Iron (in.) 4-3/4
Boring Capacity Steel (in.) 3-3/8
Brand Jet
Column Diameter (in.) 11-13/16
Coolant Pump Motor 1/8 HP
Distance Base to Spindle (max/in.) 54
Distance Base to Spindle (min/in.) 19-3/8
Distance Column to Spindle (max/in.) 46
Distance Column to Spindle (min/in.) 13-3/4
Drilling Capacity Cast Iron (in.) 2-5/16
Drilling Capacity Mild Steel (in.) 1-7/8
Elevating Motor 1 HP
Height 88.5 inch
Length 80 inch
Max Distance Spindle to Table ( in.) 37-1/2
Model Number J-1230R-4
Motor 2-1/2 to 5 HP, 460V, 3 Ph
Net Weight 5070 pound
Number of Spindle speeds 12 (44 - 1500)
Overall Dimensions 80 x 39 x 89
Part Number 320037
Quill Down feed Rates (IPR) 3 (.002, .004, .006)
Quill Travel (in.) 9-7/8
Quill Travel w/ Powerfeed engaged (in.) 9-7/16
Spindle Taper MT-4
T-Slots Number and Size (in.) 3 & 3/4
Table Dimensions (in.) 25 x 20-1/2 x 16-15/16
Tapping Capacity Cast Iron (in.) 1-1/2
Tapping Capacity Mild Steel (in.)
Travel of Head Horizontal (in.) 35
Web Description J-1230R-4 RADIAL DRILL PRESS 5HP, 460V
Width 39.25 inch
