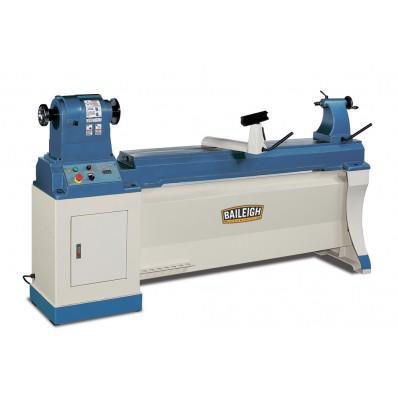

Baileigh WL-2060VS Woodworking Lathe

Woodworking Lathe WL-2060VS

1008390

The WL-2060VS is the biggest in the Baileigh Industrial line of woodworking lathes.  The large pattern makers lathe features a 20 inch swing and 60 inches between centers, making it large enough for almost any project.   Massive cast iron construction, make this one of the most rigid lathes on the market, this is good because of it large inboard turning capacity.

A built-in inverter for variable-speed spindle control powers the 3hp motor without requiring 3-phase power make this heavy-duty wood lathe the only choice for serious wood turners. The variable-speed control knob and digital RPM readout make it easy to dial in the perfect spindle speed.  The WL-2060VS also offers the option of outboard turning, this is especially important when turning large projects.

specifications subject to change without notice.

JET Lathe Chuck Set 1 inch x 8TPI

To compliment our extensive line of woodturning lathes, JET is introducing a nickel plated chuck with five unique sets of jaws, to keep projects securely on your lathe. Inside the custom JET molded case you will find: 1x Nickel Plated Chuck 1 inch X 8TPI 1x 190mm Nickel Plated Face Plate with 16 Grip studs 1x Nickel Plated Pin jaws (inside grip range 5-43mm, outside grip range 22-60mm) 1x #1 Round jaws (inside grip range 38-73mm, outside grip range 48-87mm) 1x #2 Round jaws (inside grip range 66-100mm, outside grip range 77-117mm) 1x Internal/external step jaws (inside grip range 8-43mm, outside grip range 20-78mm) 2x Woodworm screw (1/2 and 3/8 inch) 1x T-handle 1x 100mm Hex wrench The Jet Chuck Set (719900) fits JET models JWL-1015, JWL-1221, JWL1440, or any lathe with a 1 inch x 8TPI Spindle Thread. To fit to JET JWL-1640 and JWL-1840 (or any 1-1/4" spindle thread) use the JET Lathe Chuck Adaptor (719903).

Features:

JET CHUCK SET (719900)
Inside the custom JET molded case you will find:

• Nickel Plated Chuck 1 inch X 8TPI
• 190mm Nickel Plated Face Plate with 16 Grip studs
• Nickel Plated Pin jaws (inside grip range 5-43mm, outside grip range 22-60mm)
• #1 Round jaws (inside grip range 38-73mm, outside grip range 48-87mm)
• #2 Round jaws (inside grip range 66-100mm, outside grip range 77-117mm)
• Internal/external step jaws (inside grip range 8-43mm, outside grip range 20-78mm)
• Woodworm screws (1/2 and 3/8 inch)
• T-handle and Hex wrench The JET Chuck Set (719900) fits JET models JWL-1015, JWL-1221, JWL1440, or any lathe with a 1inch x 8TPI Spindle Thread

JET Woodturning Carbide Chisels 6 Piece Set - (719901)

To compliment our extensive line of woodturning lathes, JET is introducing the Woodturning Chisel Set. Inside the custom JET wooden case you will find: 1x 11 inch Anodized Aluminum Handle 1x 10.5 inch Anodized Aluminum Handle Extension 1x Stainless Steel Tool Shaft 1x 11mm Square Carbide Cutting Blade 1x 11mm Square-Arc Carbide Cutting Blade 1x 12mm Round Carbide Cutting Blade 1x 28mm Carbide Diamond Cutting Blade 1x Star Key 1x Hex Wrench

Features:

JET Woodturning Carbide Hollowing Chisels Set 5PC

To compliment our extensive line of woodturning lathes, JET is introducing the Woodturning Hollowing Chisel Set. Inside the custom JET wooden case you will find: 1x 11 inch Anodized Aluminum Handle 1x 10.5 inch Anodized Aluminum Handle Extension 3x Tool Shafts 3x 8.9mm Round Carbide Cutting Blades 1x Star Key 1x Hex Wrench

Features:

#1 BEST SELLING CHUCK
SUPER NOVA 2 CHUCK

This powerful and solid chuck is perfect for use on lathes with up to 20 inch/508mm swing. Brilliant all around geared chuck for a majority of users.

*** Chucks Require Seperate Insert for Final Insulation & Additional Jaws Sizes are Available ***

Easy Rougher - The Next Step in Woodturning

The Easy Rougher is a carbide cutter woodturning tool that addresses fatigue, safety, and efficiency like no other type of tool on the market. Designed to be kept flat on the tool rest and level to the floor, the Easy Rougher will effortlessly hog away massive amounts of material for any woodturning process without the need for sharpening. The tool design provides support directly beneath the cutting edge transferring the cutting pressure downward allowing the lathe to take the pounding that you would normally suffer through when using a conventional bowl gouge for roughing. No more white knuckling a bowl gouge.

• Cuts left, right and straight in without changing approach angle
• Truly deeper cuts up to 1 inch off the diameter in one pass with the Full Size Rougher.
• Requires very little physical strength or exertion
• Your feet and hips stay in nearly the same position for the blank roughing process.
• Very minimal handle bouncing on irregular shaped blanks
• Reduced kick-back or sucking into work piece
• Available Chip Deflector keeps most projectiles away from the face and neck
• No intimidating cutting angles to learn and remember
• No bevels to ride
• No fear of a dangerous catch

Easy Finisher - Yet Another Innovation in Woodturning

With another step forward in woodturning innovation, Easy Wood Tools now offers you a tool to take up where the Easy Rougher leaves off. The Easy Finisher has a round carbide cutter perfect for doing the inside work on smaller bowls and for larger coves on spindle work. Our carbide inserts are made in the USA and we are pleased to offer you a tool that is 100 percent made in America.

If you own one of our existing Easy Roughers, you well know by now that we deliver even more than we advertise, as hard as is was for you to believe before your first purchase. I assure you the productivity of this tool will exceed your highest expectations. You just can not predict the possibilities or joy this tool will provide you. In testing the prototypes for this new design, I found myself creating forms that were never even on my list to try because the dangers and complications of existing tools were just not worth the trouble.  Craig Jackson, Founder

Like the other Easy tools, the Easy Finishers are designed to be used with the tool rest set so that when the tool is held level the top of the cutter is on center. Then just keep it level to the floor and flat on the tool rest for all types of cuts... it does not get any easier than that. There are no complicated approach angles, or bevels to ride. The design of this tool allows the Easy Finisher to effortlessly cut from the center of a bowl out to the rim OR from the rim to the center! All without changing any angles whatsoever. You just stand in one spot and cut coming and going until you get to the shape you want.

The Easy Finisher utilizes the same carbide cutter technology as the Easy Rougher that reduces strain and fatigue, improves productivity, and virtually eliminates sharpening. It comes loaded with one round cutter and when it gets dull, you just rotate the cutter for a fresh cut. Please note: The round cutters are not interchangeable with the carbide cutters on the Easy Rougher tool bars.

When the cutter eventually gets dull, just loosen the retaining screw and rotate cutter about 1/4 of a turn, then re-tighten the screw.

We promise this tool will open up a whole new level of design possibilities for your craft and it will exceed your expectations. If not, return for a complete refund.

Replacement carbide cutter number is engraved right on the tool bar.

Available in four sizes - Mini, Mid-Size, Full-Size and Pro. See purchase page for all products, sizes and accessories.

Easy Rougher - The Next Step in Woodturning

The Easy Detailer tools really pick up where other tools leave off and provide another level of woodturning creativity as the unique diamond cutter shape fits in tight places where the cutters on the other tools will just not fit.

These tools were designed for the primary purpose of doing the small intricate work and cutting final details on your projects such as small coves and beads on both spindle and bowl work. They are also very handy for cutting chuck tenons and making inside reverse angle cuts for inside chucking bowls with dovetail jaws. You may find they work well for hogging your green wood projects too.

The Easy Detailers are engineered to cut going straight in employing just the nose of the tool.

The Easy Detailer tools are engineered with a reduced relief angle to the long cuttings edges making the long edges less aggressive when held in contact with the wood as the nose of the tool is cutting. In use, the long edge is intended to perform as a "control surface" and serve to be in contact with the wood just behind the cut; much like a bevel is being rubbed.

For safety reasons, avoid plunging the tool so deep into the work at once to the depth you would have both sides of the cutter in contact with the wood too greatly at the same time. This could cause too much force at once and lead to binding of the tool in the groove.

Each diamond-shaped Easy Detailer cutter is engineered to fit all size Detailer tools in our current product line. When the cutter eventually dulls, just loosen the retaining screw and rotate cutter, then re-tighten the screw.

Replacement carbide cutter number is engraved right on the tool bar.
Available in four sizes - see purchase page for all products, sizes and accessories.
