Baileigh H-120 Bender

s-h alt

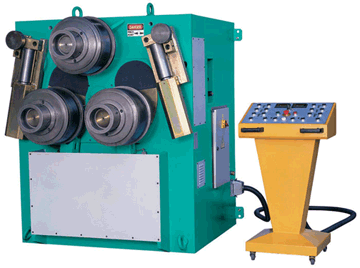

Model H-120 Bender

Standard Equipments

  • Three Rolls hydraulic planetary powered separately
  • Horizontal and Vertical Working Position
  • Mobile Control Panel
  • Hardened Standard Rolls
  • Hardened and Grinded Shafts
  • Digital Read-Outs (2 pcs.)
  • 3-Axis Hydraulic Lateral Guide Rollers
  • Standard Rolls
  • Users manual book
  • Infinitively speed variation system

SPECIFICATIONS

Shaft Diameter 5"
Upper Roll Diameter 15-3/8"
Lower Roll Diameters 15-3/8"
Shaft Speed 7 rpm
CAPACITIES:
Flat Bar Hard Way 5" x 1" @ 24" Radius Min.
Flat Bar Easy Way 8"x 2 " @ 20" Radius Min.
Solid Bar 3-1/4" @ 18" Radius Min.
"I" Beam 8" x 4" @ 20" Radius Min.
Angle Iron Leg Out 5" x 1/2" @ 24" Radius Min.
Angle Iron Leg In 4" x 1/2" @ 22" Radius Min.
Pipe Schedule 40 3" @ 24" and 4" @ 32" Radius Min.
Tubing Round 4" x 14 ga. @ 26" Radius Min.
Hardened Rolls for standard profiles included with machine.
Operates vertical/horizontal - hydraulic adjustment of botton rolls
ELECTRICAL EQUIPMENT AND CONTROLS
575 volt / 3 ph. / 60cy. 20HP
Weight 9,900 lbs.
Dimensions (l x w x h) 55" x 55" x 67"

Call 1-800-458-3687 For Special Pricing

Optional Accessories

  • All kinds of pipe, tube, profile rolls and I-U beam attachments are available to supply from our company
